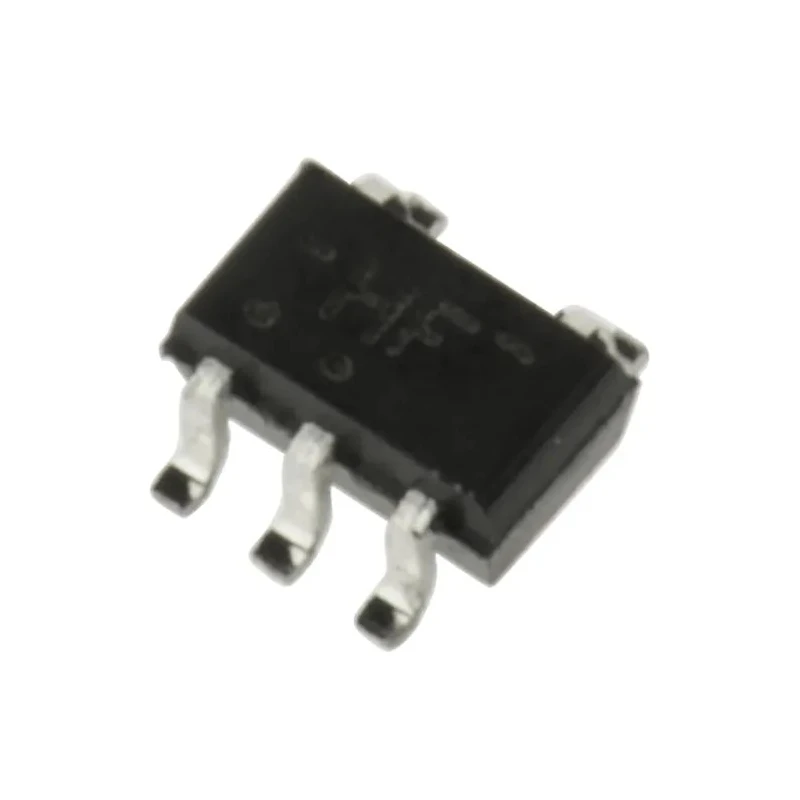

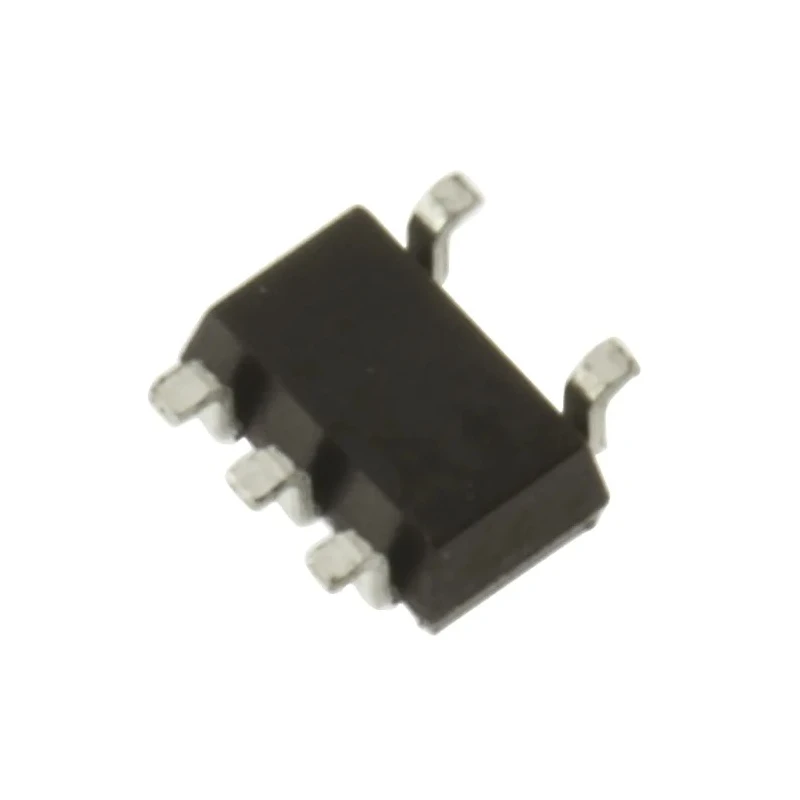

Nexperia Inverter Logic IC Schmitt Trigger Input 5-Pin TSSOP 2-6V 74HC1G14GW,125

Nexperia 74HC1G14GW,125 inverter logic IC with Schmitt trigger input is designed for high-speed CMOS logic applications operating within a voltage range of 2 to 6 V. Housed in a 5-pin TSSOP surface mount package, it provides a compact and reliable solution for digital circuit inverting functions.

This device includes one inverter element per chip featuring an inverting Schmitt trigger input, which offers noise immunity and improved switching characteristics in electronic designs.

The maximum propagation delay time of 190 ns enables fast signal processing suitable for timing-critical industrial and commercial electronics applications. Supported temperature operation ranges from -40°C to 125°C, enabling use in industrial temperature environments.

The IC delivers maximum high-level output current at -2.6 mA and maximum low-level output current at 2.6 mA, consistent with HC logic family standards ensuring compatibility with CMOS inputs and outputs.

Package dimensions of 2.25 mm length by 1.35 mm width and 1 mm height make this component suited for high-density surface mount PCB layouts. The surface mount design supports automated manufacturing processes in electronics production.

Typical applications include logic inverters in industrial control systems, embedded controllers, signal conditioning circuits, and other electronic components in manufacturing and laboratory instruments.

Manufactured in Malaysia, this product conforms to the 74HC1G14 series family standards and is supplied new in reel packaging optimized for assembly efficiency. This logic IC operates with a supply voltage range of 2 to 6 volts.

It offers a single inverter element per chip in a 5-pin TSSOP package. Maximum propagation delay is rated at 190 nanoseconds ensuring fast switching. The device supports operation between -40°C to 125°C temperature range.

Its high and low output current capabilities are -2.6 mA and 2.6 mA respectively. The logic family is HC, compatible with input and output CMOS levels. Compact package dimensions include a length of 2.25 mm, width of 1.35 mm and height of 1 mm.

The IC is surface mountable, facilitating automated PCB assembly. The product is manufactured in Malaysia maintaining quality standards. Explore the wide range of semiconductor and inverter ICs at EnvMart for reliable electronics components.
