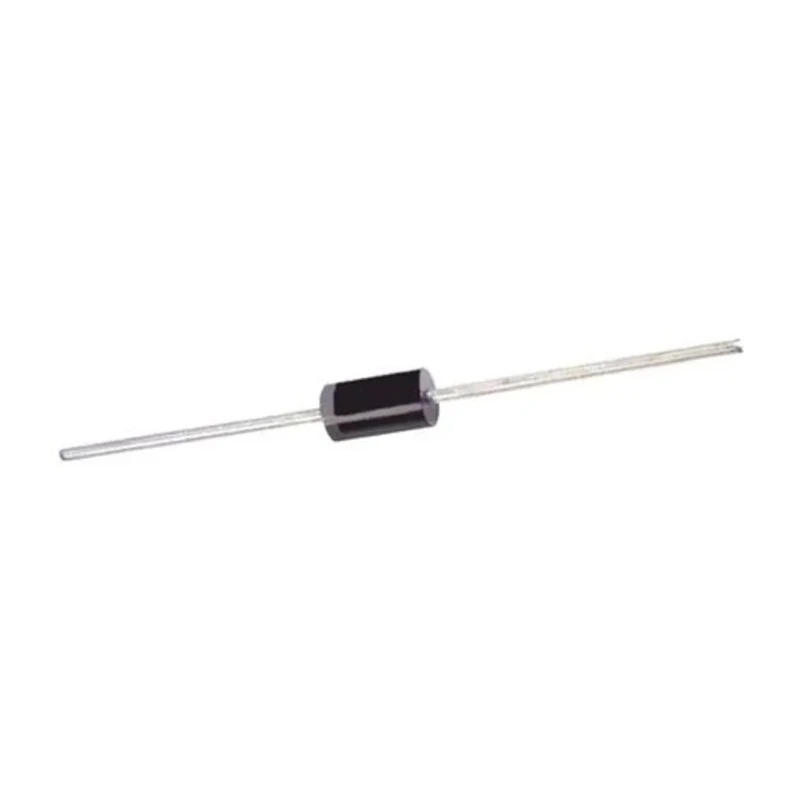

onsemi 20 V 3 A Schottky Diode 2-Pin DO-201AD 1N5820G
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 5.3mm |
| Brand | onsemi |
| Height | 9.5mm |
| Length | 3.57mm |
| Model | 1N5820G |
| Width | 0.45mm |
| Mount Type | Through Hole |
| Series | 1N5820 |
| Maximum Operating Temperature | 125°C |
| Package Type | DO-201AD |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 20V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 20mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 80A |
| Maximum Forward Voltage Vf | 850mV |
| Peak Reverse Recovery Time trr | 1.6ns |
Key Features
- This diode features a maximum continuous forward current of 3 amperes.
- It has a peak reverse repetitive voltage rating of 20 volts.
- The package type is DO-201AD, suitable for through-hole mount applications.
- It ensures fast switching with a peak reverse recovery time of 1.6 nanoseconds.
- The maximum operating temperature reaches up to 125 degrees Celsius.
- The diode offers a low forward voltage drop of 850 millivolts for efficient power conversion.
- Its small dimensions of 9.5mm height, 3.57mm length, and 0.45mm width enable compact circuit design.
- The device includes epoxy molded case construction and lightweight packaging of 11.7 milligrams.
Product Description
onsemi 1N5820G Schottky Diode 20 V 3 A DO-201AD is a through-hole mounted semiconductor diode suitable for low voltage and high frequency rectification. It features a Schottky barrier principle that provides low forward voltage drop and reduced reverse current, making it ideal for efficient power management in electronic circuits.
The diode supports a maximum continuous forward current of 3 A and a peak reverse repetitive voltage of 20 V, suitable for a wide range of applications such as polarity protection and freewheeling in switching power supplies. The fast peak reverse recovery time of 1.6 ns aids in high-speed switching contexts.
Constructed in a DO-201AD package with epoxy molding, the device is robust for automated board assembly with mechanical stress protection and lightweight design at just 11.7 mg. The compact physical dimensions (9.5mm height, 3.57mm length, 0.45mm width) allow for easy integration in space-constrained circuits.
This diode features a maximum continuous forward current of 3 amperes. It has a peak reverse repetitive voltage rating of 20 volts. The package type is DO-201AD, suitable for through-hole mount applications. It ensures fast switching with a peak reverse recovery time of 1.6 nanoseconds.
The maximum operating temperature reaches up to 125 degrees Celsius. The diode offers a low forward voltage drop of 850 millivolts for efficient power conversion. Epoxy molded case provides excellent environmental and mechanical protection.
Lightweight packaging assists automated placement and reduces board load. Lead-free construction supports environmental compliance. Ideal for industrial electronics, power supplies, and automotive applications where Schottky diodes improve efficiency.
This onsemi diode is a reliable choice for engineers needing a proven Schottky diode in discrete semiconductor applications. It supports industrial, laboratory, and manufacturing uses where efficient, fast, low-voltage rectification is required. Explore more semiconductor devices compatible with your electronic components requirements through EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this diode is 3 amperes.
This model has a peak reverse repetitive voltage rating of 20 volts.
The diode is packaged in a DO-201AD type, suitable for through-hole mounting applications.
It features a fast peak reverse recovery time of 1.6 nanoseconds.
The diode has dimensions of 9.5mm in height, 3.57mm in length, and 0.45mm in width.
The maximum operating temperature reaches up to 125 degrees Celsius.
The minimum operating temperature is -65 degrees Celsius.
It offers a low forward voltage drop of 850 millivolts.
The peak non-repetitive forward surge current is rated at 80 amperes.
This model is a Schottky rectifier, which provides low forward voltage drop and reduced reverse current.
The diode has a lightweight packaging of 11.7 milligrams, which assists in automated placement.
It is suitable for applications such as polarity protection and freewheeling in switching power supplies.
