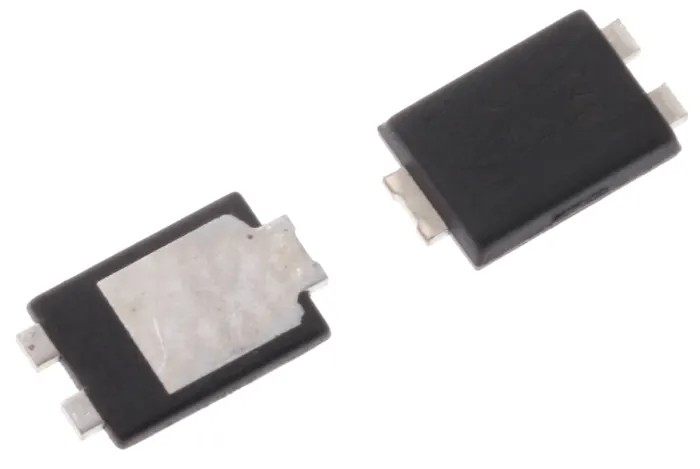

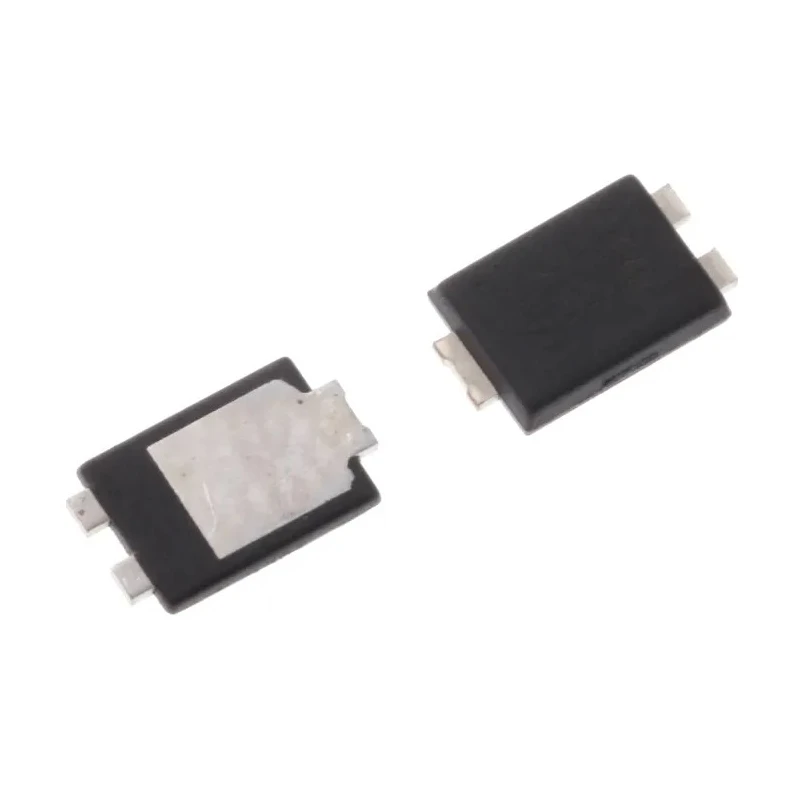

DiodesZetex 40 V 10 A Schottky Diode Surface Mount PowerDI5 Package 3-Pin PDS1040-13
Specifications
| Country of Origin | China |
|---|---|
| Brand | DiodesZetex |
| Height | 1.15mm |
| Length | 4.05mm |
| Model | PDS1040-13 |
| Width | 5.45mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 180°C |
| Package Type | PowerDI5 |
| Minimum Operating Temperature | -65°C |
| Standards/Approvals | FBI |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 10A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 50mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 275A |
| Maximum Forward Voltage Vf | 510mV |
Key Features
- Offers maximum continuous forward current of 10 A for high current applications.
- Peak reverse repetitive voltage of 40 V ensures reliable blocking capability.
- Low maximum forward voltage of 510 mV reduces power loss in circuits.
- Supports a wide operating temperature range from -65°C to 180°C.
- Peak non-repetitive forward surge current of 275 A for transient robustness.
- Complies with Automotive Standard AEC-Q101 for automotive reliability.
- Designed for surface mount installation on printed circuit boards.
- Suitable for industrial, automotive, and power electronics applications.
Product Description
DiodesZetex PDS1040-13 is a high-performance Schottky diode designed for efficient power rectification in electronic circuits. It features a 3-pin PowerDI5 surface mount package optimized for compact layouts and automated assembly.
The diode delivers a maximum continuous forward current of 10 A, making it suitable for high current power supplies, automotive systems, and industrial equipment. It supports a peak reverse repetitive voltage of 40 V, providing durable blocking capability against voltage surges.
Its low forward voltage of 510 mV minimizes conduction losses, improving overall circuit efficiency and thermal management. The component withstands a broad operating temperature range from -65°C to 180°C, accommodating harsh environments in automotive and industrial applications.
With a peak non-repetitive forward surge current rating of 275 A, the diode offers robust transient handling during sudden load changes or switching events. Its compliance with the Automotive Standard AEC-Q101 confirms its reliability for automotive electronics use cases.
The compact physical dimensions of 5.45 mm width, 4.05 mm length, and 1.15 mm height enable space-saving PCB designs. This surface mount diode is ideal for discrete semiconductor applications requiring efficient rectification and power conversion.
Maximum continuous forward current of 10 A for power electronics. Peak reverse repetitive voltage of 40 V for voltage blocking. Low maximum forward voltage of 510 mV reduces energy loss. Wide operating temperature range from -65°C to 180°C.
High peak surge current of 275 A for transient durability. Automotive AEC-Q101 standard compliant for reliability. Compact PowerDI5 surface mount package in 3-pin configuration. Robust solution for industrial, laboratory, automotive, and power supply systems.
This DiodesZetex PDS1040-13 Schottky diode is ideal for engineers and technicians seeking a reliable, efficient power semiconductor component. Explore related semiconductor devices and power rectifiers in the Electronics & Electricals category at EnvMart to find comprehensive solutions for your design and manufacturing needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 10 A, suitable for high current applications.
It has a peak reverse repetitive voltage rating of 40 V, ensuring reliable blocking capability against voltage surges.
The maximum forward voltage is 510 mV, which helps reduce power loss in circuits.
This diode supports a wide operating temperature range from -65°C to 180°C, accommodating various environmental conditions.
The peak non-repetitive forward surge current rating is 275 A, providing robust transient handling capabilities.
It is designed in a PowerDI5 surface mount package, optimized for compact layouts and automated assembly.
This model complies with the Automotive Standard AEC-Q101, confirming its reliability for automotive applications.
The dimensions are 5.45 mm in width, 4.05 mm in length, and 1.15 mm in height.
The PDS1040-13 has a pin count of 3, suitable for various circuit designs.
It is a Schottky rectifier, designed for efficient power rectification in electronic circuits.
The peak reverse current rating is 50 mA, indicating the maximum allowable reverse current.
This diode is suitable for industrial, automotive, and power electronics applications, providing efficient rectification and power conversion.
