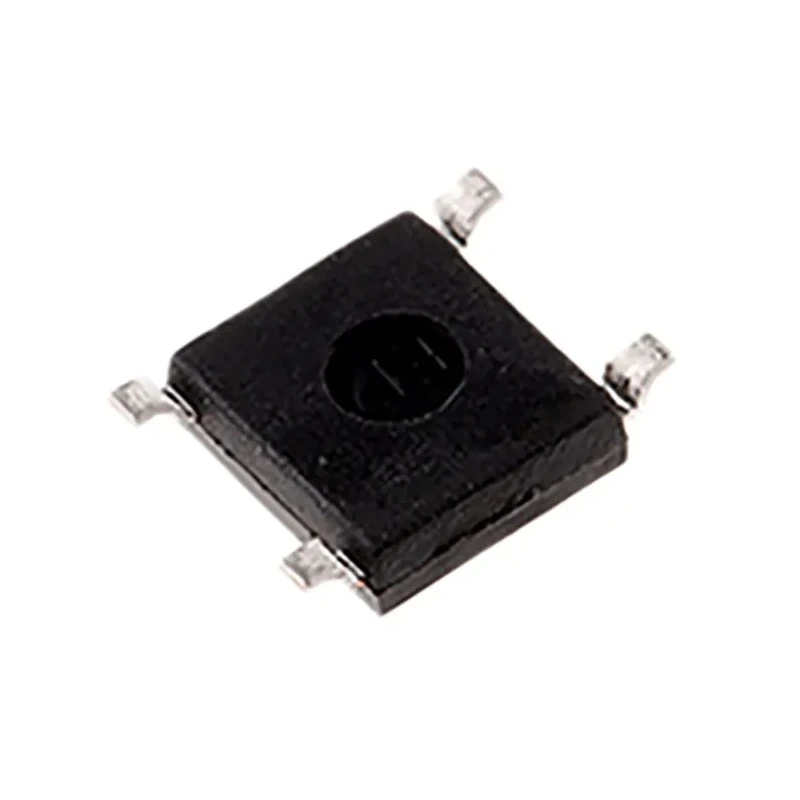

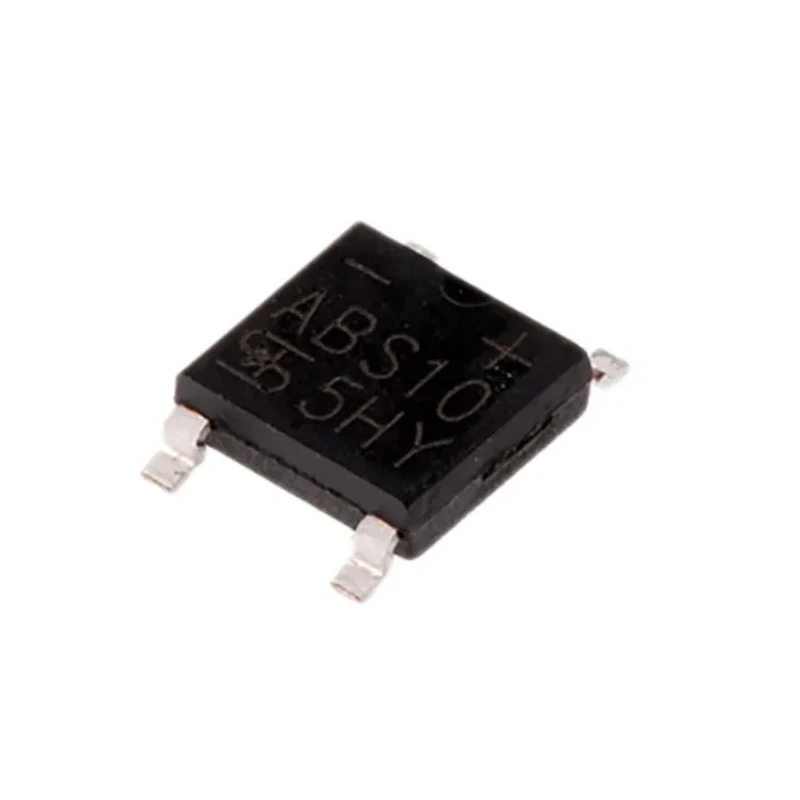

Taiwan Semiconductor Bridge Rectifier 1000 V 30 A 4-Pin Single ABS10

Taiwan Semiconductor ABS10 Bridge Rectifier is a surface mount device designed for converting alternating current (AC) to direct current (DC) in electronic circuits, commonly used in power supply applications. This 4-pin single configuration rectifier is built in a molded ABS plastic body, providing durability and efficient heat dissipation during operation. It supports a peak reverse repetitive voltage of 1000 V and a forward current of 1 A, making it suitable for moderate power electronic designs.

The rectifier features a glass passivated junction that enhances its reliability and operational stability over a wide temperature range from -55°C to 150°C. The molded package and small footprint (5.1 mm length, 4.5 mm width, 1.6 mm height) are optimized for printed circuit board (PCB) reflow soldering processes, ensuring ease of assembly for manufacturing efficiency.

Its peak non-repetitive forward surge current rating of 30 A allows it to withstand transient surges common in power electronics without damage. The device conforms to the automotive standard AEC-Q101, ensuring suitability for automotive electronic systems requiring stringent quality levels.

This bridge rectifier is ideal for industrial, automotive, consumer electronics, and power supply manufacturing applications where converting AC to DC with high reliability and compactness is critical. Its low forward voltage drop of 950 mV and low peak reverse current of 150 μA improve circuit efficiency by minimizing energy losses.

Common uses include power rectification in adapters, battery chargers, motor controllers, and other electronic equipment requiring stable DC output. The ABS10 series by Taiwan Semiconductor offers a proven design for durable, reliable bridge rectification, supporting modern electronics manufacturing demands.

This bridge rectifier provides a peak reverse repetitive voltage of 1000 V. It supports a forward current rating of 1 A and a peak non-repetitive forward surge current of 30 A. The device features a compact ABS package with 4 pins suitable for PCB mounting.

Operational temperature range is from -55°C to 150°C, suitable for harsh environments. Features glass passivated junction ensuring long-term stability and reliability. Complies with automotive standard AEC-Q101, ensuring quality for automotive applications.

Ideal for converting AC input to DC output in power supply circuits. Designed with a molded plastic body for durability and heat resistance. Compact dimensions: length 5.1 mm, width 4.5 mm, and height 1.6 mm. Peak forward voltage is 950 mV with a peak reverse current of 150 μA enhancing efficiency.
