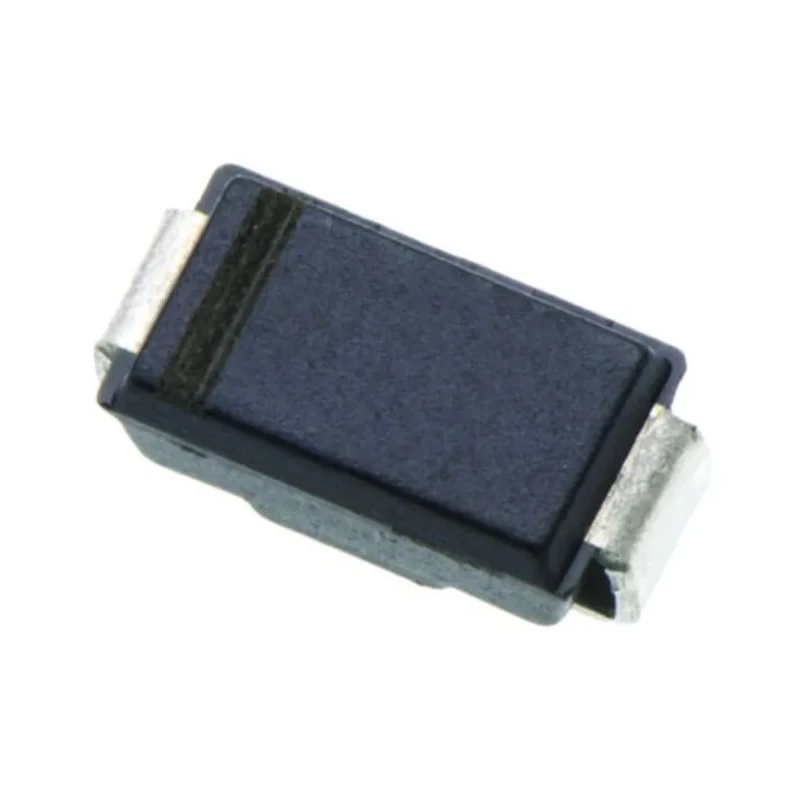

onsemi Schottky Diode 40 V 1 A 2-Pin Surface Mount DO-214AC Package SS14
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 2.2mm |
| Length | 4.75mm |
| Model | SS14 |
| Width | 2.95mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 125°C |
| Package Type | DO-214AC |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 10mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 40A |
| Maximum Forward Voltage Vf | 500mV |
Key Features
- Offers a maximum continuous forward current of 1 ampere for reliable performance.
- Features low maximum forward voltage of 500 millivolts to minimize power loss.
- Supports a peak reverse repetitive voltage of 40 volts for effective blocking of reverse currents.
- Compact dimensions of 4.75 mm length, 2.95 mm width, and 2.2 mm height suit space-constrained circuit designs.
- Operates safely in a temperature range from -65°C to 125°C for industrial-grade reliability.
- Schottky diode with single diode configuration ensures fast switching and low forward voltage drop.
- Surface mount technology (SMT) package type DO-214AC supports automated assembly.
- Peak non-repetitive forward surge current rating of 40 amperes enables short transient tolerance.
Product Description
onsemi SS14 Schottky Diode is a high-performance semiconductor device designed for industrial, electronic power, and signal rectification applications. This surface mount diode comes in a space-efficient DO-214AC package and provides a maximum continuous forward current of 1 ampere at voltages up to 40 V.
Featuring a Schottky barrier rectifier design, the SS14 offers low forward voltage drop of 500 mV, ensuring efficient energy conversion with minimal heat generation. Its robust specifications including a peak reverse repetitive voltage of 40 V and peak forward surge current of 40 A make it suitable for demanding power supply circuits, switch mode power supplies, and automotive electronics that require reliable rectification.
Physically compact with dimensions of 4.75 mm in length, 2.95 mm in width, and 2.2 mm in height, the diode allows for dense circuit board layouts with surface mount packaging facilitating automated manufacturing. Its operating temperature range from -65°C to 125°C supports use in harsh industrial environments.
This component does not carry specific industry approvals or automotive certifications but complies with general semiconductor standards. The SS14 model from onsemi is widely used in electronic designs requiring efficient rectification and low forward voltage drop with fast switching capabilities.
Maximum continuous forward current: 1 A. Peak reverse repetitive voltage: 40 V. Maximum forward voltage: 500 mV. Operating temperature: -65°C to 125°C. Package type: DO-214AC (Surface mount). Peak non-repetitive forward surge current: 40 A.
Pin count: 2. Dimensions: 4.75 mm length, 2.95 mm width, 2.2 mm height.
The onsemi SS14 Schottky diode is suited for electronics manufacturing, industrial power supplies, automotive design, and general semiconductor applications requiring a reliable rectifier diode solution.
