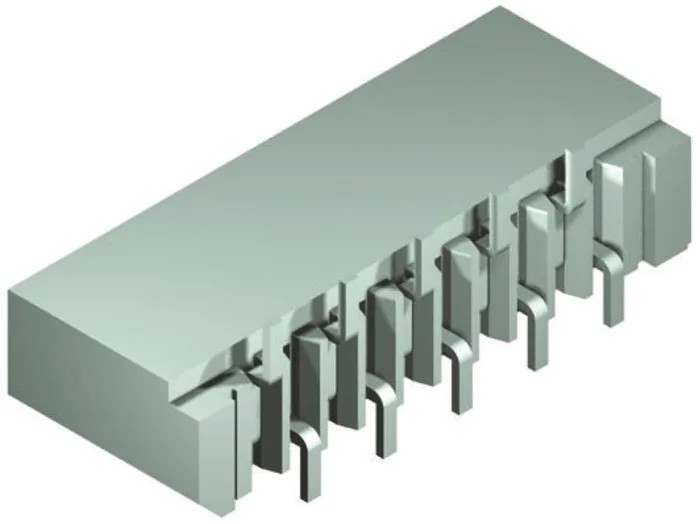

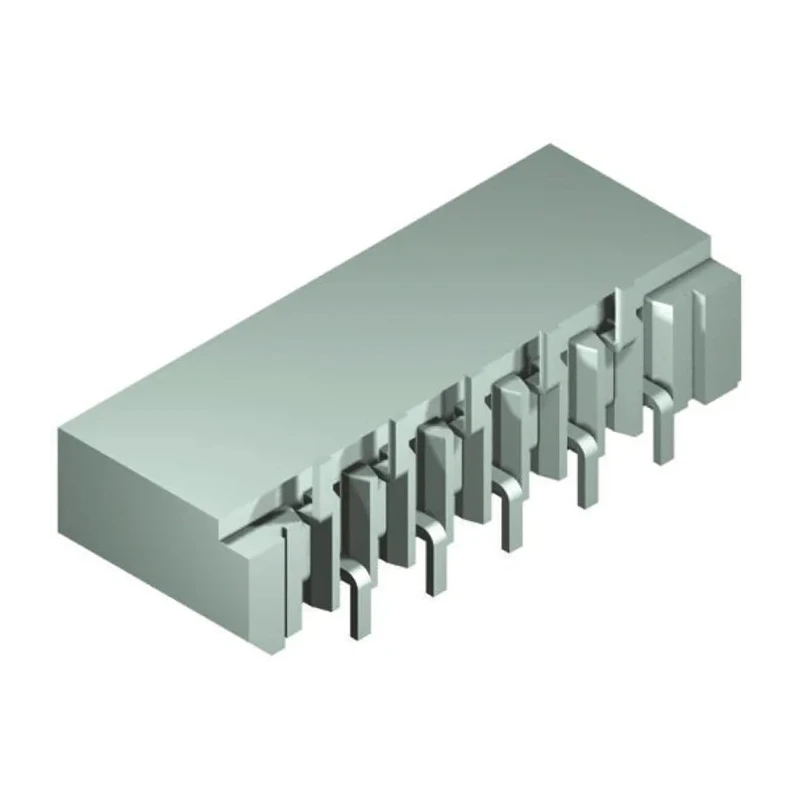

Molex 1 mm Pitch 10 Way Straight Female FPC Connector, Solder 52808-1071
Specifications
| Country of Origin | Malaysia |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Orientation | Straight |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Thermoplastic |
| Contact Material | Phosphor Bronze |
| Series | 52808 |
| Termination Type | Solder |
| Maximum Operating Temperature | 80°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 10 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | Non-ZIF |
Key Features
- Features a 1.00 mm pitch and 10 contact points for compact connectivity.
- Utilizes phosphor bronze contact material with tin over nickel plating for durable electrical contact.
- Connector orientation is straight and terminates via soldering with a Non-ZIF insertion force.
- Supports operating voltage up to 125V and current of 500mA suitable for low power electronic applications.
- Equipped with a locking mechanism and chamfered housing for secure mating and orientation.
- Operates reliably in ambient temperatures from -20°C up to 80°C.
- Housing made from thermoplastic material ensuring insulation and durability.
- Designed as a surface mount type connector compatible with PCB mounting.
Product Description
Molex 52808-1071 is a high-quality 1 mm pitch 10 way straight female FPC connector designed for signal and data transmission across various electronic applications requiring compact and reliable connections.
This connector features surface mount technology with a phosphor bronze contact material plated with tin over nickel to enhance conductivity and corrosion resistance. The solder termination style provides strong and permanent electrical contact, suitable for demanding industrial use.
The connector includes a locking mechanism and chamfered housing that ensures correct orientation and secure mating, reducing risk of connection failure during operation or cable movement.
Operating within a temperature range of -20°C to 80°C and supporting a voltage rating of 125V and current rating of 500mA, it is suitable for a wide variety of low-power electronic assemblies.
Applications for this FPC Connector span automotive navigation and audio systems, digital cameras, home security equipment, tablet and notebook PCs, medical monitoring devices, GPS units, smartphones, and tablets.
1.00 mm pitch with 10 contacts ensures compact and reliable interconnection. Phosphor bronze contacts with tin-nickel plating resist wear and corrosion. Surface mount solder termination supports stable PCB mounting. Locking mechanism and chamfered housing promote secure and correct cable insertion.
Non-ZIF insertion force type offers ease of assembly while maintaining electrical integrity. Thermoplastic housing provides durability and electrical insulation. Temperature range from -20°C to 80°C accommodates various environmental conditions.
Suitable for automotive, consumer, medical, and mobile electronics industries. Staggered contact design improves solder joint reliability during manufacturing. Compact size saves space in densely populated electronic assemblies.
This product is manufactured in Malaysia under Molex's rigorous quality standards, ready to support industrial, laboratory, manufacturing, and commercial electronic assembly needs.
Explore more advanced electronic connectors and reliable FPC components in the Electronics & Electricals category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector is 1.00 mm, allowing for compact connectivity in electronic applications.
It supports a maximum operating voltage of 125V, making it suitable for low power electronic applications.
The current rating for the Molex 52808-1071 is 500mA, which is appropriate for various low-power uses.
This connector utilizes a solder termination type, providing strong and permanent electrical contact.
The contact material is phosphor bronze, plated with tin over nickel, while the housing is made from thermoplastic material.
It operates reliably in ambient temperatures from -20°C to 80°C, accommodating various environmental conditions.
This connector features 10 contacts, designed for efficient signal and data transmission.
The orientation of this model is straight, which aids in secure mating and orientation during installation.
Yes, it is designed as a surface mount type connector, compatible with PCB mounting.
This connector is suitable for various industries, including automotive, consumer electronics, medical, and mobile electronics.
Yes, it is equipped with a locking mechanism that ensures secure mating and correct orientation during use.
This connector is manufactured in Malaysia, adhering to Molex's quality standards.
