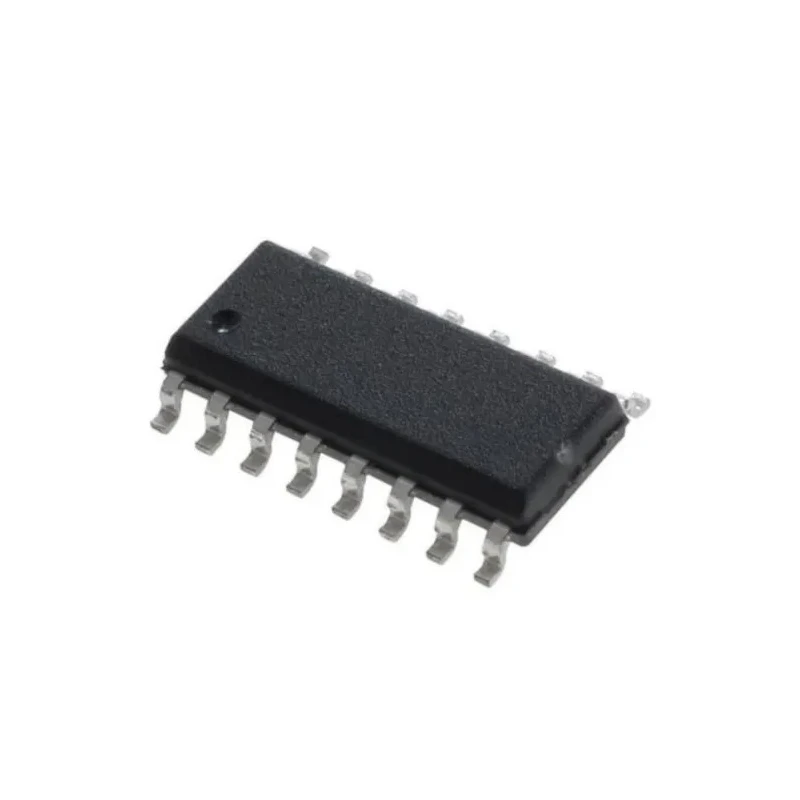

Vishay Analogue Switch 4 CMOS Quad SPST 16-Pin SOIC DG212BDY-T1-E3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.55mm |
| Length | 10mm |
| Model | DG212BDY-T1-E3 |
| Width | 4mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | DG212B |
| Configuration | Quad SPST |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS |
| Pin Count | 16 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 22V |
| Logic Family | CMOS |
| Minimum Supply Voltage | -22V |
| Maximum On State Resistance | 200Ω |
Key Features
- Supports CMOS and TTL logic levels for versatile control compatibility.
- Contains four independent single-pole single-throw switches for efficient multiplexing.
- Operates with supply voltage range from -22V to 22V for broad signal handling.
- Maximum on-state resistance of 200 ohms ensures predictable signal attenuation.
- Designed for operation across -40°C to 85°C ambient temperatures for industrial use.
- Compact 16-pin SOIC package promotes efficient PCB space utilization.
- Ideal for multiplexing audio, analogue sensors, and signal gating in instrumentation devices.
- Suitable for mixed-signal controllers requiring CMOS/TTL interface.
Product Description
Vishay DG212BDY-T1-E3 analogue switch is a highly reliable semiconductor device featuring four independent single-pole single-throw (SPST) analogue switch elements implemented using CMOS technology. Packaged in a 16-pin small-outline integrated circuit (SOIC) surface-mount format, it enables compact and automated assembly on printed circuit boards.
Designed to handle bipolar supply voltages from -22V to 22V, this device is capable of routing analogue signals in mixed-signal systems with low distortion. The maximum on-state resistance of 200 ohms guarantees stable signal switching characteristics, which is essential in accurate signal processing tasks.
Compatible with both CMOS and TTL logic families, the DG212BDY-T1-E3 provides flexibility for digital control interfaces commonly found in industrial and laboratory equipment. Rated for use in ambient temperatures ranging from -40°C to 85°C, it is suitable for standard industrial environments requiring durable and consistent switching performance.
This analogue switch device is essential for multiplexing and signal gating applications involving audio signals, analogue sensor data, and other low-frequency signals. Its compact 16-pin SOIC package allows efficient PCB layout in constrained spaces, facilitating integration into complex electronic assemblies.
The product is RoHS compliant, ensuring adherence to environmental directives by restricting hazardous substances in its manufacture. Typical applications include instrumentation, laboratory measurement equipment, mixed-signal control systems, and industrial automation where multiple analogue signals need effective routing and switching.
Supports CMOS and TTL logic for broad controller compatibility. Four independent channels deliver compact signal routing. Handles ±22V supplies enabling wide input/output range. Maximum on-state resistance of 200Ω for predictable signal attenuation.
Rated for operation from -40°C to 85°C for varied industrial environments. 16-pin SOIC surface-mount package for efficient PCB integration. Ideal for multiplexing audio, analogue sensor lines, and gating signals in lab equipment.
Optimised for mixed-signal controller usage requiring CMOS/TTL interface. RoHS compliant for environmental safety. Explore more semiconductor and logic IC products at EnvMart for advanced industrial and laboratory automation solutions.
Explore more products in our Multiplexer & Demultiplexer ICs category.
