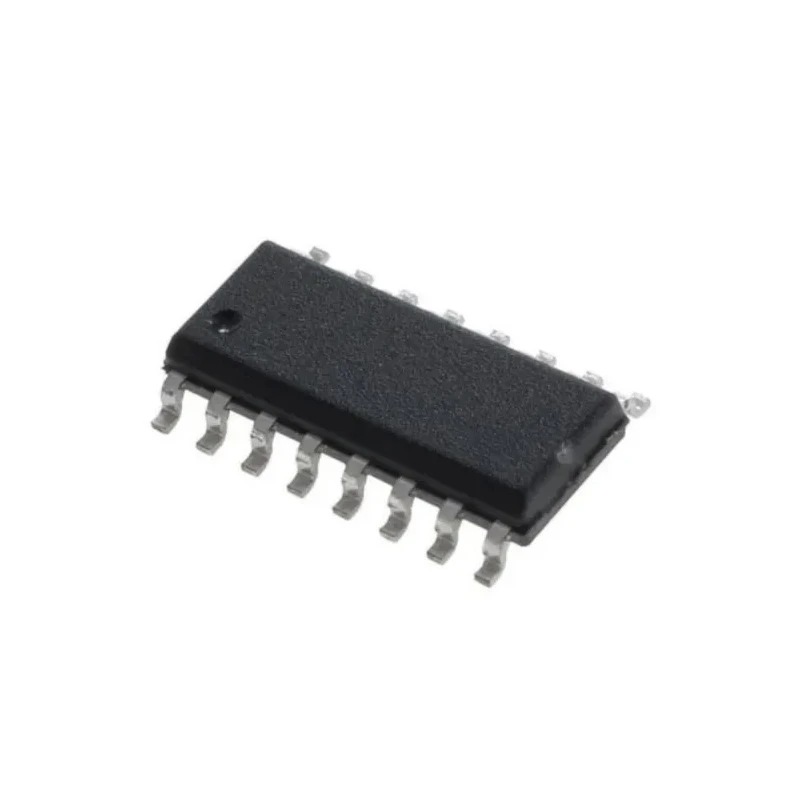

Vishay Analogue Switch 4 CMOS Quad SPST 16-Pin SOIC 44V Maximum Supply Voltage DG441DY-E3
Specifications
| Country of Origin | India |
|---|---|
| Brand | Vishay |
| Height | 1.55mm |
| Length | 10mm |
| Model | DG441DY-E3 |
| Width | 4mm |
| Mount Type | Surface |
| Output type | CMOS/TTL |
| Series | DG441 |
| Configuration | Quad SPST |
| Maximum Operating Temperature | 85°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -40°C |
| Standards/Approvals | RoHS, REACH |
| Pin Count | 16 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 44V |
| Logic Family | CMOS |
| Maximum On State Resistance | 100Ω |
Key Features
- Operates with a maximum supply voltage of 44 volts.
- Features low on-state resistance of 100 ohms facilitating accurate signal switching.
- Designed for operation within temperature range of -40°C to 85°C.
- Supports CMOS/TTL output compatible with diverse electronic circuits.
- Compact package dimensions of 10mm length, 4mm width, and 1.55mm height enable easy PCB integration.
- Complies with RoHS and REACH environmental standards.
- Surface mount mount type ideal for automated PCB assembly processes.
- Suitable for applications ranging from test equipment to computer peripherals and portable instruments.
Product Description
Vishay DG441DY-E3 analogue switch features a quad CMOS configuration with four single-pole single-throw (SPST) switches integrated within a 16-pin small outline integrated circuit (SOIC) package.
This device supports a maximum supply voltage of 44 volts and maintains a maximum on-state resistance of 100 ohms, ensuring efficient analogue signal transmission with high accuracy and low power consumption.
Its operating temperature range from -40°C to 85°C makes it suitable for industrial and commercial electronics applications requiring reliability under varying environmental conditions.
The DG441DY-E3 supports CMOS/TTL output, making it compatible with logic families used in a variety of electronic systems including test equipment, computer peripherals, and portable instruments.
Maximum supply voltage: 44V. Low on-state resistance: 100Ω. Temperature range: -40°C to 85°C. Package type: 16-Pin SOIC surface mount. Compliance with RoHS and REACH regulations. Quad SPST CMOS analogue switch configuration.
Compact dimensions allow integration in space-constrained circuit designs. Ideal for industrial, laboratory, communication, and computing applications requiring precise analogue switching. Its surface mount design supports automated manufacturing workflows commonly deployed in modern electronics assembly lines.
For further product options, users can browse Vishay semiconductor components and other related multiplexer and demultiplexer ICs on EnvMart.
Explore more products in our Multiplexer & Demultiplexer ICs category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum supply voltage for this model is 44 volts.
It features a low on-state resistance of 100 ohms, facilitating accurate signal switching.
This model operates within a temperature range of -40°C to 85°C, making it suitable for various environments.
It supports CMOS/TTL output, making it compatible with a variety of electronic circuits.
The compact dimensions are 10mm in length, 4mm in width, and 1.55mm in height.
It features a quad SPST (single-pole single-throw) configuration with four switches in one package.
This model uses a surface mount type, which is ideal for automated PCB assembly processes.
It complies with RoHS and REACH environmental standards.
This device has a total of 16 pins.
It is suitable for applications ranging from test equipment to computer peripherals and portable instruments.
The country of origin for this model is India.
The maximum on-state resistance is 100 ohms, which ensures efficient analogue signal transmission.
