| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 1.12mm |
| Length | 2.69mm |
| Model | BAT54T1G |
| Width | 1.6mm |
| Mount Type | Surface |
| Series | BAT54H |
| Maximum Operating Temperature | 125°C |
| Package Type | SOD-123 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 200mA |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 2μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 600mA |
| Maximum Forward Voltage Vf | 0.4V |
| Peak Reverse Recovery Time trr | 5ns |
| onsemi 60V 2A, Schottky Diode, 2-Pin SOD-123FL NTS260SFGBrand | onsemi |

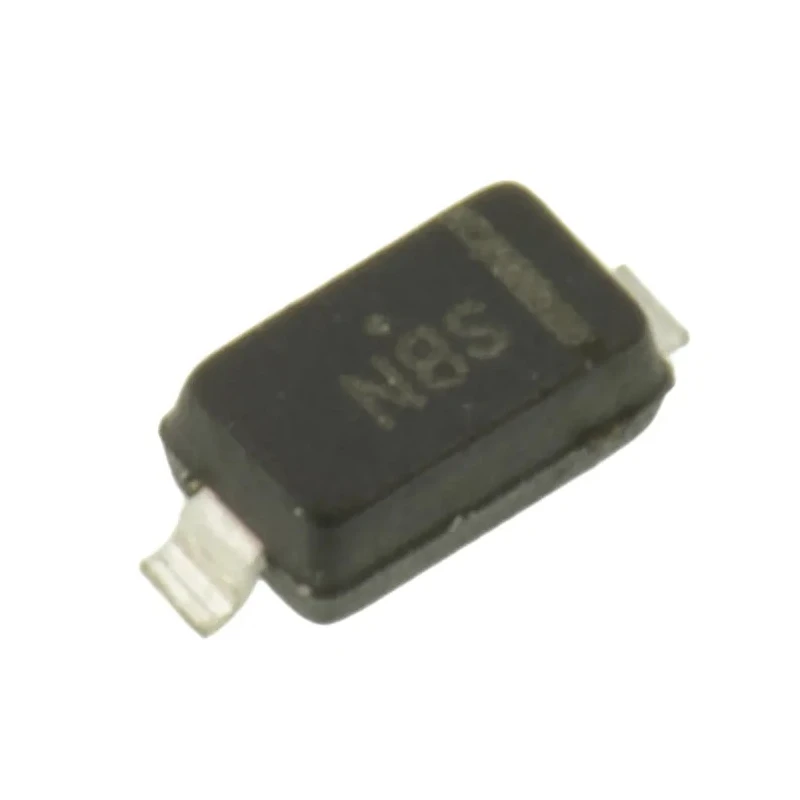

onsemi BAT54T1G is a Schottky Barrier Diode designed for efficient low voltage and high-frequency rectification applications. This diode employs the Schottky barrier principle using a barrier metal to achieve an optimized balance between forward voltage drop and reverse current leakage.
It is supplied in a compact 2-pin SOD-123 surface mount package, making it highly suitable for automated board assembly and applications requiring minimal size and weight, such as portable electronics, power supplies, and automotive circuits.
The diode supports a maximum continuous forward current of 200 mA and withstands a peak reverse repetitive voltage of 30 V. Its maximum forward voltage of 0.4 V helps in reducing power dissipation. The device operates reliably across a temperature range of -55°C to 125°C, meeting stringent automotive standard AEC-Q101 qualifications.
This diode features a peak non-repetitive forward surge current capability of 600 mA, allowing it to handle transient current spikes effectively. Its low peak reverse current of 2 μA and fast peak reverse recovery time of 5 ns ensure efficient operation in switching and protection applications.
onsemi BAT54T1G is epoxy moulded and epoxy case sealed, providing ruggedness and stress protection suitable for demanding industrial, automotive, and commercial electronics applications.
Maximum continuous forward current: 200 mA. Peak reverse repetitive voltage: 30 V. Maximum forward voltage drop: 0.4 V. Peak non-repetitive forward surge current: 600 mA. Operating temperature range: -55°C to 125°C. Compact SOD-123 package dimensions 2.69x1.6x1.12 mm.
Automotive standard AEC-Q101 qualified. Peak reverse current: 2 μA. Peak reverse recovery time: 5 ns.
This onsemi Schottky diode is widely used in industrial, automotive, consumer electronics, power supply, and communication equipment circuits requiring efficient rectification and protection.
