| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 2.41mm |
| Length | 4.75mm |
| Model | RS2G R5 |
| Width | 3.73mm |
| Mount Type | Surface |
| Series | RS2 |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-214AA (SMB) |
| Minimum Operating Temperature | -55°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Diode Configuration | Single |
| Rectifier Type | Switching |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 1.3V |
| Peak Reverse Recovery Time trr | 150ns |

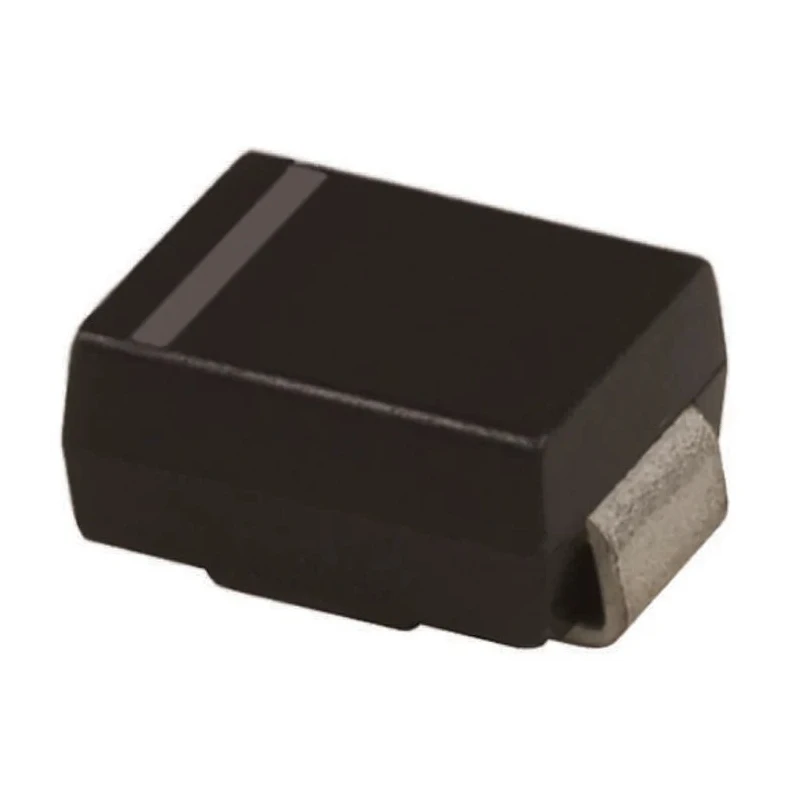

Taiwan Semiconductor RS2G R5 is a surface mount single switching diode housed in a DO-214AA (SMB) package, designed for electronic and power circuit applications requiring efficient rectification and fast switching.
This diode is rated for a maximum continuous forward current of 2 A, capable of handling moderate currents in switching power supplies and protection circuits. It has a high peak reverse repetitive voltage rating of 400 V, providing robust protection against reverse voltage spikes.
The diode exhibits a maximum forward voltage drop of 1.3 V which enhances efficiency by reducing conduction losses. Its peak reverse recovery time of 150 nanoseconds makes it suitable for fast switching applications demanding minimal switching delays.
Designed to operate within a broad temperature range from -55°C to 150°C, the RS2G R5 ensures reliability under various environmental conditions, making it ideal for industrial, electronic manufacturing, and automotive auxiliary circuits.
The compact DO-214AA package with dimensions of 4.75 mm length, 3.73 mm width, and 2.41 mm height allows for high-density PCB layouts and automated assembly processes. The diode is also rated for a peak non-repetitive forward surge current of 50 A to withstand transient overloads.
Surface mount DO-214AA (SMB) package supports modern PCB mounting techniques. Single diode configuration for versatile rectification applications. High reverse voltage and current ratings ensure circuit protection. Fast recovery time facilitates use in switching power supplies and converters.
Wide temperature tolerance provides durability and reliability. Low forward voltage reduces power consumption. Compact size supports densely populated PCBs. Peak surge current capacity handles transient conditions reliably.
Low leakage current preserves circuit efficiency and prevents losses. This diode is suitable for use in industrial electronics, power supply design, consumer electronics, and automotive auxiliary systems requiring high reliability and performance.
