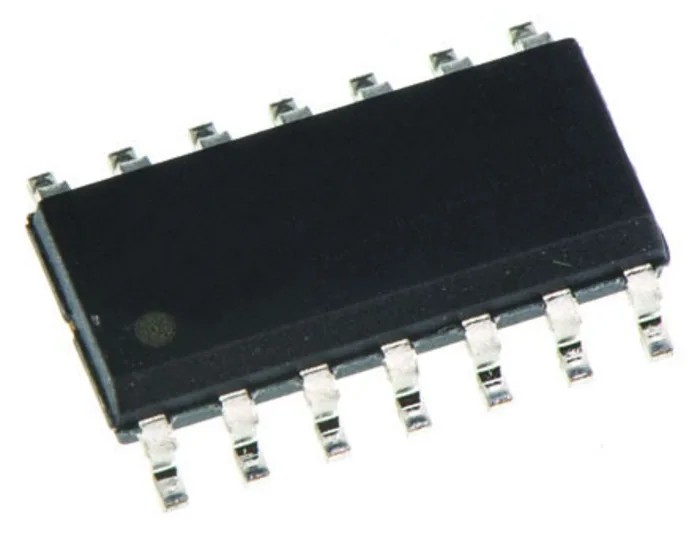

Texas Instruments Analogue Switch 4 CMOS Quad SPST Surface Mount 14-Pin SOIC CD74HC4066M
Specifications
| Country of Origin | India |
|---|---|
| Brand | Texas Instruments |
| Height | 1.58mm |
| Length | 8.65mm |
| Model | CD74HC4066M |
| Width | 3.91mm |
| Mount Type | Surface |
| Compatibility | Input CMOS, Output CMOS |
| Output type | CMOS/TTL |
| Series | CD74HC4066 |
| Configuration | Quad SPST |
| Maximum Operating Temperature | 125°C |
| Package Type | SOIC |
| Minimum Operating Temperature | -55°C |
| Operating Voltage | 2 to 6 V |
| Standards/Approvals | RoHS |
| Pin Count | 14 |
| Number of Elements per Chip | 4 |
| Maximum Supply Voltage | 10V |
| Logic Family | CMOS |
| Minimum Supply Voltage | 2V |
| Maximum On State Resistance | 142Ω |
Key Features
- Operates within a supply voltage range of 2 to 10 volts.
- Features a maximum on-state resistance of 142 ohms ensuring low signal loss.
- Supports compatibility with both CMOS input and CMOS/TTL output logic levels.
- Designed for use in multiplexing and demultiplexing analog signals.
- Compact dimensions of 8.65mm length, 3.91mm width, and 1.58mm height.
- Operates over a wide temperature range from -55°C up to 125°C.
- Package type SOIC facilitates surface mounting on PCBs for modern electronics assembly.
- Conforms to RoHS standards for reduced environmental impact.
Product Description
Texas Instruments CD74HC4066M is a high-speed CMOS analogue switch featuring 4 independent SPST switches integrated into a single 14-pin SOIC package. It is designed to handle analog signal routing efficiently with low on-state resistance, making it ideal for multiplexing, signal switching, and routing in various electronic systems.
This device operates within the voltage supply range of 2 to 10 volts and supports compatibility with both CMOS and TTL logic levels, enhancing versatility in mixed-signal design environments. The maximum on state resistance of 142 ohms ensures minimal signal degradation during switching operations.
With operational temperature ratings from -55°C to 125°C, this device is suitable for industrial and commercial applications requiring stability across harsh environments. The compact surface mount SOIC package, measuring 8.65mm in length, 3.91mm in width, and 1.58mm in height, allows for dense PCB layouts and efficient space utilization.
The CD74HC4066M belongs to the renowned 74HC4000 series, providing a balance of low power consumption typical of CMOS technology with switching speeds comparable to LSTTL logic families. It fully complies with RoHS compliance standards, ensuring environmentally responsible manufacturing and disposal.
This product is ideal for integration in consumer electronics, industrial control systems, communication devices, and laboratory instrumentation requiring precise and fast analog switching capabilities.
Operates with supply voltages from 2 to 10 V. Low on-state resistance of 142 ohms minimizes signal loss. Fits in a 14-pin SOIC surface mount package. Wide operating temperature range from -55°C to 125°C. Compatible with CMOS input and CMOS/TTL output logic.
Part of the 74HC4000 high-speed CMOS logic family. RoHS compliant for reduced environmental impact. Compact dimensions allow flexible PCB design. Contains four independent analog switches. Ideal for multiplexing and demultiplexing applications.
Explore a wide range of semiconductor and industrial components on EnvMart for your engineering and manufacturing needs.
Explore more products in our Multiplexer & Demultiplexer ICs category.
