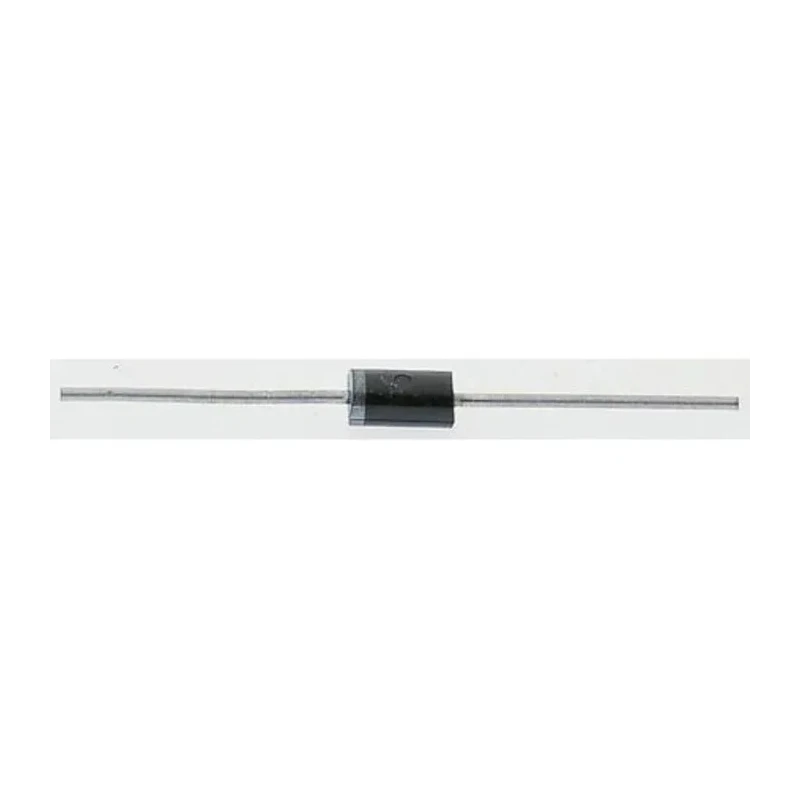

Taiwan Semiconductor 1 kV 3 A Switching Diode 2-Pin DO-201AD FR307G

Free Delivery in India | Lowest Global Shipping Charges

Taiwan Semiconductor 1 kV 3 A Switching Diode 2-Pin DO-201AD FR307G

Name: Taiwan Semiconductor 1 kV 3 A Switching Diode 2-Pin DO-201AD FR307G
Brand: Taiwan Semiconductor
SKU: 212331
Price: 0.23 USD
Availability: InStock



Category Switching Diodes Brand Taiwan Semiconductor Condition New

Specifications

Country of Origin	India
Diameter	5.6mm
Brand	Taiwan Semiconductor
Height	5.6mm
Length	9.5mm
Model	FR307G
Width	5.6mm
Mount Type	Through Hole
Series	FR307G
Maximum Operating Temperature	150°C
Package Type	DO-201AD
Minimum Operating Temperature	-65°C
Pin Count	2
Automotive Standard	AEC-Q101
Maximum Continuous Forward Current If	3A
Peak Reverse Repetitive Voltage Vrrm	1kV
Diode Configuration	Single
Rectifier Type	Switching
Peak Reverse Current Ir	5μA
Peak Non-Repetitive Forward Surge Current Ifsm	125A
Maximum Forward Voltage Vf	1.3V
Peak Reverse Recovery Time trr	500ns
Vishay 800V 3A, Silicon Junction Diode, 2-Pin DO-201AD BY399PBrand	Vishay
Vishay 1 kV 3 A Diode Soft Recovery 2-Pin DO-201AD UF5408-E3/54Brand	Vishay

Key Features

Designed for through-hole mounting in electronic circuits.
Package type DO-201AD ensures robust mechanical compatibility.
Maximum continuous forward current of 3 A allows efficient switching operation.
Peak reverse repetitive voltage rated at 1 kV for high voltage applications.
Low peak reverse current of 5 microamperes for minimal leakage.
Operating temperature range from -65°C to 150°C ensures durability.
Fast peak reverse recovery time of 500 nanoseconds supports rapid switching.
Compliant with automotive standard AEC-Q101 for reliable automotive applications.

Product Description

Taiwan Semiconductor FR307G Switching Diode in a 2-Pin DO-201AD package is engineered for reliable through-hole electronic component integration. This diode supports a maximum continuous forward current of 3 A and a peak reverse repetitive voltage of 1 kV, making it suitable for demanding switching and rectification applications in power electronics, automotive, and industrial systems.

With a maximum forward voltage drop of 1.3 V and a peak reverse current as low as 5 μA, the FR307G diode delivers efficient performance with minimal power loss. Its fast peak reverse recovery time of 500 nanoseconds allows high-speed switching, beneficial for power supply circuits and inverter designs. The diode operates reliably across a wide temperature range between -65°C and 150°C, suitable for harsh environmental conditions.

The physical package dimensions (9.5 mm length and 5.6 mm diameter) conform to the DO-201AD standard, ensuring mechanical compatibility with common through-hole mounting requirements. The unit complies with the automotive standard AEC-Q101, affirming its robustness for automotive electronics applications.

Industrial use cases include power rectification in control systems, automotive electronic circuits, and other semiconductor-based power switching equipment. This diode is an ideal choice for electronics manufacturing requiring precision and durability.

Through-hole mounting package for easy PCB integration. High forward current capacity of 3 A for robust switching. Rated for 1 kV peak reverse voltage ensuring safety margins. Low leakage current improves energy efficiency.

Wide temperature operating range supports diverse applications. Fast recovery time optimizes switching speed. Standard DO-201AD package size ensures compatibility. Meets AEC-Q101 automotive standard for quality assurance.

Reliable semiconductor component for various industrial sectors. Compact size suitable for dense circuit boards. Explore more semiconductor components and Switching Diodes at EnvMart to support your electronic design and manufacturing needs.
