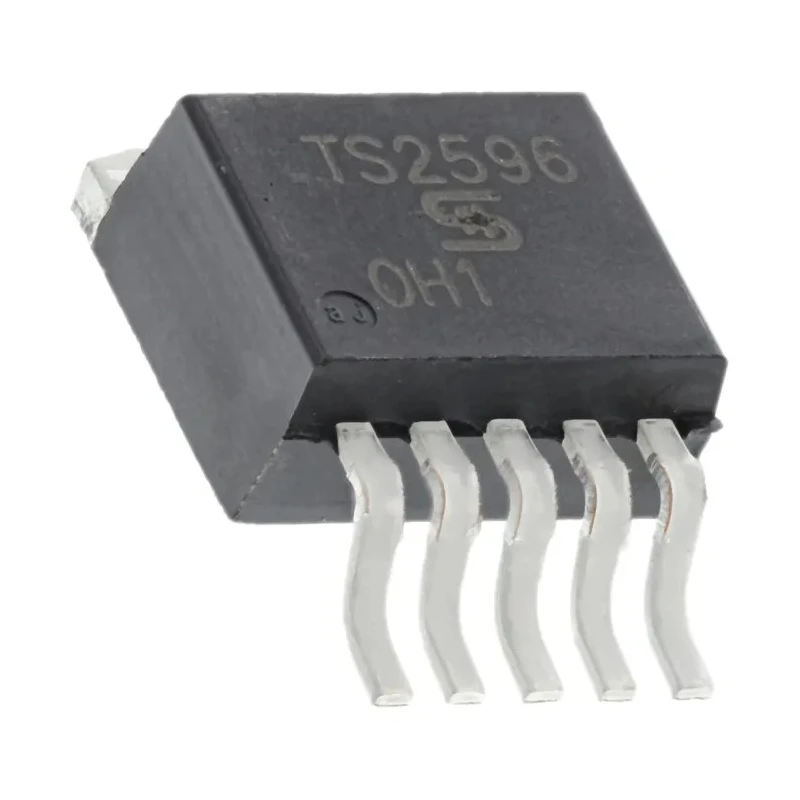

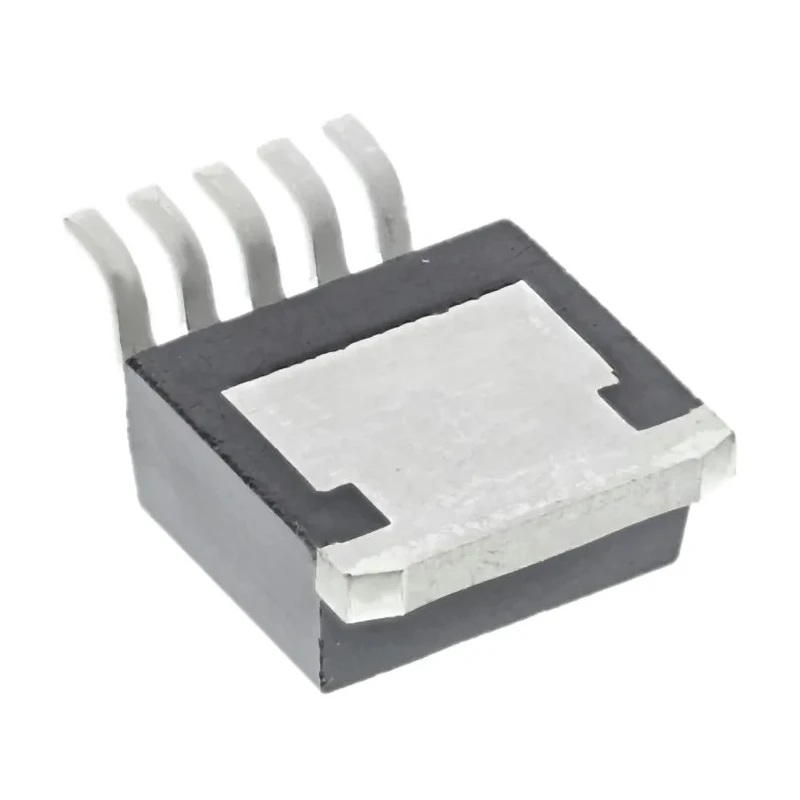

Taiwan Semiconductor 1-Channel Buck Converter 3 A 37V 173 kHz TO-263 6-Pin TS2596CM5 RNG
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 4.7mm |
| Length | 10.54mm |
| Model | TS2596CM5 RNG |
| Width | 9.2mm |
| Mount Type | Surface |
| Output type | Adjustable |
| Series | TS2596 |
| Output Current | 3A |
| Maximum Operating Temperature | 125°C |
| Package Type | TO-263 |
| Minimum Operating Temperature | -40°C |
| Polarity | Positive |
| Switching Frequency | 173kHz |
| Number of outputs | 1 |
| Maximum Input Voltage | 40V |
| Output Voltage | 37V |
| Quiescent Current | 5mA |
| Minimum Input Voltage | 4.5V |
| Pin Count | 6 |
Key Features
- Compact TO-263 6-Pin surface mount package ensures easy PCB integration.
- Operates within an input voltage range of 4.5V to 40V for versatile applications.
- Adjustable output voltage with positive polarity suitable for diverse power supply needs.
- Low quiescent current of 5mA enhances energy efficiency in power-sensitive designs.
- Wide operating temperature range from -40°C to 125°C for reliable industrial performance.
- Switching regulator design provides efficient step-down DC-DC voltage conversion.
- Pin count of 6 simplifies connection and control in electronic circuits.
- Not certified by standard approvals; suitable for general-purpose electronics.
Product Description
Taiwan Semiconductor TS2596CM5 RNG is a high-performance 1-Channel Buck Converter designed for efficient DC-DC step-down voltage regulation. Featuring a 3 A output current capability and adjustable output voltage up to 37V, this converter operates at a switching frequency of 173 kHz, balancing switching losses and output ripple effectively. Packaged in a compact TO-263 6-Pin surface mount format, the device caters to space-conscious PCB designs and industrial electronics applications.
The device supports a wide input voltage range from 4.5V to 40V and maintains positive polarity for output regulation. With a low quiescent current of 5mA, the TS2596CM5 RNG converter is ideal for energy-efficient applications and contributes to reduced power consumption. The product exhibits strong thermal stability, capable of operating over an extended temperature range from -40°C up to 125°C, making it suitable for harsh environmental conditions common in industrial and commercial electronics.
This switching regulator does not hold specific standards or approvals, positioning it as a general-use semiconductor suitable for embedded systems, power supply management in industrial equipment, and electronic consumer applications. The 6-pin configuration simplifies integration into existing circuit designs.
Compact TO-263 6-pin surface mount package. Adjustable output voltage with positive polarity output. Input voltage range between 4.5V and 40V. Switching frequency of 173 kHz for efficient power conversion. 3 A maximum output current for robust load handling.
Low quiescent current of 5mA for power saving. Operating temperature from -40°C to 125°C ensures durability. Designed for industrial, commercial, and consumer electronics applications. Explore more semiconductor products from Taiwan Semiconductor and related DC-DC Converters in EnvMart’s Electronics & Electricals category for reliable power management solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum output current of the TS2596CM5 RNG buck converter is 3 A.
It operates within an input voltage range of 4.5V to 40V.
The output voltage can be adjusted up to 37V with positive polarity.
The switching frequency of this model is 173 kHz.
The dimensions of the TS2596CM5 RNG are 10.54 mm in length, 9.2 mm in width, and 4.7 mm in height.
The quiescent current is 5 mA, which enhances energy efficiency.
It has a wide operating temperature range from -40°C to 125°C.
This model features a single output channel.
It is packaged in a compact TO-263 6-pin surface mount format.
This model is not certified by standard approvals and is suitable for general-purpose electronics.
It is designed for industrial, commercial, and consumer electronics applications.
The output voltage has a positive polarity.
