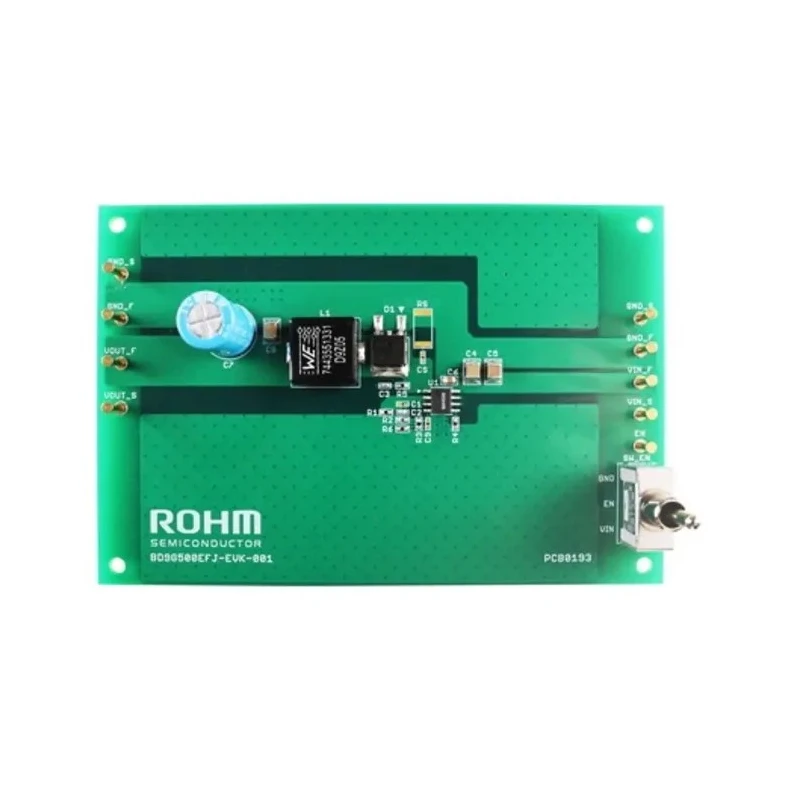

ROHM Evaluation Board of BD9G500EFJ-LA DC-DC Converter with Configurable Output Voltage and Frequency
Specifications
| Country of Origin | India |
|---|---|
| Brand | ROHM |
| Model | BD9G500EFJ-LA |
| For Use With | BD9G500EFJ-LA |
| Standards/Approvals | RoHS |
| Kit Classification | Evaluation Board |
| Kit Name | Evaluation Board of BD9G500EFJ-LA |
Key Features
- The input voltage range supports 7V to 76V for versatile applications.
- Output voltage is adjustable from 1V to approximately 97% of input voltage using external resistors.
- Operating frequency can be set between 100 kHz and 650 kHz via external resistor.
- Features current mode control for fast transient response and simple phase compensation setup.
- Includes soft start to prevent inrush current at startup.
- Designed for evaluation of power management performance in industrial and electronic development.
Product Description
ROHM BD9G500EFJ-EVK-001 evaluation board is designed for the BD9G500EFJ-LA DC-DC Converter, enabling detailed performance assessment and development. It supports a wide input voltage range from 7V to 76V, making it suitable for diverse industrial and electronic applications requiring regulated DC voltage conversion.
The output voltage on this board is configurable from 1V up to 0.97 times the input voltage by using external resistors, allowing precise voltage tuning based on end-use requirements. The operating switching frequency is also adjustable between 100 kHz and 650 kHz via an external resistor connected to the RT pin, providing flexibility for optimization of efficiency and noise characteristics.
This evaluation board utilizes current mode control, ensuring a fast transient response and simplifying the phase compensation process. It incorporates several protective functions including soft start to limit inrush currents during power-up, undervoltage lockout to prevent unstable operation under low voltage conditions, thermal shutdown for temperature protection, over voltage and over current protection, and over voltage discharge detection to enhance system safety and reliability.
Engineered for industrial, laboratory, and development environments, this evaluation board is ideal for testing and validating power management designs involving DC-DC conversion. Its comprehensive protective features and flexible configurations support robust and efficient system designs in power, motor control, robotics, and general electronic projects.
The input voltage range is 7V to 76V, permitting broad application suitability. Output voltage adjustable from 1V to nearly the input voltage with external resistors. Configurable operating frequency from 100 kHz to 650 kHz.
Current mode control architecture for excellent transient response and compensation. Soft start functionality to prevent inrush current at startup. Includes undervoltage lockout, thermal shutdown, over voltage, over current, and discharge protections.
Set contains the evaluation board with the model BD9G500EFJ-EVK-001, compatible for use with BD9G500EFJ-LA devices. Explore more development tools and semiconductor evaluation boards on EnvMart for enhanced power management solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this evaluation board is from 7V to 76V, making it suitable for a variety of applications.
The output voltage is adjustable from 1V to approximately 97% of the input voltage using external resistors, allowing for precise tuning based on requirements.
The operating frequency can be set between 100 kHz and 650 kHz via an external resistor connected to the RT pin.
It utilizes current mode control, which provides fast transient response and simplifies phase compensation setup.
This model includes several protective functions such as soft start, undervoltage lockout, thermal shutdown, over voltage and over current protection, and discharge detection.
The country of origin for the evaluation board is India.
The evaluation board complies with RoHS standards, ensuring it meets environmental safety requirements.
The kit contains the evaluation board model BD9G500EFJ-EVK-001, which is compatible for use with BD9G500EFJ-LA devices.
It is designed for industrial, laboratory, and development environments, particularly for testing power management designs involving DC-DC conversion.
The soft start feature helps prevent inrush current during startup, enhancing the safety and reliability of the system.
The output voltage can be configured to any value from 1V up to nearly the input voltage, depending on the external resistor configuration used.
The kit classification for this product is an Evaluation Board, specifically for the BD9G500EFJ-LA model.
