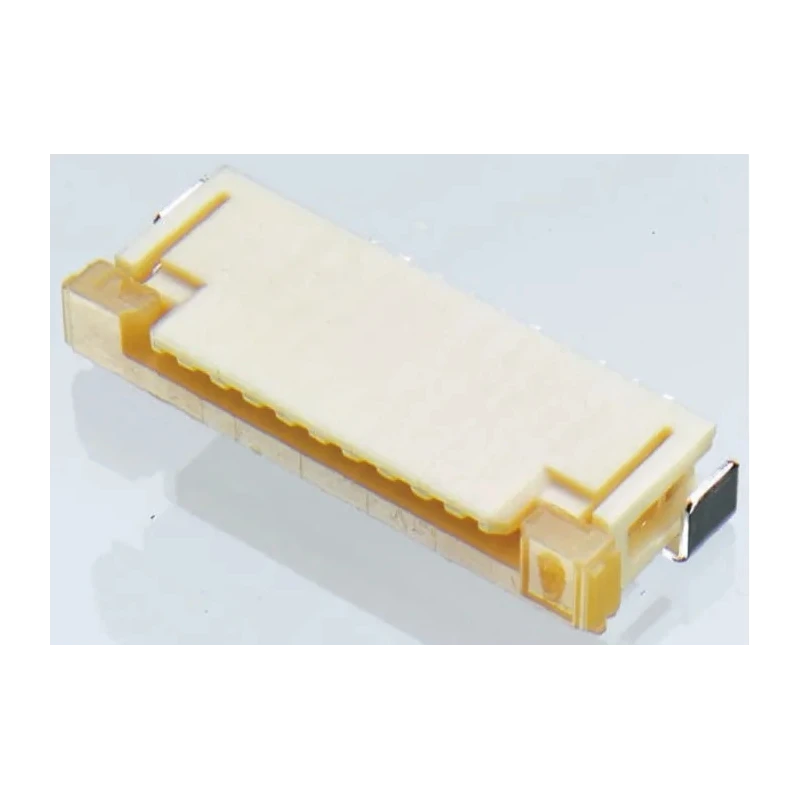

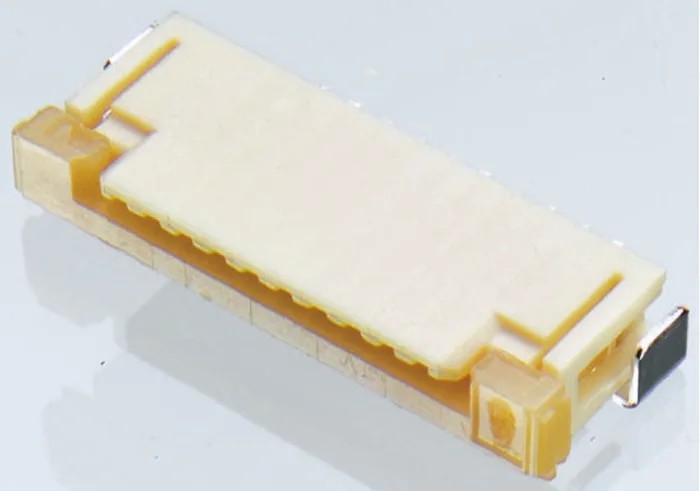

Molex 1 mm Pitch 11 Way Right Angle Female Easy-On FPC Connector, Solder Termination 52271-1179

Molex 52271-1179 is a high-quality 11 way right angle female Easy-On FPC connector with a 1 mm pitch, designed for surface mount applications requiring reliable and compact connections for flexible printed circuits. The connector features a solder termination type with bottom contact position and a slide type actuator that rotates 30° to facilitate easy insertion and secure locking of the FPC cable.

This connector utilizes phosphor bronze contacts plated with a tin bismuth alloy, offering excellent electrical reliability and durability. The nylon housing supports the contacts and actuator, providing a robust mechanical structure compatible with tight packaging requirements.

With zero insertion force (ZIF) design, the connector supports repeated cycling with minimal wear, ideal for applications in automotive navigation, consumer electronics, medical devices, data communications, and mobile phones. The locking mechanism secures the connection to prevent dislodging during operational stresses.

It operates at a maximum voltage of 50 V AC and a current rating of 500 mA, accommodating demands of low-power electronic circuits. The connector performs reliably across a temperature range from -40°C to 85°C, suitable for industrial and commercial environments.

Manufactured in Japan, the 52271 series ensures quality and consistency. Its space-saving right angle form factor with bottom contacts assists in efficient PCB layout and strain relief through solder tabs that enhance retention on the board.

Features a 1 mm pitch with 11 contacts for precise signal transmission. Right angle orientation with bottom contact position allows space-saving PCB layout. Utilizes a slide type actuator for effortless insertion with secure retention.

Constructed with phosphor bronze contacts plated with tin bismuth alloy for durability. Supports zero insertion force (ZIF) to minimize wear during repeated cycling. Operates within a wide temperature range from -40°C to 85°C.

Housing made from durable nylon material ensuring mechanical stability. Provides locking mechanism for reliable connection under vibration or movement. Rated for a current of 500 mA and voltage of 50 V AC. Manufactured in Japan with strict quality control ensuring consistent performance.

This Molex FPC Connector is highly suitable for use in sectors such as automotive, consumer electronics, data communications, medical instrumentation, and mobile device manufacturing. The compact and robust design meets modern demands for dependable, high-density electronic interconnect solutions.
