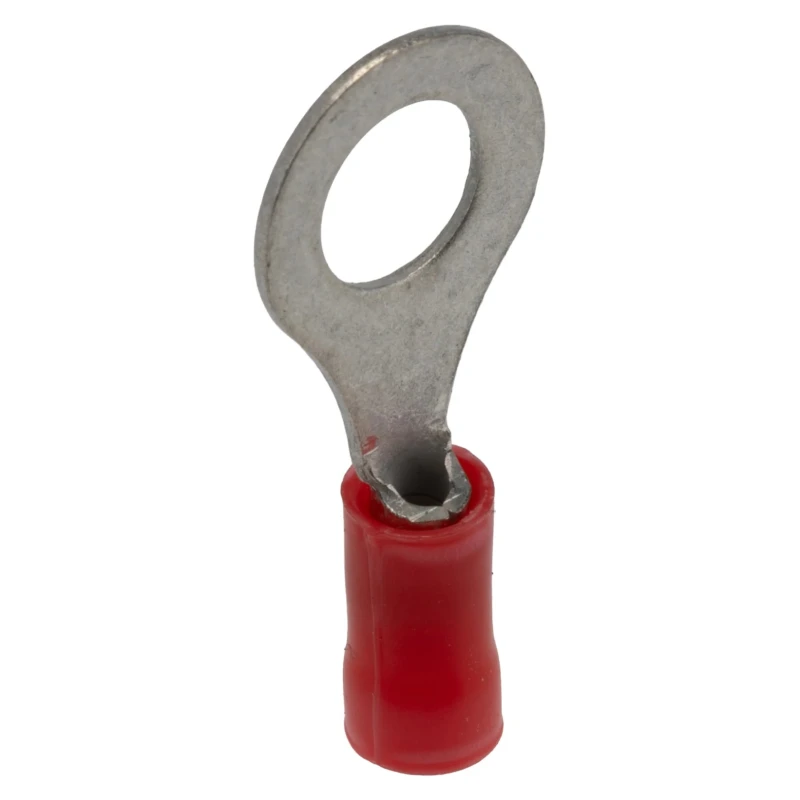

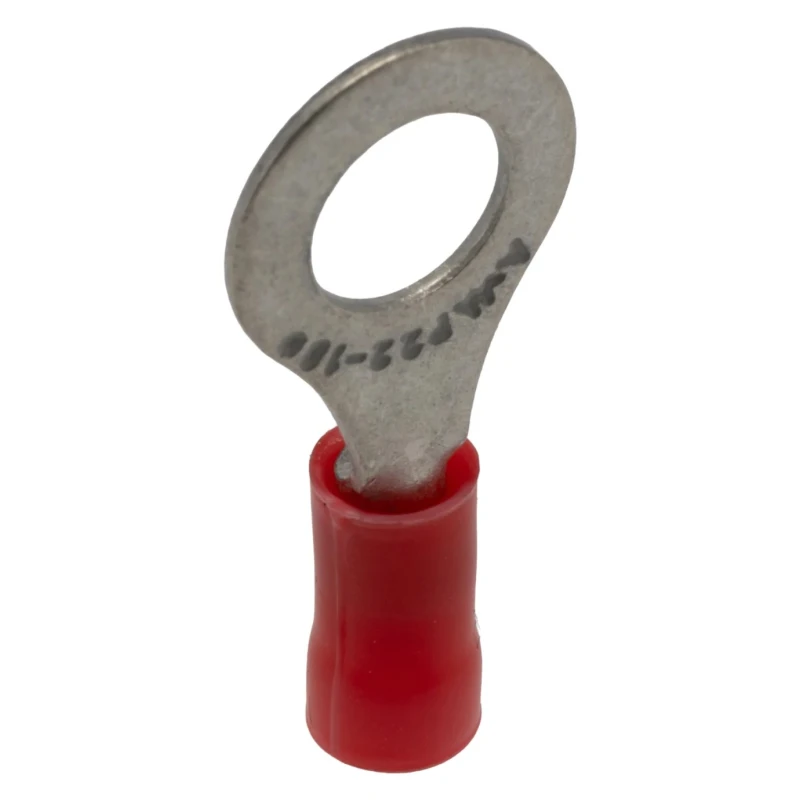

RS PRO PLASTI-GRIP Insulated Crimp Ring Terminal M6 Stud Size 22 AWG 16 AWG Wire Size Red 34150

TE Connectivity 34150 PLASTI-GRIP Insulated Crimp Ring Terminal is a high-quality electrical connector intended for secure wire termination in industrial, electronic, and electrical applications. It features an M6 stud size, perfectly suited for 22 to 16 AWG wires, with a robust red vinyl insulation that complies with a 94V-0 flammability rating, ensuring enhanced safety and durability.

The terminal's copper contact material is tin-plated, providing excellent conductivity and resistance to corrosion, while the serrated inner barrel guarantees superior tensile strength and reliable electrical contact post-crimping. The design includes a funnel-shaped wire entry that simplifies wire insertion and crimping for technicians.

This crimp Ring Terminal supports wire diameters from 0.26 mm² to 1.65 mm², making it versatile for various wiring needs. The overall length of 27.69 mm and thickness of 0.79 mm make it compact yet sturdy. It is rated to operate at temperatures up to 105°C, suitable for demanding industrial environments.

Typical use cases for this component include wiring terminations in control panels, power distribution, telecommunications equipment, and automotive electronics. Its reliable mechanical and electrical properties ensure long-lasting connections in laboratory, manufacturing, and commercial installations.

Constructed of high conductivity copper with tin plating for corrosion resistance. Features a PLASTI-GRIP expanded vinyl insulation sleeve rated 94V-0 for high dielectric strength. Fits M6 stud size with an inner ring diameter of 6.73 mm and outer ring diameter of 11.91 mm.

Suitable for wire sizes of 22 AWG minimum and 16 AWG maximum (0.26 mm² to 1.65 mm²). Overall length measures 27.69 mm and terminal thickness is 0.79 mm. Red insulation color for easy wire size identification. Maximum operating temperature is 105°C to withstand harsh environments.

Provides a serrated barrel for optimal electrical contact and tensile strength after crimping. Designed with funneled wire entry for easy stripped wire insertion. Explore more in the Electronics & Electricals category for suitable wire terminals and accessories on EnvMart.
