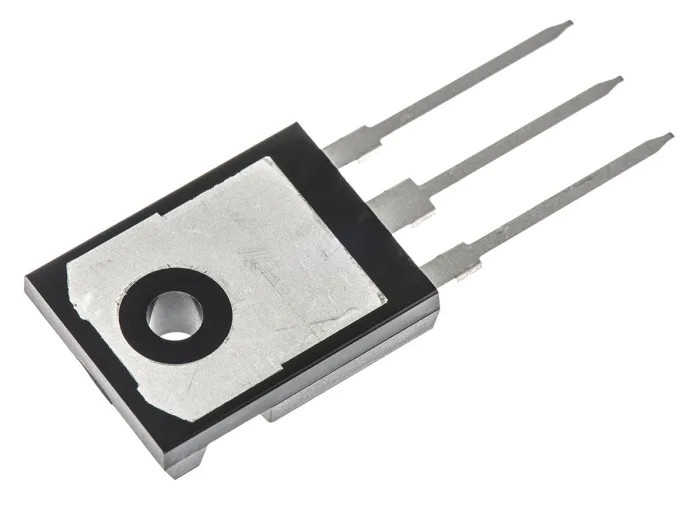

Taiwan Semiconductor 45 V 40 A Schottky Diode Through Hole TO-247AD Package MBR4045PT
Specifications
| Country of Origin | India |
|---|---|
| Brand | Taiwan Semiconductor |
| Height | 21.3mm |
| Length | 16.4mm |
| Model | MBR4045PT |
| Width | 5.16mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-247AD |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 40A |
| Peak Reverse Repetitive Voltage Vrrm | 45V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 330A |
| Maximum Forward Voltage Vf | 1.01V |
Key Features
- Features low forward voltage drop for efficient power handling.
- Offers maximum continuous forward current of 40 amperes.
- Can withstand peak non-repetitive forward surge current up to 330 amperes.
- Designed with 3 pins and a common cathode diode configuration.
- Operates effectively within a temperature range from -65 to 150 degrees Celsius.
- Compact size with length 16.4 mm, width 5.16 mm, and height 21.3 mm.
- Complies with automotive standard AEC-Q101 for robustness.
- Suitable for use in power supply circuits and rectification applications.
Product Description
Taiwan Semiconductor MBR4045PT is a high-performance Schottky diode designed for efficient power applications requiring low forward voltage drop and high current capacity. Packaged in a TO-247AD through-hole format, this diode supports a maximum continuous forward current of 40 amperes and peak reverse voltage of 45 volts.
The device features a common cathode diode configuration with three pins, facilitating easy integration into power supply circuits and other industrial electronic applications. Operating reliably from -65 degrees Celsius to 150 degrees Celsius, it withstands demanding temperature conditions, bolstered by compliance with automotive standard AEC-Q101 ensuring quality and durability.
Key physical dimensions include a length of 16.4 mm, width of 5.16 mm, and height of 21.3 mm, providing a compact footprint conducive to various electronic designs. The diode can tolerate peak non-repetitive forward surge currents up to 330 amperes, making it well-suited for transient load conditions.
This Schottky diode minimizes power loss due to its low forward voltage (1.01 V), improving efficiency in rectification and power conversion tasks. Through-hole mounting allows for straightforward PCB assembly and reliable mechanical stability.
Low power loss due to reduced forward voltage drop. High current capability with 40 A maximum continuous current. Robust surge current handling with 330 A peak non-repetitive capability. Compact TO-247AD package suitable for through-hole installation.
Wide operating temperature range from -65°C to 150°C. Complies with AEC-Q101 automotive standards. Peak reverse voltage rating of 45 V provides reliable blocking. Common cathode diode configuration for flexible circuit design.
Mechanical dimensions optimize PCB space without compromising performance.
This diode is ideal for use in industrial power electronics, automotive electronics, laboratory equipment, and commercial power supplies where efficiency and reliability are paramount. Its specification ensures durability in harsh electrical and thermal conditions.
Explore similar semiconductors and Schottky diodes in EnvMart's Electronics & Electricals category for diverse industrial and laboratory applications.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the MBR4045PT is 40 amperes.
The peak reverse voltage rating for the MBR4045PT is 45 volts.
The maximum forward voltage drop of this Schottky diode is 1.01 volts.
This diode can withstand a peak non-repetitive forward surge current of up to 330 amperes.
It operates effectively within a temperature range from -65 degrees Celsius to 150 degrees Celsius.
The MBR4045PT is designed with a common cathode diode configuration.
The dimensions of this diode are 16.4 mm in length, 5.16 mm in width, and 21.3 mm in height.
This model is designed for through-hole mounting.
The MBR4045PT complies with the automotive standard AEC-Q101.
This diode has a pin count of 3.
This Schottky diode is suitable for use in power supply circuits and rectification applications.
The peak reverse current for the MBR4045PT is rated at 1 milliampere (1mA).
