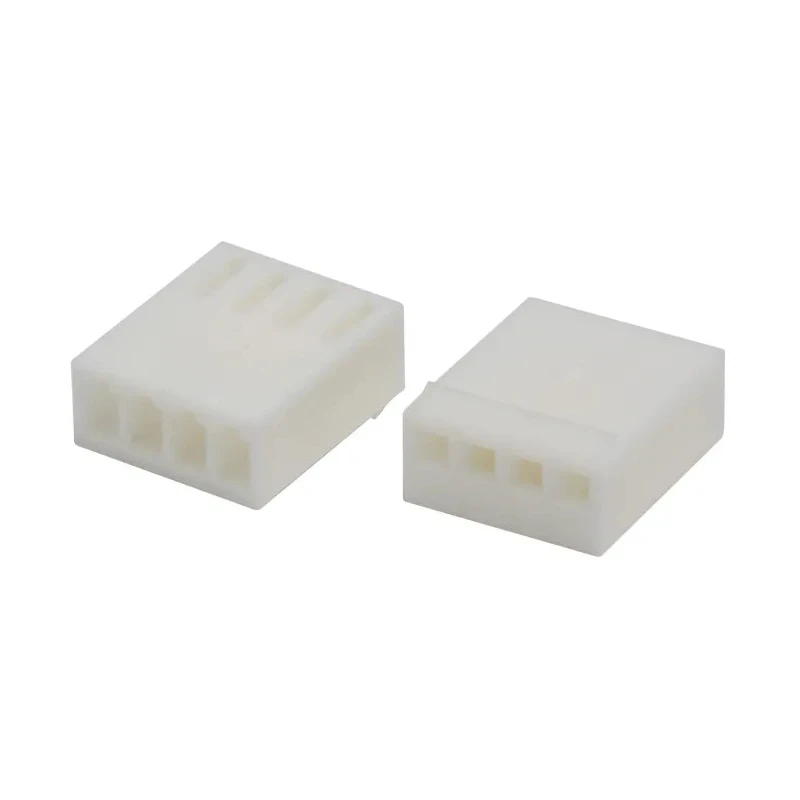

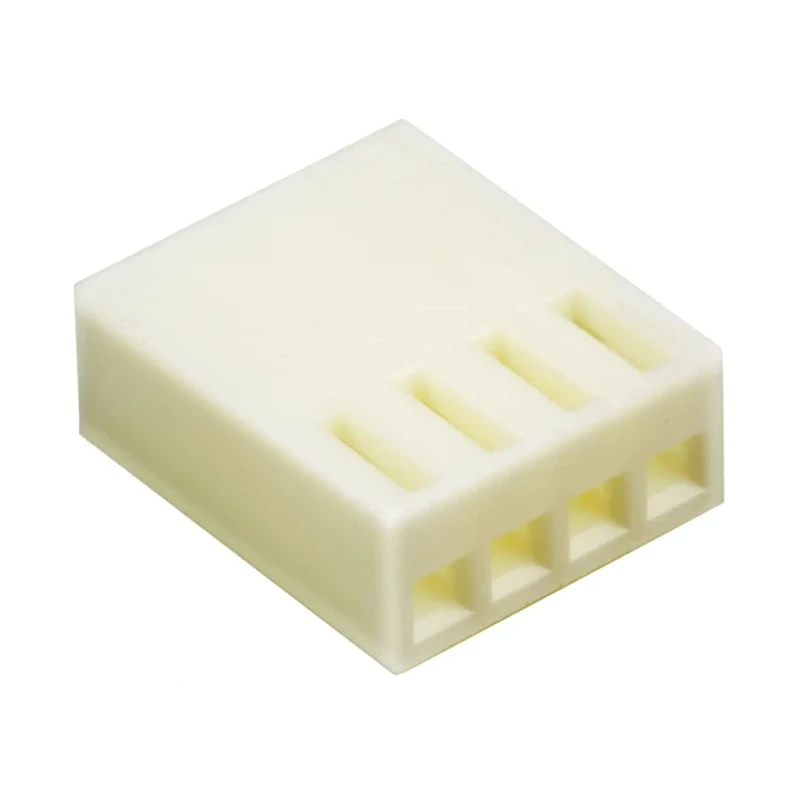

Molex KK 254 Female Connector Housing 2.54 mm Pitch 4 Way 1 Row Straight 22-01-2047
Specifications
| Country of Origin | India |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 10.72mm |
| Width | 4.82mm |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | KK 254 |
| Number of Rows | 1 |
| Pitch | 2.54mm |
| For Use With | KK Connector |
| Number of Contacts | 4 |
| Connector Gender | Female |
| Molex, KK 254 Female Connector Housing, 2.5 mm Pitch, 4 Way, 1 Row StraightBrand | Molex |
Key Features
- The connector housing is made of flame-retardant nylon material for safety.
- It supports four contacts in a single-row layout for efficient wiring.
- The 2.54 mm pitch and embedded friction lock ramps secure terminals effectively.
- Designed for use with Molex KK connectors and compatible with Molex crimp terminals.
- Compact dimensions of 10.72 mm length and 4.82 mm width allow space-saving installation.
- Natural (white) color provides easy identification in assemblies.
- Suitable for security systems, aerospace, automotive, and consumer electronics.
Product Description
Molex 22-01-2047 female connector housing is a 4-way, 1-row straight cable mount housing with a standard 2.54 mm pitch, ideal for wire-to-PCB connections. Constructed from durable, flame-retardant nylon, this connector housing ensures safety and reliability in demanding environments.
This housing is designed for use with Molex KK connector crimps and offers embedded friction lock ramps to securely hold terminals in place, preventing dislodgement due to vibration or shock. The natural white color of the housing facilitates easy integration and identification within assemblies.
Measuring 10.72 mm in length and 4.82 mm in width, the compact design is suitable for applications where space is limited. The single-row configuration with four contacts supports efficient electrical connections for various industrial systems.
Applications for this connector housing include security systems, aerospace manufacturing, automotive industry components, and consumer electronics, where reliable and compact connectors are essential.
The connector housing is made of flame-retardant nylon material for safety. It supports four contacts in a single-row layout for efficient wiring. The 2.54 mm pitch and embedded friction lock ramps secure terminals effectively.
Designed for use with Molex KK connectors and compatible with Molex crimp terminals. Compact dimensions of 10.72 mm length and 4.82 mm width allow space-saving installation. Natural (white) color provides easy identification in assemblies.
Suitable for security systems, aerospace, automotive, and consumer electronics.
This connector housing is part of the Molex KK 254 series, known for providing economical and effective multipole connections to printed circuit boards. Using the appropriate Molex insertion tool (710-6528) is recommended for proper insertion of terminals into the housing to ensure secure and reliable contacts.
Explore a wide range of Connector Housings and electronic components in the Electronics & Electricals category at EnvMart for your industrial and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch of this connector housing is 2.54 mm, which is standard for wire-to-PCB connections.
This model supports four contacts in a single-row layout, allowing for efficient wiring.
The housing measures 10.72 mm in length and 4.82 mm in width, making it suitable for space-saving installations.
It is constructed from flame-retardant nylon material, ensuring safety in various applications.
Yes, it is designed for use with Molex KK connectors and is compatible with Molex crimp terminals.
The orientation of this connector housing is straight, suitable for cable mount applications.
It is suitable for applications in security systems, aerospace, automotive, and consumer electronics.
The housing features embedded friction lock ramps that securely hold the terminals in place, preventing dislodgement due to vibration or shock.
The country of origin for this connector housing is India.
This connector housing has one row, accommodating four contacts in a compact design.
Using the appropriate Molex insertion tool (710-6528) is recommended for proper insertion of terminals into the housing.
The housing is natural (white) in color, which aids in easy identification within assemblies.
