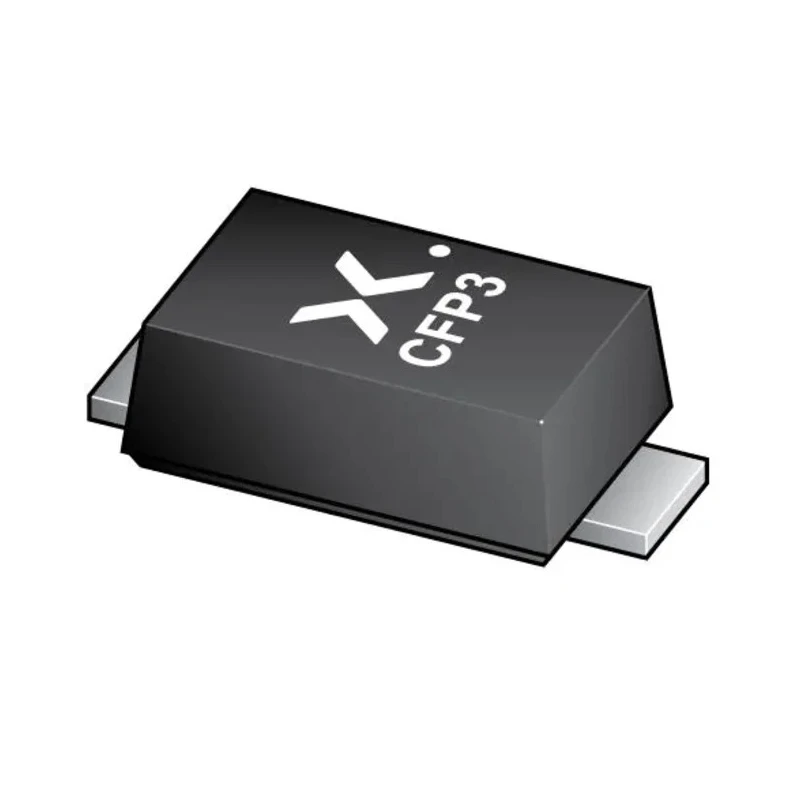

Nexperia 100 V 2 A Schottky Barrier Rectifier Trench MEGA Schottky 2-Pin CFP3 PMEG100T20ELR-QX
Specifications
| Country of Origin | India |
|---|---|
| Brand | Nexperia |
| Height | 1mm |
| Length | 2.6mm |
| Model | PMEG100T20ELR-QX |
| Width | 1.7mm |
| Mount Type | Surface |
| Series | PMEG |
| Maximum Operating Temperature | 175°C |
| Package Type | CFP3 |
| Minimum Operating Temperature | -55°C |
| Standards/Approvals | AEC-Q101 |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 2A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | Trench MEGA Schottky |
| Peak Reverse Current Ir | 1.2mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 50A |
| Maximum Forward Voltage Vf | 800mV |
| Peak Reverse Recovery Time trr | 12ns |
Key Features
- Encapsulated in a compact CFP3 (SOD123W) plastic package for space-saving designs.
- Low forward voltage and leakage current enhance power efficiency.
- High surge current capacity up to 50 A enables robustness in transient conditions.
- Rated for operation from -55°C to 175°C allowing use in harsh environments.
- Qualified to AEC-Q101 for automotive reliability standards.
- Ideal for DC-to-DC converters, automotive LED lighting, and switch mode power supplies.
- Supports reverse polarity protection and OR-ing applications.
- Features low peak reverse recovery time of 12 ns for fast switching.
Product Description
The Nexperia PMEG100T20ELR-QX Schottky Barrier Rectifier is a high-performance 2 A, 100 V device designed for efficient power rectification in electronics. Packaged in a small, flat CFP3 plastic surface-mount package, this diode offers low forward voltage and leakage current, boosting overall energy efficiency.
Constructed using trench MEGA Schottky technology, it features a peak non-repetitive forward surge current of 50 A and a low peak reverse recovery time of 12 ns, making it suitable for high-frequency switching applications. The diode reliably operates in temperatures ranging from -55°C to 175°C, ensuring stable performance in demanding industrial and automotive environments.
This device is fully qualified to the AEC-Q101 automotive standard, supporting applications such as automotive LED lighting, DC-to-DC conversion, switch mode power supplies, freewheeling, reverse polarity protection, and OR-ing circuits. Its two-pin CFP3 package aids compact circuit designs and simplifies assembly.
Compact CFP3 surface-mount package optimized for space efficiency. Low forward voltage enables higher efficiency and lower power dissipation. High surge current capability supports robust transient response. Wide operating temperature range suitable for automotive and industrial use.
AEC-Q101 certified for automotive reliability and safety. Ideal for DC-to-DC converters and LED lighting applications. Fast switching performance with 12 ns peak reverse recovery time. Advanced clip-bonding for improved power and thermal handling.
Two-pin design for efficient PCB layout and integration.
This Schottky Barrier Rectifier is well suited for industrial machines, automotive electronics, power supplies, and other semiconductor applications requiring durable and efficient diode performance. Its compact size and high reliability make it a preferred choice for engineers and designers working in demanding environments.
Explore more semiconductor and rectifier solutions in the Electronics & Electricals category at EnvMart for reliable, high-quality components.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature for this model is 175°C.
It has a peak reverse repetitive voltage rating of 100V.
This rectifier can handle a maximum continuous forward current of 2A.
The diode is packaged in a CFP3 (SOD123W) surface-mount package.
The peak non-repetitive forward surge current is rated at 50A.
The dimensions of this model are 2.6mm in length, 1.7mm in width, and 1mm in height.
The peak reverse recovery time is 12 ns, allowing for fast switching performance.
Yes, it is qualified to the AEC-Q101 automotive reliability standard.
The minimum operating temperature is -55°C.
This model is a trench MEGA Schottky rectifier.
It is suitable for applications such as DC-to-DC converters, automotive LED lighting, and switch mode power supplies.
The maximum forward voltage drop is 800mV.
