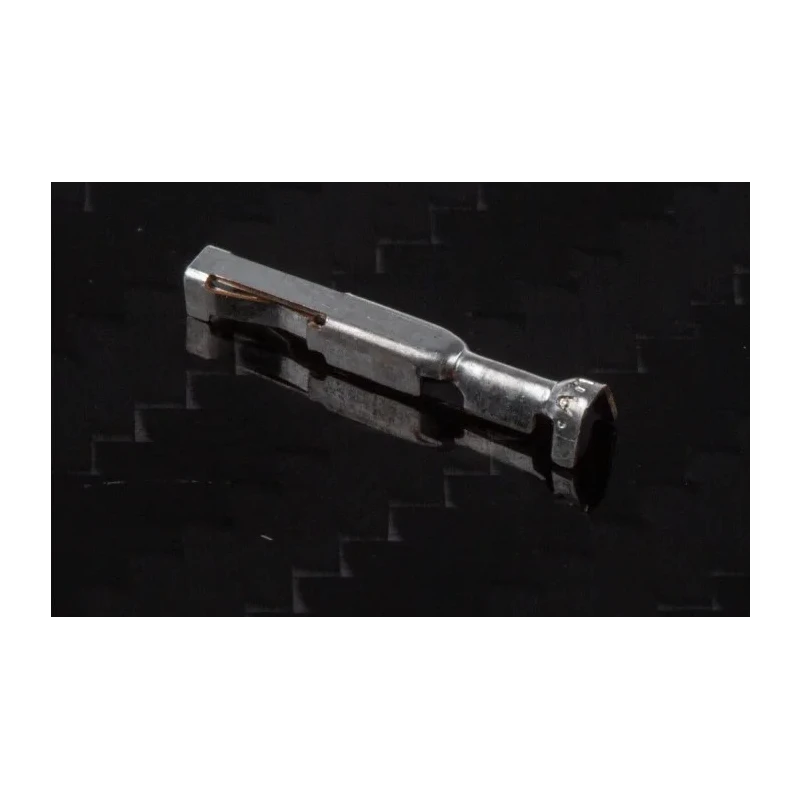

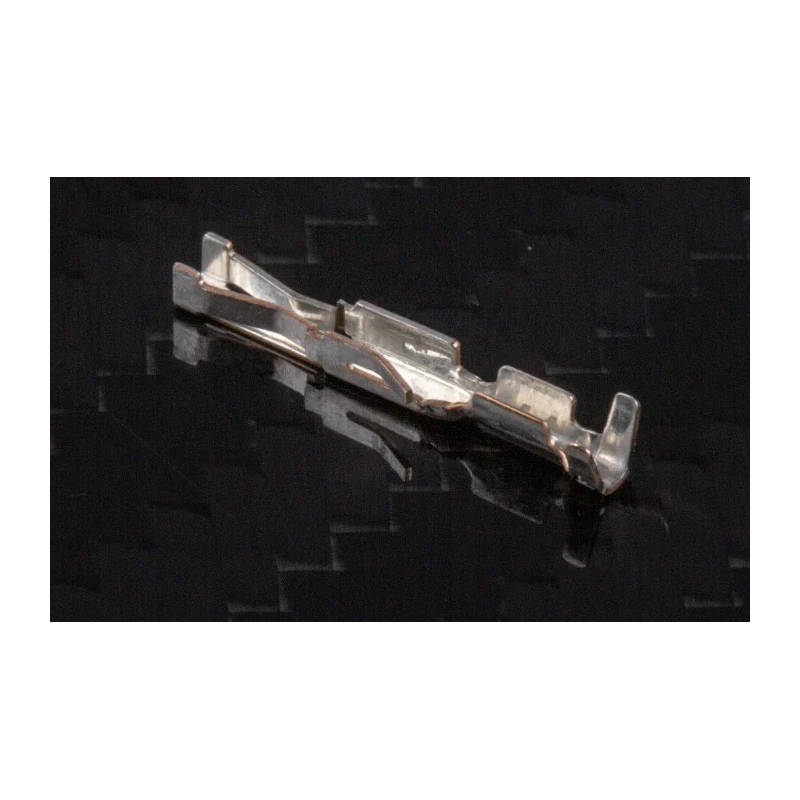

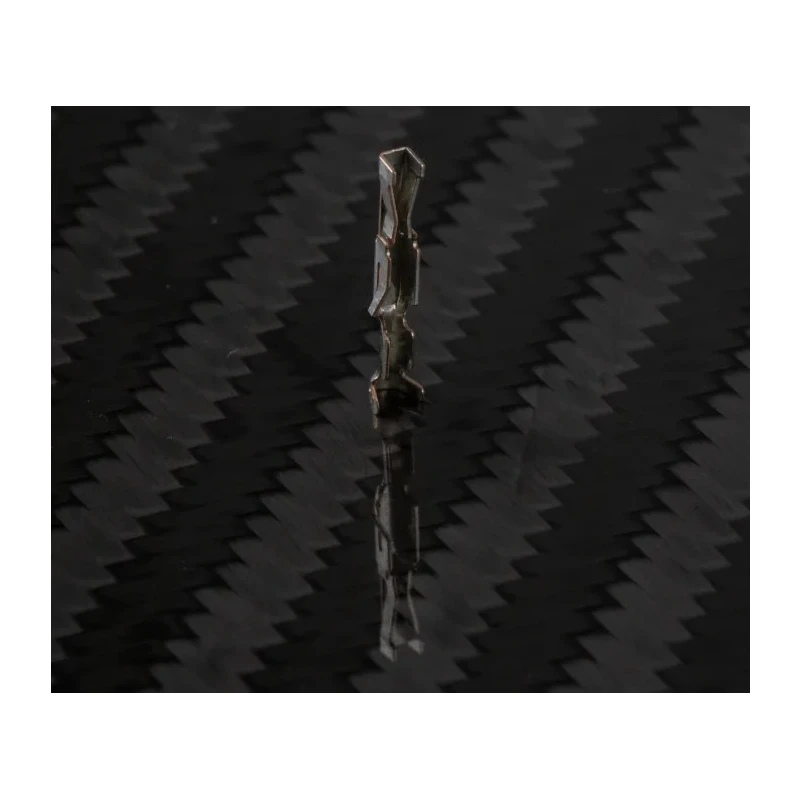

TE Connectivity AMPMODU Series Female Crimp Terminal, 3A Current, 28 AWG Min, 24 AWG Max, Tin Plating, Phosphor Bronze HE14
Specifications
| Country of Origin | India |
|---|---|
| Brand | TE Connectivity |
| Current | 3A |
| Length | 13.3mm |
| Model | HE14 |
| Gender | Female |
| Contact Material | Phosphor Bronze |
| Series | AMPMODU HE14 |
| Termination Type | Crimp |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| For Use With | AMPMODU HE14 Connector Housing |
| Contact Plating | Tin |
| Minimum Wire Size mm² | 0.08mm² |
| Maximum Wire Size mm² | 0.2mm² |
| Minimum Wire Size AWG | 28AWG |
| Maximum Wire Size AWG | 24AWG |
| Maximum Contact Resistance | 20mΩ |
Key Features
- Constructed with phosphor bronze contacts plated with tin for reliable conductivity.
- Designed to handle a maximum current of 3 amperes safely.
- Compatible with wire sizes from 28 AWG (0.08 mm²) minimum to 24 AWG (0.2 mm²) maximum.
- Operates reliably within temperature range of -55°C to 125°C.
- Termination by crimping offers secure electrical and mechanical connection.
- Contact resistance maintained at a maximum of 20 milliohms for efficient signal transmission.
- Ideal for industrial automation and control system wiring applications.
Product Description
TE Connectivity HE14 female crimp terminal (model 182734-2) is designed for use with the AMPMODU HE14 connector housing in demanding industrial, automation, and control applications. This crimp terminal supports wires ranging from 28 AWG (0.08 mm²) to 24 AWG (0.2 mm²), ensuring flexibility in various wiring scenarios while maintaining reliable electrical connections.
Manufactured from tin-plated phosphor bronze contacts, these terminals provide enhanced conductivity, corrosion resistance, and durability under operating temperatures from -55°C to 125°C. The recommended wire strip length is 3.25 millimeters to facilitate proper crimping.
The crimp terminals support a maximum current rating of 3 amperes, with a contact resistance not exceeding 20 milliohms, making them suitable for precise signal transmission and power delivery in electronic assemblies.
The AMPMODU HE14 interconnect system, with its 2.54 mm centreline, is widely adopted for its reliability and cost-effectiveness in automation and control wiring. This female crimp terminal snaps into dedicated crimp socket shells and is compatible with various tooling assemblies, enhancing installation efficiency.
Phosphor bronze contact material plated with tin for high conductivity and corrosion resistance. Crimp termination type provides robust mechanical and electrical connections. Wide operating temperature range from -55°C to 125°C suitable for diverse environments.
Designed for wire sizes 28 AWG to 24 AWG fitting AMPMODU HE14 connectors. Compact length of 13.3 mm supports standard industrial connector configurations. Low maximum contact resistance of 20 mΩ ensures signal integrity.
Ideal for industrial automation, manufacturing, and electronic control systems.
This TE Connectivity AMPMODU HE14 female crimp terminal (182734-2) is a reliable and economical choice for electronic component assembly, especially in PCB connectors and wire housing applications. Explore similar high-quality connectors and accessories to support your industrial electronic needs at EnvMart.
Explore more products in our Crimp Contacts category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this crimp terminal is 3 amperes.
It is compatible with wire sizes ranging from 28 AWG (0.08 mm²) to 24 AWG (0.2 mm²).
The length of this crimp terminal is 13.3 mm.
The terminal operates reliably within a temperature range of -55°C to 125°C.
The maximum contact resistance is maintained at 20 milliohms.
This terminal is constructed from phosphor bronze and is plated with tin for enhanced conductivity.
It utilizes a crimp termination type, providing secure electrical and mechanical connections.
This terminal is designed for use with the AMPMODU HE14 connector housing.
The recommended wire strip length for proper crimping is 3.25 millimeters.
This crimp terminal is ideal for industrial automation, manufacturing, and electronic control systems.
The country of origin for this crimp terminal is India.
This crimp terminal belongs to the AMPMODU HE14 series.
