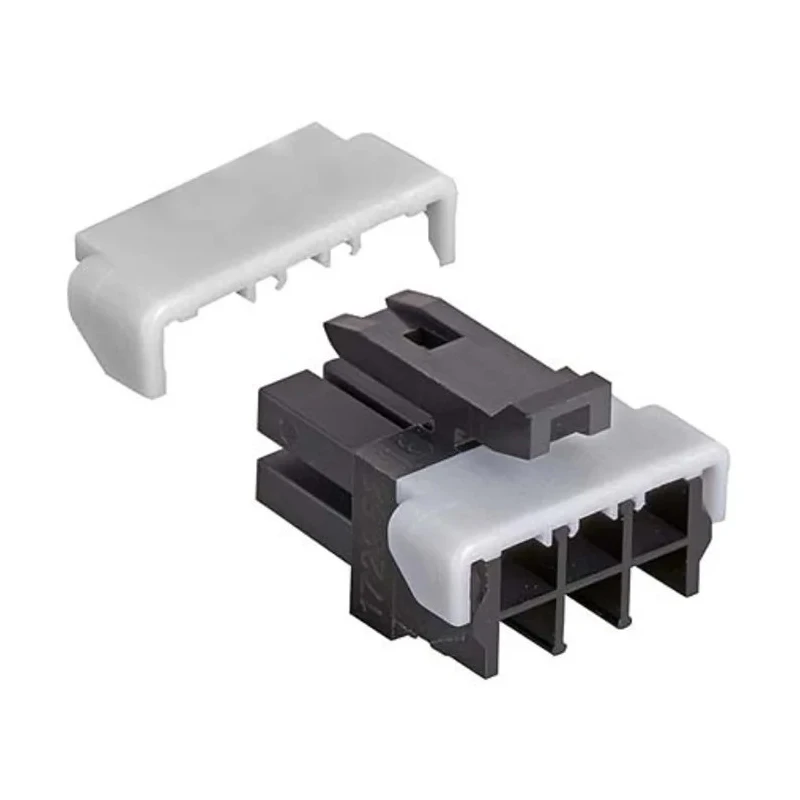

Molex Micro-Fit TPA Female Connector Housing 3 mm Pitch 6 Way 2 Row Straight 172952-0601
Specifications
| Country of Origin | China |
|---|---|
| Brand | Molex |
| Orientation | Straight |
| Length | 9.85mm |
| Width | 6.86mm |
| Mount Type | Cable |
| Housing Material | Nylon |
| Series | Micro-Fit TPA |
| Number of Rows | 2 |
| Pitch | 3mm |
| For Use With | Micro-Fit 3.0 FeMale Crimp Terminal 43030, Micro-Fit RMF Reduced Mating Force 46235 |
| Number of Contacts | 6 |
| Connector Gender | Female |
Key Features
- Constructed from durable nylon for robust performance.
- Terminal position assurance (TPA) integrated to reduce terminal back-outs.
- Polarized housing prevents accidental mismating.
- Locking latch ensures secure mating connection.
- Compatible with Micro-Fit 3.0 headers and plugs.
- Suitable for cable mounting with straight orientation.
- Compact size with length 9.85 mm and width 6.86 mm.
- Ideal for consumer appliances, telecommunications, and automotive applications.
Product Description
Molex 172952-0601 Micro-Fit TPA Female Connector Housing is a 6-way, 2-row straight cable mount connector with 3 mm pitch designed for secure and reliable electrical connections. The housing is manufactured from nylon, providing mechanical strength and durability.
This Micro-Fit TPA 3.0 mm receptacle housing incorporates a terminal position assurance (TPA) with integrated secondary lock that prevents terminal back-outs resulting from improper assembly. The single piece design of the housing eliminates the need for secondary pieces, reducing the risk of part loss. The housing is polarized to prevent incorrect mating and features locking latches for a secure connection.
The contacts are fully isolated within the housing to prevent electrical arcing, enhancing safety and reliability. This housing is compatible with existing Micro-Fit 3.0 headers and plugs, facilitating seamless integration into existing systems without additional cost.
This product is suitable for various industrial and commercial applications including consumer and home appliances, telecommunications equipment such as servers, routers, and switches, as well as automotive and commercial vehicle wiring harnesses for non-sealed applications.
Durable nylon housing construction ensures longevity. Integrated TPA reduces terminal back-out risks. Polarized housing prevents incorrect mating and ensures proper orientation. Locking latch mechanism secures connections firmly.
Fully isolated contacts prevent electrical arcing. Compatible with Micro-Fit 3.0 series connectors. Compact dimensions enable flexible design options. Ideal for automotive, telecommunications, and appliance applications.
Package contains 1 Molex Micro-Fit TPA Female Connector Housing with 6 contacts and 2 rows, suitable for cable mounting with a straight orientation and 3 mm pitch. Explore more Molex electronic components and connector solutions on EnvMart for reliable performance in demanding environments.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The pitch size of this connector housing is 3 mm.
This model features 6 contacts.
The connector housing has a length of 9.85 mm and a width of 6.86 mm.
The housing is constructed from nylon, providing mechanical strength and durability.
Yes, it is compatible with Micro-Fit 3.0 headers and plugs, including Micro-Fit 3.0 Female Crimp Terminal 43030 and Micro-Fit RMF Reduced Mating Force 46235.
This model supports cable mounting with a straight orientation.
Yes, it features a locking latch mechanism that ensures a secure mating connection.
It is suitable for various applications including consumer appliances, telecommunications equipment, and automotive wiring harnesses for non-sealed applications.
The orientation of this connector housing is straight.
The housing incorporates terminal position assurance (TPA) to reduce terminal back-outs and fully isolates contacts to prevent electrical arcing.
The connector housing is manufactured in China.
This model has 2 rows.
