| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 4.83mm |
| Length | 10.67mm |
| Model | FQB27P06TM |
| Width | 9.65mm |
| Mount Type | Surface |
| Series | QFET |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-263 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Channel Type | Type P |
| Maximum Continuous Drain Current Id | 27A |
| Maximum Drain Source Voltage Vds | 60V |
| Maximum Drain Source Resistance Rds | 70mΩ |
| Channel Mode | Enhancement |
| Maximum Power Dissipation Pd | 3.75W |
| Typical Gate Charge Qg @ Vgs | 33nC |
| Maximum Gate Source Voltage Vgs | -25, +25V |
| Forward Voltage Vf | -4V |

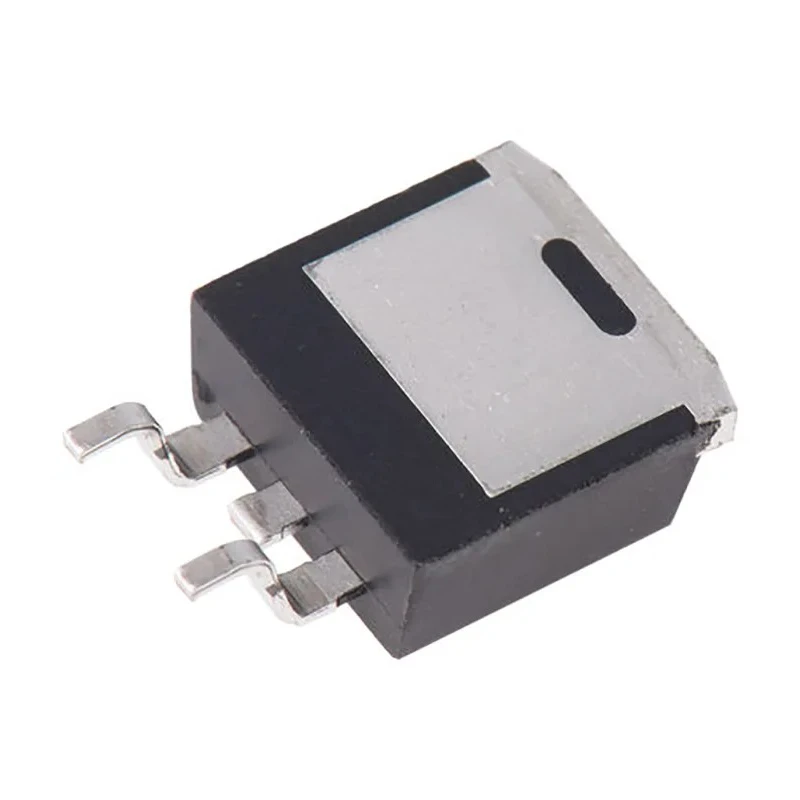

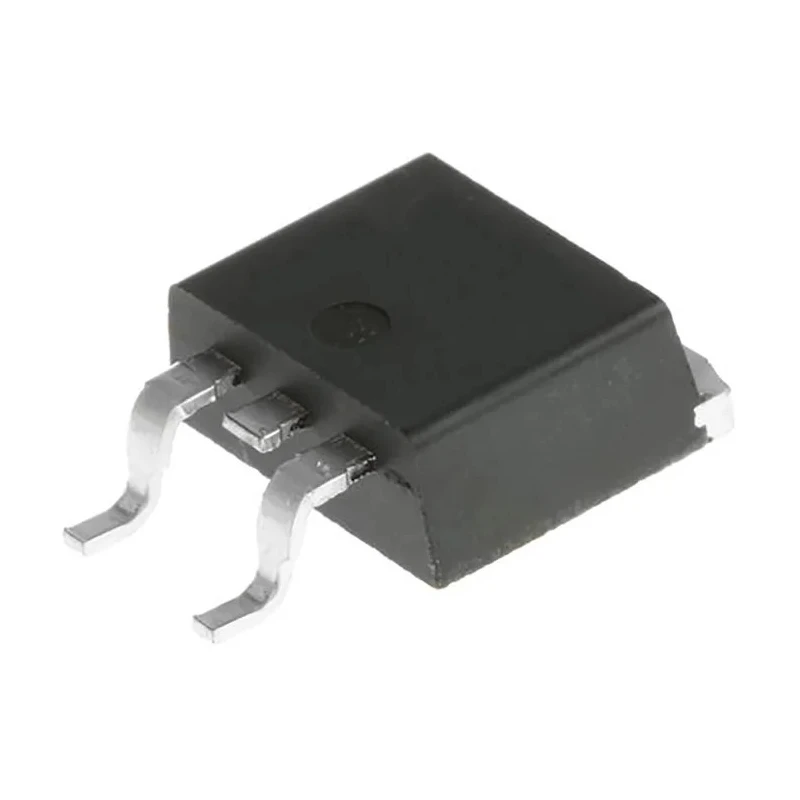

onsemi FQB27P06TM is a QFET Type P-Channel MOSFET designed for applications requiring robust and efficient power switching. It operates as an enhancement mode transistor with a continuous drain current of 27 A and a maximum drain-source voltage of 60 V. The compact 3-pin TO-263 surface mount package measures 10.67 mm length, 9.65 mm width, and 4.83 mm height.
Manufactured using ON Semiconductor's proprietary high cell density DMOS technology, the device offers low on-state resistance (70 mΩ max) resulting in lower conduction losses and high saturation current capability for demanding electronic circuits.
The transistor features a wide operating temperature range from -55°C minimum up to 175°C maximum, providing reliability across various environmental conditions. It has a maximum power dissipation rating of 3.75 W and supports a gate-source voltage range of -25 to +25 V.
With a typical gate charge of 33 nC at Vgs = 3V, the MOSFET ensures fast switching performance suitable for efficient power conversion. Forward voltage is specified at -4 V, and the device has three pins for surface mounting.
This MOSFET is ideal for industrial, laboratory, commercial, and automotive power control systems including load switching, DC/DC conversion, battery protection circuits, power management, and DC motor controls.
This MOSFET utilizes DMOS technology for rugged and reliable fast switching performance. It is designed with a high-density cell layout to minimize on-state resistance for superior efficiency. The device supports a maximum power dissipation of 3.75 W and a maximum operating temperature up to 175°C.
Typical gate charge is 33 nC at a gate-source voltage of 3 V, enabling efficient gate drive control. The MOSFET is suitable for load switching, power management control, DC/DC converters, battery protection, and DC motor control applications.
