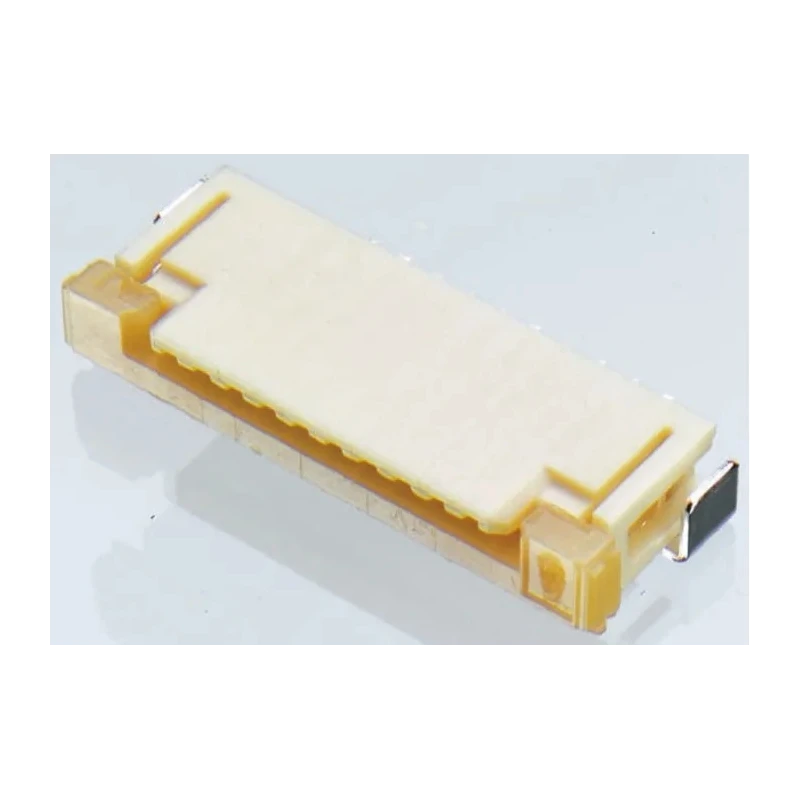

Molex 1 mm Pitch 18 Way Right Angle Female FPC Connector, Solder 52207-1860
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Surface |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | 52207 |
| Termination Type | Solder |
| Maximum Operating Temperature | 85°C |
| Sub Type | Easy-On FFC/FPC Connector |
| Minimum Operating Temperature | -20°C |
| Number of Rows | 1 |
| Pitch | 1mm |
| Contact Plating | Gold over Nickel |
| Number of Contacts | 18 |
| Contact Gender | Female |
| Connector Gender | Female |
| Contact Position | Top |
Key Features
- Features a 1 mm pitch and 18 contact positions ensuring precise connector alignment.
- Constructed with phosphor bronze contacts plated with gold over nickel for excellent conductivity and corrosion resistance.
- Right angle orientation with solder termination for secure PCB mounting and strain relief.
- Rated for 1 amp current and 125 V voltage operating between -20°C to 85°C.
- Includes a locking mechanism and nylon housing to ensure secure connections.
- Uses a slide type actuator in the Easy-On FPC connector design for easy insertion and removal.
- Ideal for automotive, consumer, medical, datacommunications, and mobile phone industries.
- Compact space-saving design suitable for tight packaging applications.
Product Description
Molex 52207-1860 is a 1 mm pitch Right Angle Female FPC Connector designed for surface mount PCB applications requiring secure and reliable electrical connections. Operable within a temperature range of -20°C to 85°C and rated for up to 1 amp current and 125 volts, it suits a wide range of electronic devices requiring compact FPC connectors.
The connector features phosphor bronze contacts plated with gold over nickel to ensure excellent conductivity and resistance to corrosion. Its nylon housing includes a slide type actuator and locking mechanism, providing Easy-On zero insertion force (ZIF) capability for repeatable cycling with minimal connector wear.
This 18-way, single-row connector uses a right angle orientation with contact positioned at the top, incorporating solder termination which offers strain relief to the PCB solder joints, enhancing mechanical retention.
The compact and space-saving design is ideal for use in automotive navigation systems, consumer electronics like digital cameras, medical devices such as patient monitors, mobile phones, GPS modules, and datacommunications equipment.
1 mm pitch with 18 contact positions for precise connections. Phosphor bronze contacts with gold over nickel plating for durability. Right angle surface mount with solder termination and PCB strain relief. Operating voltage 125 V and current rating 1 A.
Temperature range -20°C to 85°C for versatile environments. Slide type actuator and locking mechanism for secure and easy FPC insertion. Single row, top contact position with Easy-On ZIF design reduces wear. Ideal for automotive, consumer, medical, and communications applications.
Nylon housing for insulation and mechanical protection. Explore the range of Molex FPC Connectors for reliable PCB and wire housing solutions on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model features a 1 mm pitch and has 18 contact positions.
The maximum operating temperature for this connector is 85°C.
It uses solder termination, which provides strain relief to the PCB solder joints.
The contacts are made of phosphor bronze and are plated with gold over nickel, while the housing is constructed from nylon.
The connector is rated for a current of 1 amp and a voltage of 125 volts.
This connector has a right angle orientation, which is suitable for surface mount applications.
It operates within a temperature range of -20°C to 85°C.
It is ideal for automotive, consumer electronics, medical devices, and datacommunications applications.
It features a slide type actuator as part of the Easy-On design, allowing for easy insertion and removal.
The connector includes a locking mechanism that ensures secure connections during use.
The contact position is at the top, allowing for effective connection in tight spaces.
The solder termination enhances mechanical retention by providing strain relief to the PCB solder joints.
