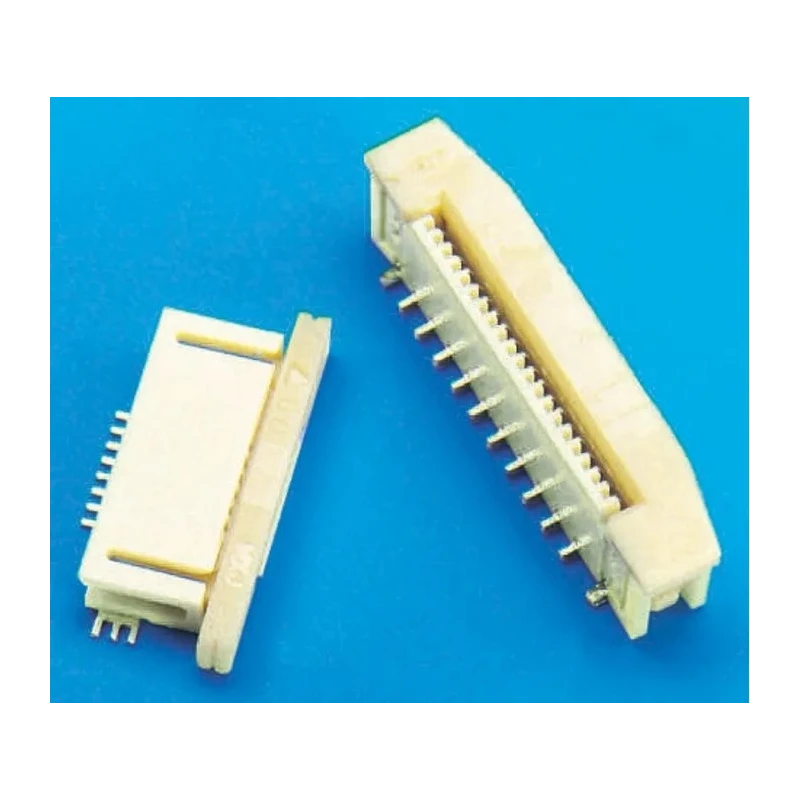

Molex 1 mm Pitch 20 Way Straight Female FPC Connector Solder Termination 52559-2052

Molex 52559-2052 is a 1 mm pitch 20 way straight female FPC (Flexible Printed Circuit) connector designed for surface mount technology with solder termination. This connector belongs to the 52559 series and features Easy On technology with Zero Insertion Force (ZIF) vertical contact positions, allowing for reliable and repeatable connections in compact electronic assemblies.

The connector is built with phosphor bronze contacts plated with gold over nickel, delivered within a nylon housing. It supports a voltage rating of 50 V AC and a current capacity of 500 mA, operated safely within a temperature range from -20°C to 85°C. It includes a locking mechanism and solder tabs for secure mounting and strain relief on printed circuit boards.

This FPC connector’s straight orientation and slide type actuator mechanism facilitate easy insertion while maintaining strong contact retention to withstand mechanical stresses and repeated connection cycles. These technical features make it suitable for automotive navigation and audio systems, digital cameras, datacommunications equipment, mobile phones, tablets, and medical devices including patient monitors.

Its compact size, durable materials, and reliable electrical performance meet the demanding requirements of industrial, consumer electronics, and telecommunications manufacturing sectors. The connector ensures secure electrical contacts and physical robustness essential for high-reliability applications.

The 1 mm pitch and 20 contacts accommodate high-density signal routing. Phosphor bronze contact material with gold plating ensures corrosion resistance and reliable conductivity. Solder termination and solder tabs maintain strong PCB fixation and mechanical strain relief.

Zero Insertion Force (ZIF) design reduces contact wear during repeated insertions. Locking mechanism secures the cable connection to prevent accidental disconnections. Compact nylon housing supports durability in tight packaging environments.

Wide operating temperature range supports diverse environmental conditions.

This product is ideal for engineers and manufacturers requiring reliable, small form factor connectors for flexible printed circuit wiring in electronics and electrical device assembly. Molex’s 52559-2052 ensures long product lifecycle and high performance in automotive, consumer, telecommunication, medical, and computing applications.

Explore more high quality FPC Connectors and related components in our Electronics & Electricals category for seamless integration into your projects and products.
