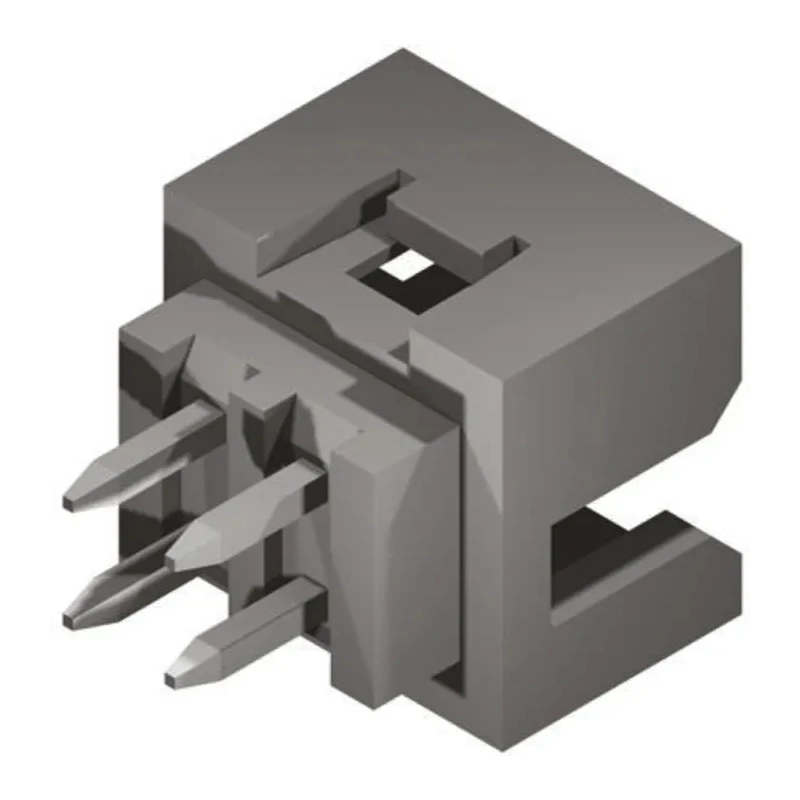

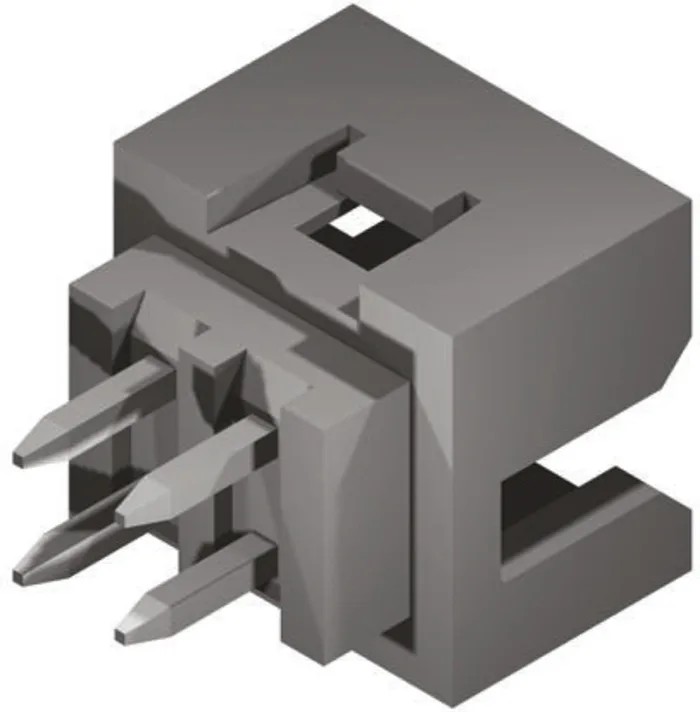

Molex Milli-Grid Series Shrouded Straight Through Hole PCB Header 26 Contacts 2 mm Pitch 2 Row 87831-2620

Molex 87831-2620 is a Milli-Grid series shrouded straight through hole PCB header featuring 26 male contacts arranged in 2 rows with a 2 mm pitch. This connector is designed for wire-to-board applications and ensures robust electrical and mechanical performance.

The housing is made from durable nylon material providing excellent insulation and mechanical stability. Contacts fabricated from phosphor bronze and plated with gold deliver high conductivity and corrosion resistance, supporting a current rating of 2A and voltage up to 125V.

Operating temperature ranges from -55°C to 105°C, making it suitable for demanding industrial and commercial environments. The connector includes a centre polarization slot and locking windows that facilitate secure mating and prevent incorrect insertion. Kinked solder tails offer excellent PCB retention during manufacturing, and locating pegs support automated assembly processes.

This PCB header is ideal for diverse applications including printers, fax machines, copiers, servers, networking hardware such as routers and switches, automotive audio systems, GPS devices, security alarms, set-top boxes, and digital media players.

The Molex Milli-Grid connector system offers a high density 2 x 2 mm grid pattern design allowing flexibility for board to board and cable to board connections. The 87831-2620 model represents the dual row variant with shrouded contacts for enhanced protection.

Constructed with nylon housing for durability and insulation. Phosphor bronze contacts plated with gold ensure corrosion resistance and electrical reliability. Supports a current rating of 2A and voltage rating of 125V for typical PCB applications.

Features a 2.5 mm tail pin length and 3.6 mm mating pin length for secure solder termination. Operates between -55°C to 105°C, suitable for diverse environmental conditions. Shrouded design protects contacts from damage and prevents mismating.

Includes centre polarization slot and locking windows for secure, error-proof connections. Kinked solder tails and locating pegs enable reliable PCB retention and automated insertion. Ideal for printers, copiers, servers, automotive audio, security systems, and digital media devices.
