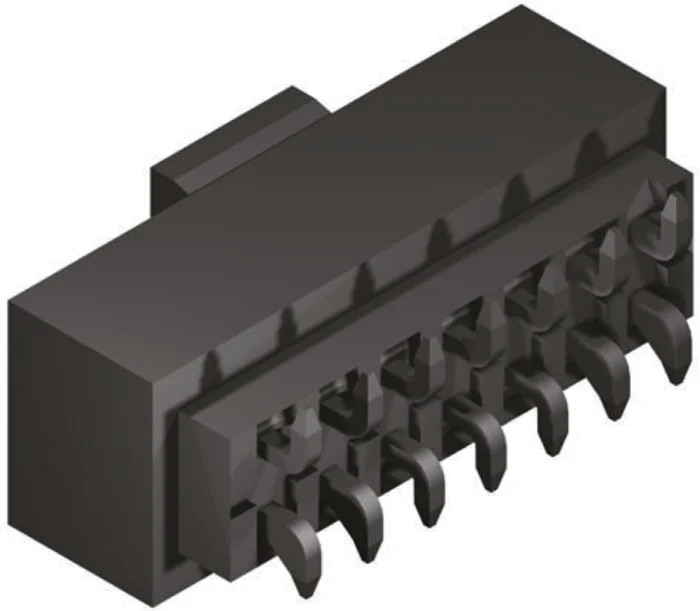

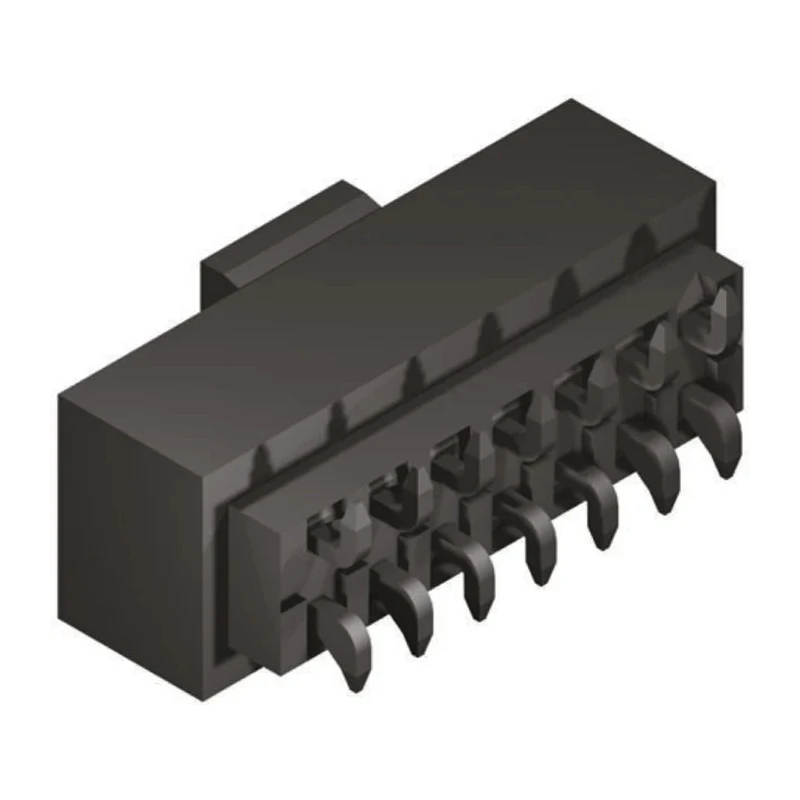

Molex Milli-Grid Series 8 Contact Straight Through Hole Shrouded PCB Header, 2 mm Pitch, 2 Row 87831-0820
Specifications
| Country of Origin | Singapore |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Orientation | Straight |
| Current | 2A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Phosphor Bronze |
| Series | Milli-Grid |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -55°C |
| Number of Rows | 2 |
| Pitch | 2mm |
| Contact Plating | Gold |
| Number of Contacts | 8 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 2.5mm |
| Mating Pin Length | 3.6mm |
Key Features
- The shrouded design provides protection to the contacts.
- Phosphor bronze contacts plated with gold ensure reliable conductivity.
- Kinked solder tails maintain strong retention on the PCB.
- Supports a current rating of 2 amperes and voltage rating of 125 volts.
- Operating temperature range is from -55°C to 105°C.
- Features a centre polarization slot to prevent mismating.
- Mount type is through hole with wire-to-board connector system.
- Tail pin length measures 2.5 mm and mating pin length 3.6 mm.
Product Description
Molex 87831-0820 Milli-Grid Series PCB Header is a high density, straight, shrouded connector designed for reliable wire-to-board applications. It features 8 male contacts arranged in 2 rows with a 2 mm pitch. Rated for 2A current and 125V, this through hole header uses phosphor bronze contacts with gold plating to ensure excellent conductivity and durability.
The shrouded design offers superior protection of the contacts from damage and the centre polarization slot prevents mismating, while centre or side locking windows promote secure mating connections. Kinked solder tails provide secure retention to the PCB, and locating pegs enable automatic insertion during assembly.
Operating within -55°C to 105°C, this connector accommodates various industrial, electronic, and commercial uses such as printers, copiers, servers, routers, automotive audio and GPS systems, security equipment, and digital media players.
The Molex Milli-Grid connector system features a dense 2 x 2 mm grid layout, enabling flexible design configurations for board-to-board and cable-to-board connections. Available in vertical and right-angled versions, it supports enhanced electrical and mechanical performance in compact electronic assemblies.
The shrouded design offers contact protection to improve reliability. Gold plated phosphor bronze contacts provide excellent conductivity. Kinked solder tails and locating pegs aid assembly and PCB retention. Centre polarization slot and locking windows ensure secure, accurate mating.
Wide operating temperature range supports varied environmental conditions. Suitable for diverse applications including automotive, security, and digital media devices. Current rating of 2A and voltage up to 125V support typical electronic circuit needs.
Through hole mount type ensures firm mechanical and electrical connection. Set a standard for your electronic designs with the reliable Molex 87831-0820 Milli-Grid PCB Header, ideal for demanding industrial and commercial applications.
Explore the full range of Molex PCB Headers and connectors available on EnvMart to meet your specific design and assembly requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header supports a current rating of 2 amperes and a voltage rating of 125 volts.
The operating temperature range is from -55°C to 105°C.
It features 8 male contacts arranged in 2 rows.
This model uses a through hole mount type for secure mechanical and electrical connections.
The contacts are made of phosphor bronze with gold plating, and the housing material is nylon.
The pitch of the contacts is 2 mm.
Yes, it features a centre polarization slot to prevent mismating.
The tail pin length measures 2.5 mm, while the mating pin length is 3.6 mm.
It supports a wire-to-board connector system.
The country of origin for this product is Singapore.
This model is suitable for various applications including printers, copiers, servers, routers, automotive audio systems, and digital media players.
The shrouded design provides contact protection, while kinked solder tails ensure strong retention on the PCB.
