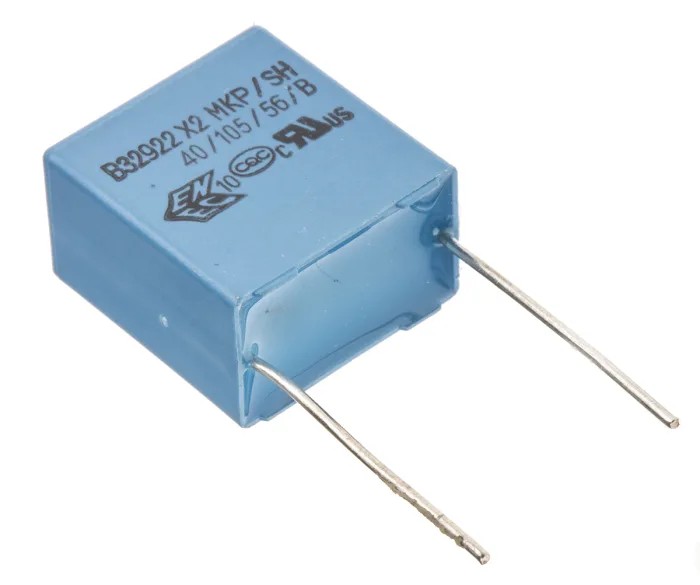

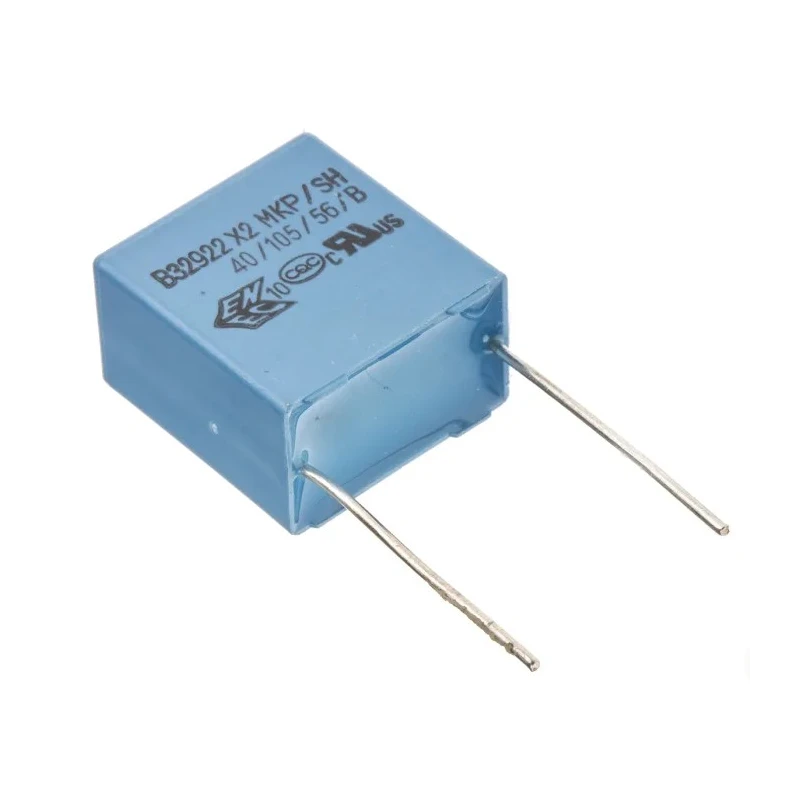

TDK Film Capacitor 680 nF 305V AC 305 V DC Through Hole 2 Pins B32922C3684M189

TDK B32922C3684M189 is a film capacitor designed for high-performance EMI suppression and filtering across various electronic equipment. It features a capacitance of 680 nF and is rated for 305 V AC and 305 V DC, making it suitable for both AC line and DC circuit applications. The capacitor employs a through hole mount type with two pins spaced 15 mm apart, facilitating reliable installation on printed circuit boards.

The component's compact size with 18 mm length, 18.5 mm height, and 11 mm width coupled with a maximum operating temperature of 110°C allows it to operate effectively within industrial and commercial environments. Its X2 suppression class design makes it compliant for use across the line while ensuring safety, though it must not be used where failure could expose users to electric shock.

The capacitor encapsulation includes a plastic epoxy resin case with UL 94 V-0 flame retardant rating, contributing to its durability and compliance with stringent safety standards such as RoHS and UL approvals. Its lead diameter of 0.8 mm lends itself to stable mechanical connections and electrical performance.

Applications include use in power supplies, industrial machinery, consumer electronics, laboratory instruments, and HVAC systems. The capacitor ensures noise reduction and suppresses electromagnetic interference in sensitive equipment.

Capacitance: 680 nF for effective noise filtering. Rated AC and DC voltage: 305 V for robust electrical performance. Through hole mount with pin pitch of 15 mm for secure installation. Compact dimensions suitable for space-constrained designs.

High operating temperature up to 110°C for reliability under stress. X2 class suppression capacitor designed for across-the-line applications. Epoxy resin plastic case with UL 94 V-0 rating for fire safety. RoHS and UL certified to meet industrial and safety standards.

Two-pin lead configuration with 0.8 mm diameter. Ideal for industrial, HVAC, manufacturing, laboratory, and commercial use cases. Explore the extensive range of Film Capacitors at EnvMart to find components tailored for your electronic assemblies and industrial needs.
