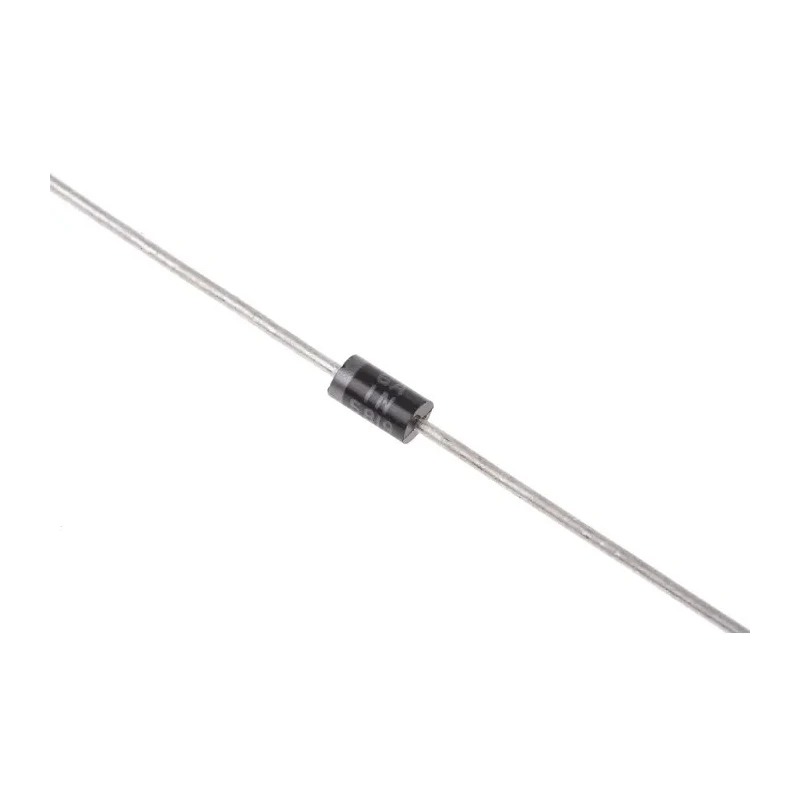

onsemi Schottky Diode 40 V 1 A, Through Hole, DO-41 Package 1N5819RLG
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.7mm |
| Brand | onsemi |
| Height | 2.7mm |
| Length | 5.2mm |
| Model | 1N5819RLG |
| Finish | All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable |
| Gross Weight | 0.4 Gram |
| Width | 2.7mm |
| Mount Type | Through Hole |
| Series | 1N5819 |
| Maximum Operating Temperature | 125°C |
| Case | Epoxy, Molded |
| Package Type | DO-41 |
| Minimum Operating Temperature | -65°C |
| Polarity | Cathode Indicated by Polarity Band |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 1mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 25A |
| Maximum Forward Voltage Vf | 0.9V |
| Lead Temperature for Soldering Purposes | 260°C Max for 10 Seconds |
Key Features
- Maximum continuous forward current of 1 A ensures reliable performance under typical loads.
- Peak reverse repetitive voltage rating of 40 V guarantees effective blocking capability.
- Compact DO-41 epoxy molded package with dimensions 5.2 mm length and 2.7 mm diameter.
- Low forward voltage drop of 0.9 V enhances energy efficiency in applications.
- Operating temperature range from -65°C to 125°C suits diverse operating conditions.
- Cathode polarity is indicated by a polarity band for easy identification during installation.
- Constructed with corrosion-resistant external surfaces and leads designed for easy soldering.
- Leads tolerate soldering temperatures up to 260°C for 10 seconds without damage.
Product Description
The onsemi 1N5819RLG is a high-performance Schottky diode designed for applications requiring low forward voltage drop and fast switching capabilities. Packaged in a DO-41 molded epoxy case, this diode supports a maximum continuous forward current of 1 ampere and a peak reverse repetitive voltage of 40 volts, making it ideal for efficient rectification in power supplies and electronic circuits.
Featuring metal-to-silicon construction with chrome barrier metal, oxide passivation, and metal overlap contact, the 1N5819RLG diode offers extremely low forward voltage (Vf) and low stored charge, resulting in low power loss and high efficiency. The component is robust with corrosion-resistant external surfaces and terminal leads suitable for through-hole mounting, facilitating easy assembly and soldering processes.
This diode operates reliably over a wide temperature range from -65°C to 125°C and supports peak non-repetitive surge currents up to 25 A. The cathode polarity is clearly marked with a polarity band for correct orientation. The device is well-suited for use in high frequency inverters, free wheeling diodes, and polarity protection circuits.
Maximum continuous forward current of 1 A. Peak reverse repetitive voltage of 40 V. Low forward voltage of 0.9 V for efficiency. Wide operating temperature range from -65°C to 125°C. Epoxy molded DO-41 package with 5.2 mm length and 2.7 mm diameter.
Corrosion-resistant external surfaces and readily solderable leads. Soldering temperature up to 260°C for 10 seconds. Ideal for industrial, electronic, and power supply applications.
This product is manufactured to high industrial standards by onsemi and is widely used in electronics manufacturing, power conversion, telecommunications, and other industrial sectors requiring dependable rectification components.
Explore other semiconductor components and Schottky diodes in the EnvMart catalog to meet your design and sourcing requirements.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the 1N5819RLG is 1 A, ensuring reliable performance under typical loads.
This model has a peak reverse repetitive voltage rating of 40 V, which guarantees effective blocking capability.
The forward voltage drop of this diode is 0.9 V, enhancing energy efficiency in applications.
The operating temperature range for the 1N5819RLG is from -65°C to 125°C, making it suitable for diverse operating conditions.
The DO-41 package of this diode has a length of 5.2 mm and a diameter of 2.7 mm.
The cathode polarity is indicated by a polarity band for easy identification during installation.
The leads of this diode can tolerate soldering temperatures up to 260°C for 10 seconds without damage.
This model supports through-hole mounting, facilitating easy assembly and soldering processes.
The peak non-repetitive forward surge current for this diode is up to 25 A.
The 1N5819RLG is constructed with metal-to-silicon technology, featuring chrome barrier metal and oxide passivation.
The gross weight of this diode is 0.4 grams.
This diode is well-suited for applications such as high frequency inverters, free wheeling diodes, and polarity protection circuits.
