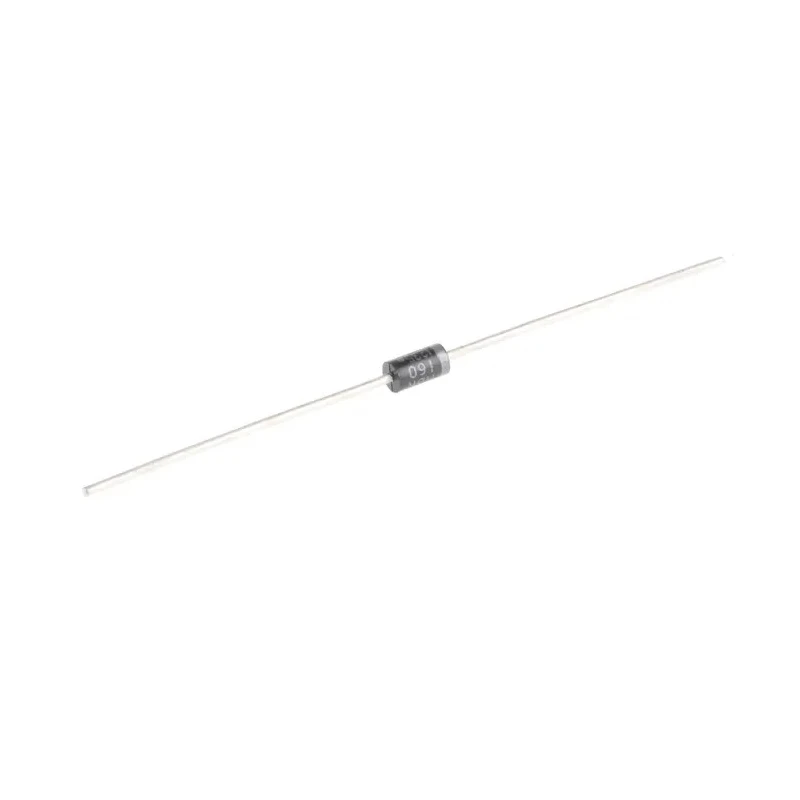

onsemi 60 V 1 A Schottky Diode, 2-Pin DO-41 Package MBR160RLG
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.7mm |
| Brand | onsemi |
| Height | 2.7mm |
| Length | 5.2mm |
| Model | MBR160RLG |
| Finish | All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable |
| Gross Weight | 0.4 gram (approximately) |
| Width | 2.7mm |
| Mount Type | Through Hole |
| Series | MBR160 |
| Maximum Operating Temperature | 150°C |
| Case | Epoxy, Molded |
| Package Type | DO-41 |
| Minimum Operating Temperature | -65°C |
| Polarity | Cathode Indicated by Polarity Band |
| Marking | B150, B160 |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 60V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 500μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 25A |
| Maximum Forward Voltage Vf | 1V |
| Lead Surface Temperature for Soldering Purposes | 260 °C Max. for 10 Seconds |
| Schottky barrier diode,MBR160 1A 60VBrand | ON Semiconductor |
| onsemi Diode, MBR160Brand | ON Semiconductor |
Key Features
- Features low forward voltage drop of 1 V ensuring high efficiency.
- Maximum continuous forward current rating of 1 ampere.
- Peak reverse repetitive voltage of 60 volts supports robust operation.
- Small 2.7 mm diameter DO-41 epoxy molded case ensuring compact size.
- Operates reliably in temperature range from -65°C to 150°C.
- Low peak reverse current of 500 μA minimizes leakage losses.
- Epoxy molded case provides corrosion resistance and durable finish.
- Lead terminals easily solderable with max soldering temperature of 260 °C for 10 seconds.
Product Description
onsemi MBR160RLG Schottky diode is a high performance, single diode in a 2-pin DO-41 through-hole package rated for a maximum continuous forward current of 1 A and a reverse voltage of 60 V. Its advanced epitaxial construction with oxide passivation and metal overlap contact provides low forward voltage and high efficiency.
This Schottky diode is ideal for use in low voltage, high frequency inverters, free wheeling diodes, and polarity protection in a variety of industrial and automotive applications. It provides low reverse current and low stored charge, which translate into reduced switching losses and improved power conversion efficiency.
The diode case is epoxy molded with corrosion-resistant finish, designed for durability and easy soldering to circuit boards. It operates reliably across a wide temperature range from -65°C to 150°C, suitable for demanding operating environments.
Mechanical dimensions include a diameter and width of 2.7 mm, length of 5.2 mm, and a typical weight of approximately 0.4 grams. Markings on the device include B150 and B160 for identification. The cathode is indicated by a polarity band for quick visual identification during assembly.
Low forward voltage drop of 1 V for high efficiency operation. Maximum forward surge current of 25 A for transient endurance. Peak reverse current limited to 500 μA to reduce leakage. Automotive standard AEC-Q101 compliant for vehicular applications.
Epoxy molded package for mechanical and environmental protection.
This diode is supplied in plastic bags containing 1000 units each, suitable for mass PCB assembly processes. It is a Pb-free compliant component suitable for environmentally-conscious manufacturing.
Widely used in electronic manufacturing, power supply design, automotive electronics, and industrial control systems, this onsemi MBR160RLG provides reliability and performance in a compact through-hole form factor.
Explore more semiconductor products and Schottky diode solutions available at EnvMart for your electronic component needs.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current rating of this Schottky diode is 1 ampere.
The peak reverse repetitive voltage for the MBR160RLG is 60 volts.
This diode has a low forward voltage drop of 1 volt, ensuring high efficiency operation.
It operates reliably in a temperature range from -65°C to 150°C.
The diode has a diameter and width of 2.7 mm, a length of 5.2 mm, and a typical weight of approximately 0.4 grams.
This Schottky diode comes in a 2-pin DO-41 through-hole package.
The peak reverse current is limited to 500 μA, which helps minimize leakage losses.
The maximum forward surge current for this diode is 25 A, allowing for transient endurance.
Yes, it is compliant with the automotive standard AEC-Q101, making it suitable for vehicular applications.
The diode features an epoxy molded case with corrosion-resistant finish and readily solderable terminal leads.
The cathode is indicated by a polarity band for quick visual identification during assembly.
This Schottky diode is ideal for use in low voltage, high frequency inverters, free wheeling diodes, and polarity protection in various industrial and automotive applications.
