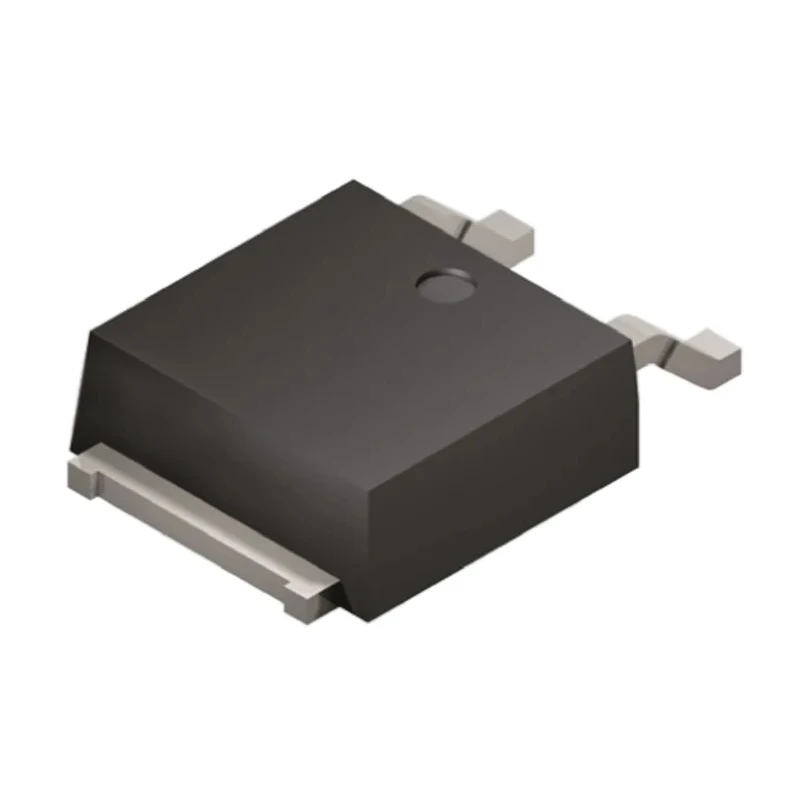

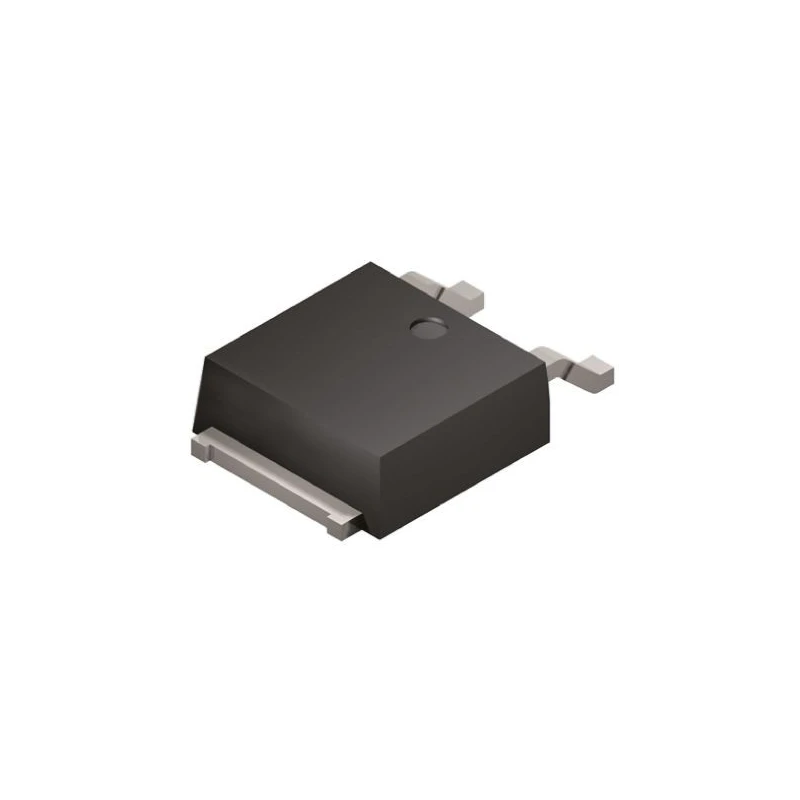

Vishay Surface Mount 30 V 12 A Schottky Diode 3-Pin DPAK Package VS-12CWQ03FNPBF
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 6.73mm |
| Brand | Vishay |
| Height | 2.39mm |
| Length | 6.73mm |
| Model | VS-12CWQ03FNPBF |
| Width | 6.22mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 150°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Maximum Continuous Forward Current If | 12A |
| Peak Reverse Repetitive Voltage Vrrm | 30V |
| Diode Configuration | Common Cathode |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 3mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 320A |
| Maximum Forward Voltage Vf | 0.55V |
Key Features
- Offers low forward voltage drop of 0.55 V for efficient power conversion.
- Features fast switching with extremely quick reverse recovery times.
- Operates reliably in temperatures from -55°C up to 150°C.
- Designed with common cathode diode configuration suitable for power applications.
- Peak non-repetitive forward surge current capacity up to 320 A.
- Constructed in TO-252 (DPAK) package for surface mounting on PCBs.
Product Description
Vishay VS-12CWQ03FNPBF is a high-performance Schottky diode designed for surface mount applications requiring fast switching and low power losses. This 3-pin diode in a TO-252 (DPAK) package provides a maximum continuous forward current of 12 A and a peak reverse repetitive voltage of 30 V, making it ideal for efficient power rectification in electronic circuit designs.
Schottky diodes are widely used in industrial power supplies, automotive electronics, telecommunications, and consumer electronics where low forward voltage and quick switching speed are critical for improved efficiency and reduced heat generation.
The diode configuration is common cathode, suitable for rectifier circuits and freewheeling diode applications. It supports a peak non-repetitive forward surge current of 320 A, enabling it to withstand transient high-current conditions.
The VS-12CWQ03FNPBF features compact physical dimensions (length 6.73 mm, width 6.22 mm, height 2.39 mm) ensuring space-efficient PCB layouts. It operates reliably over a wide temperature range from -55°C to 150°C, complying with industrial standard operating limits.
Typical applications include power converters, switching regulators, and reverse polarity protection in industrial and commercial electronic assemblies. This diode does not carry specific automotive or approval certifications but meets general industry standards for Schottky rectifiers.
Offers low forward voltage drop of 0.55 V for efficient power conversion. Features fast switching with extremely quick reverse recovery times. Operates reliably in temperatures from -55°C up to 150°C. Designed with common cathode diode configuration suitable for power applications.
Peak non-repetitive forward surge current capacity up to 320 A. Compact dimensions: length 6.73 mm, width 6.22 mm, height 2.39 mm. Constructed in TO-252 (DPAK) package for surface mounting on PCBs. Explore more Vishay semiconductor components and Schottky diode solutions in the Electronics & Electricals category at EnvMart.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the VS-12CWQ03FNPBF is 12 A.
This diode has a peak reverse repetitive voltage of 30 V.
The dimensions of the TO-252 (DPAK) package are 6.73 mm in length, 6.22 mm in width, and 2.39 mm in height.
The forward voltage drop for the VS-12CWQ03FNPBF is 0.55 V.
It has a peak non-repetitive forward surge current capacity of 320 A.
This model operates reliably in temperatures ranging from -55°C to 150°C.
The diode configuration is common cathode, making it suitable for rectifier circuits.
The peak reverse current for the VS-12CWQ03FNPBF is 3 mA.
Typical applications include power converters, switching regulators, and reverse polarity protection in electronic assemblies.
It is designed for surface mounting on printed circuit boards (PCBs).
The low forward voltage drop of 0.55 V contributes to efficient power conversion and reduced heat generation.
The VS-12CWQ03FNPBF is manufactured in India.
