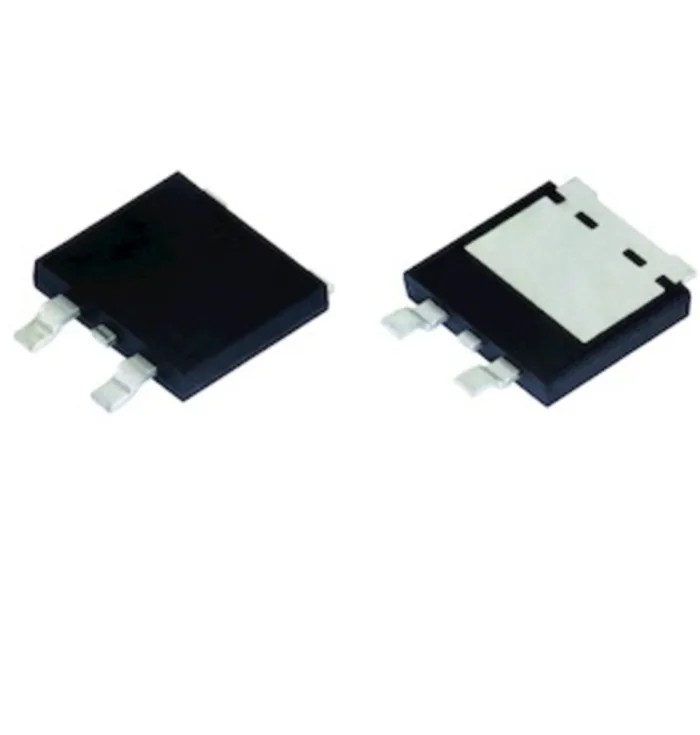

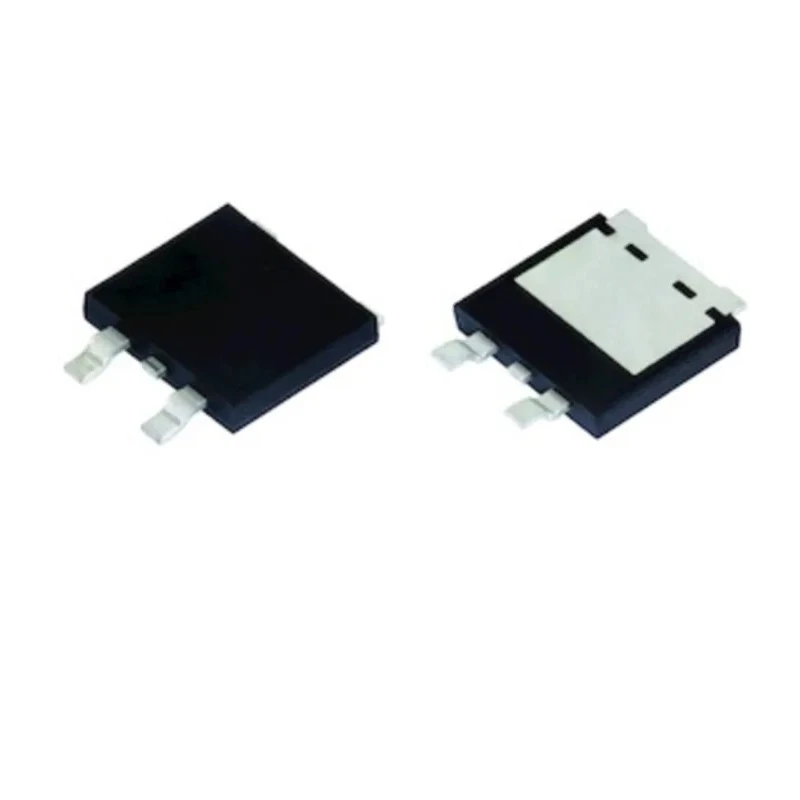

Vishay Standard Rectifier Diode 600 V 12 A Surface Mount TO-263 Package SE12DLJHM3/I
Specifications
| Country of Origin | China |
|---|---|
| Brand | Vishay |
| Height | 1.8mm |
| Length | 12.93mm |
| Model | SE12DLJHM3/I |
| Width | 10.2mm |
| Mount Type | Surface |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-263 |
| Minimum Operating Temperature | -55°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 12A |
| Peak Reverse Repetitive Voltage Vrrm | 600V |
| Diode Configuration | Single |
| Rectifier Type | Standard |
| Peak Reverse Current Ir | 70μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 165A |
| Maximum Forward Voltage Vf | 1V |
| Peak Reverse Recovery Time trr | 300ns |
Key Features
- Operates with a maximum continuous forward current of 12 A.
- Handles peak reverse repetitive voltage up to 600 V.
- Single diode configuration with standard rectifier type and 3 pins.
- Maximum forward voltage is 1 V for low power loss.
- Wide operating temperature range from -55°C to 175°C.
- Peak surge current rating of 165 A supports transient conditions.
- Fast peak reverse recovery time of 300 ns enables high-frequency switching.
- Compact TO-263 surface mount package with length 12.93 mm, width 10.2 mm, height 1.8 mm.
Product Description
Vishay SE12DLJHM3/I is a high-performance standard rectifier diode designed for surface mount applications with a TO-263 3-pin package. It supports a maximum continuous forward current of 12 A and a peak reverse repetitive voltage of 600 V, making it suitable for robust industrial and automotive power circuits.
This single diode configuration features a low forward voltage drop of 1 V, which minimizes power losses and improves efficiency in high-frequency inverters, DC/DC converters, and polarity protection circuits. The diode maintains reliable operation over a wide temperature range from -55°C to 175°C, supporting demanding environments.
With a peak non-repetitive forward surge current rating of 165 A and a fast peak reverse recovery time of 300 nanoseconds, the SE12DLJHM3/I diode ensures rapid switching and resilience during transient events. Its compact TO-263 package dimensions (12.93 mm length, 10.2 mm width, and 1.8 mm height) facilitate automated placement in high-density circuit layouts.
This diode complies with the automotive standard AEC-Q101, ensuring high reliability in automotive electronics, industrial controls, power supplies, and consumer electronics. The device is ideal for use in applications including inverters, freewheeling diodes, DC/DC converters, and polarity protection.
Maximum continuous forward current of 12 A. Peak reverse repetitive voltage 600 V. Standard single diode configuration. Low forward voltage drop of 1 V. Operating temperature from -55°C to 175°C. Fast reverse recovery time of 300 ns.
Peak surge current 165 A. Compact TO-263 3-pin surface mount package. Automotive AEC-Q101 approved.
The Vishay SE12DLJHM3/I diode offers a reliable and efficient solution for high-frequency power electronic applications in industrial, automotive, and consumer electronics sectors. Browse Vishay semiconductor components on EnvMart for comprehensive diode and rectifier options.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of this model is 12 A.
The maximum forward voltage drop is 1 V, which helps minimize power loss.
This diode operates over a wide temperature range from -55°C to 175°C.
The peak non-repetitive forward surge current rating is 165 A.
The TO-263 package has dimensions of 12.93 mm in length, 10.2 mm in width, and 1.8 mm in height.
This model features a single diode configuration.
It complies with the automotive standard AEC-Q101, ensuring reliability in automotive applications.
The TO-263 package has a pin count of 3.
