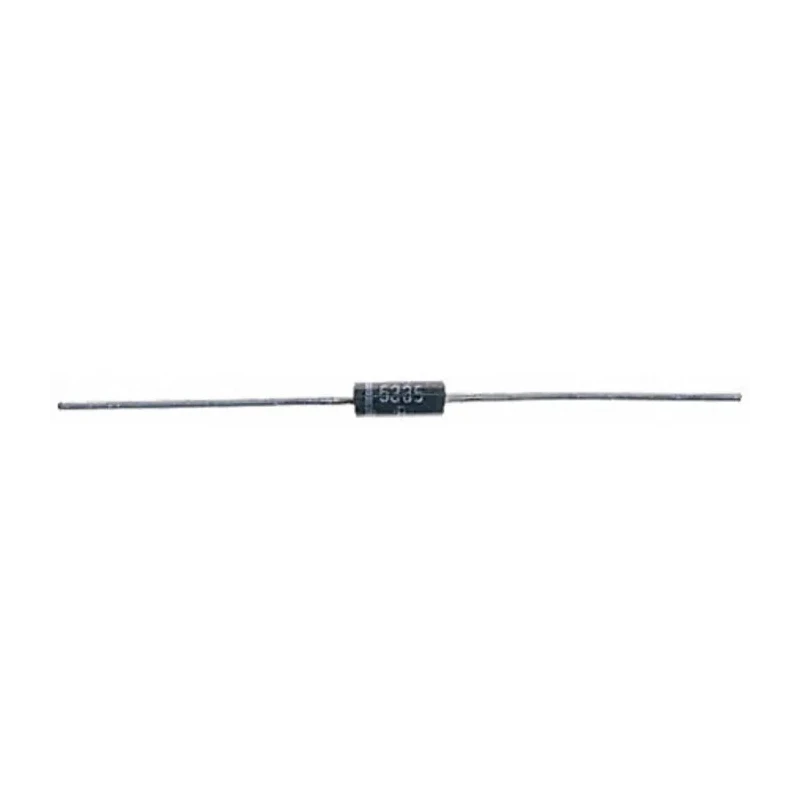

onsemi 400 V 1 A General Purpose Fast Recovery Diode 2-Pin DO-41 1N4936RLG
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 2.7mm |
| Brand | onsemi |
| Height | 2.7mm |
| Length | 5.2mm |
| Model | 1N4936RLG |
| Finish | All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable |
| Gross Weight | 0.4 gram (approximately) |
| Width | 2.7mm |
| Mount Type | Through Hole |
| Series | 1N4936 |
| Maximum Operating Temperature | 150°C |
| Case | Epoxy, Molded |
| Package Type | DO-41 |
| Minimum Operating Temperature | -65°C |
| Polarity | Cathode Indicated by Polarity Band |
| Marking | 1N4933, 1N4934, 1N4935, 1N4936, 1N4937 |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 1A |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 5μA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 30A |
| Maximum Forward Voltage Vf | 1.2V |
| Peak Reverse Recovery Time trr | 300ns |
| Lead Temperature for Soldering Purposes | 260°C Max. for 10 Seconds |
| onsemi 400V 1A, Silicon Junction Diode, 2-Pin DO-41 1N4936Brand | ON Semiconductor |
| Fairchild 400V 1A, Silicon Junction Diode, 2-Pin DO-41 1N4936Brand | Fairchild Semiconductor |
Key Features
- Axial-lead through-hole mounting provides easy integration in electronic circuits.
- Maximum continuous forward current of 1 Ampere ensures reliable power handling.
- Peak reverse repetitive voltage rating of 400 Volts allows operation under high voltage conditions.
- Fast recovery time of 300 nanoseconds improves switching performance in power supplies.
- Epoxy molded case ensures durability and corrosion resistance for long service life.
- Operating temperature range from -65°C up to 150°C supports various application environments.
- Low peak reverse current of 5 microamperes minimizes leakage in circuits.
- Lead temperature max 260°C for soldering ensures robust assembly process.
Product Description
Brand onsemi model 1N4936RLG is a general purpose fast recovery diode designed to handle 1 Amp continuous forward current at voltages up to 400 V. Packaged in a reliable 2-pin DO-41 epoxy molded axial-lead case, this diode is suited for usage in power supplies, converters, inverters, and freewheeling diode applications that demand fast switching and high efficiency.
The diode's peak reverse recovery time of 300 nanoseconds and low leakage current enhance switching performance and reduce energy loss in high frequency circuits up to 250 kHz. Its wide operating temperature range from -65°C to 150°C makes it adaptable for industrial, commercial, and automotive electronic systems.
The robust epoxy molded case provides excellent corrosion resistance, and its terminals are readily solderable with a maximum lead temperature of 260°C for up to 10 seconds. Physical dimensions include a length of 5.2 mm and diameter of 2.7 mm, allowing compact and versatile circuit design integration.
This diode is marked with a cathode polarity band to aid correct installation in axial lead configurations. Typical applications include DC power supplies, inverters, ultrasonic systems, choppers, and low RF interference circuits.
Axial-lead, through-hole mounting for easy installation. Fast recovery rectifier with 300 ns recovery time for high frequency switching. Rated for 1 A continuous forward current and 400 V peak reverse voltage. Epoxy molded case offering corrosion resistance and durability.
Wide operating temperature range from -65°C to 150°C for versatility. Low peak reverse current minimizes leakage and power loss. Lead terminals designed for soldering at 260°C maximum temperature. Compact dimensions suitable for space-constrained applications.
Marked polarity for correct axial lead placement. Ideal for industrial, laboratory, HVAC, and automotive electronics systems. Explore the extensive range of semiconductor components available at EnvMart for your advanced electronic and power applications.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for the 1N4936RLG diode is 1 Ampere.
This model has a peak reverse repetitive voltage rating of 400 Volts, allowing it to operate under high voltage conditions.
The peak reverse recovery time of this diode is 300 nanoseconds, which enhances its switching performance in power supplies.
The diode has a length of 5.2 mm and a diameter of 2.7 mm, making it suitable for compact circuit designs.
The operating temperature range for the 1N4936RLG is from -65°C to 150°C, which supports various application environments.
This diode is designed for through-hole mounting, which facilitates easy integration into electronic circuits.
The maximum lead temperature for soldering the 1N4936RLG is 260°C for up to 10 seconds.
The peak reverse current for the 1N4936RLG is 5 microamperes, which helps minimize leakage in circuits.
The diode is packaged in an epoxy molded case, which provides corrosion resistance and durability.
This diode is suitable for use in DC power supplies, inverters, ultrasonic systems, choppers, and low RF interference circuits.
The diode is marked with a cathode polarity band to aid in correct installation in axial lead configurations.
The gross weight of this diode is approximately 0.4 grams.
