Wurth Elektronik WE-PD2 Unshielded Wirewound Surface Mount Inductor with Ferrite Core 68μH ±10% 640mA 744774168
Specifications
| Country of Origin | China |
|---|---|
| Brand | Wurth Elektronik |
| Height | 4.5mm |
| Length | 5.8mm |
| Depth | 5.2mm |
| Packaging | Tape & Reel |
| Series | WE-PD2 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 68μH |
| Standards/Approvals | RoHS |
| Package/Case | Surface Mount |
| Maximum DC Current | 640mA |
| Maximum DC Resistance | 460mΩ |
| Inductance Tolerance | ±10 % |
| Termination Style | Tin/Copper |
| Maximum Self Resonant Frequency | 10MHz |
| Automotive Standard | AEC-Q200 |
Key Features
- The inductor provides a tolerance of ±10% for consistent performance.
- Supports a maximum operating temperature of 125°C for high reliability.

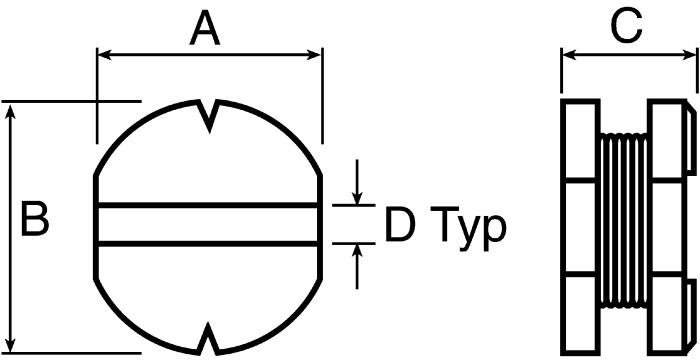

- Features a compact surface mount package measuring 5.8 x 5.2 x 4.5 mm.
- Maximum DC resistance is 460mΩ, enabling efficient energy management.
- Core is made of ferrite material with a self-resonant frequency up to 10 MHz.
- Non-shielded design allows for optimized integration in switching regulators and DC/DC converters.
- Rated to automotive standard AEC-Q200 for quality assurance.
- Termination style utilizes tin/copper to ensure strong solder joints.
Product Description
Wurth Elektronik 744774168 is an unshielded wirewound surface mount inductor from the WE-PD2 series. Constructed with a ferrite core, it offers an inductance of 68μH ±10% and supports a maximum DC current of 640mA, suitable for demanding power applications. Its compact size of 5.8mm length, 5.2mm depth, and 4.5mm height makes it ideal for space-constrained PCB layouts.
This surface mount inductor complies with the RoHS directive and automotive standard AEC-Q200, ensuring high reliability and environmental compliance. The tin/copper termination style facilitates secure and consistent reflow soldering during manufacturing. With a maximum operating temperature of 125°C and a DC resistance of 460mΩ, this inductor optimizes efficiency in switching regulators, integrated DC/DC converters, and power management circuits.
The WE-PD2 Series inductors are designed for high current capability and applications including computing devices, laptops, mobile phones, and pagers. Its ferrite core provides stable inductance characteristics and maximum self-resonant frequency up to 10 MHz supports high-frequency operation.
The inductor delivers a tolerance of ±10% for reliable circuit behavior. Compact form factor enhances efficient PCB usage. Surface mount packaging with tape & reel enables automated assembly. Suitable for industrial, automotive, telecommunications, and consumer electronics.
Open frame design allows better thermal management. Non-shielded configuration reduces weight and cost while maintaining performance. Meets strict quality standards for durability under temperature and electrical stress.
Ideal for integration into switching regulators and efficient DC/DC converters.
This high-quality Wurth Elektronik inductor is an excellent component for professionals engaged in electronic circuit design and manufacturing. It enhances performance and reliability across a broad spectrum of industrial and commercial applications.
Explore more products in the Surface Mount Inductor category and other Wurth Elektronik components to meet diverse engineering requirements with EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this inductor is 68μH with a tolerance of ±10%.
It supports a maximum DC current of 640mA, making it suitable for demanding power applications.
The inductor measures 5.8mm in length, 5.2mm in depth, and 4.5mm in height.
The maximum operating temperature is 125°C, which supports high reliability in various applications.
The core material of this inductor is ferrite, which contributes to its performance characteristics.
The maximum DC resistance is 460mΩ, allowing for efficient energy management.
It utilizes a tin/copper termination style to ensure strong solder joints during assembly.
The maximum self-resonant frequency is up to 10 MHz, supporting high-frequency operation.
Yes, it complies with the RoHS directive and the automotive standard AEC-Q200 for quality assurance.
This model is packaged in tape & reel, facilitating automated assembly processes.
It is suitable for applications in computing devices, laptops, mobile phones, pagers, and power management circuits.
This inductor is part of the WE-PD2 series, designed for high current capability.
