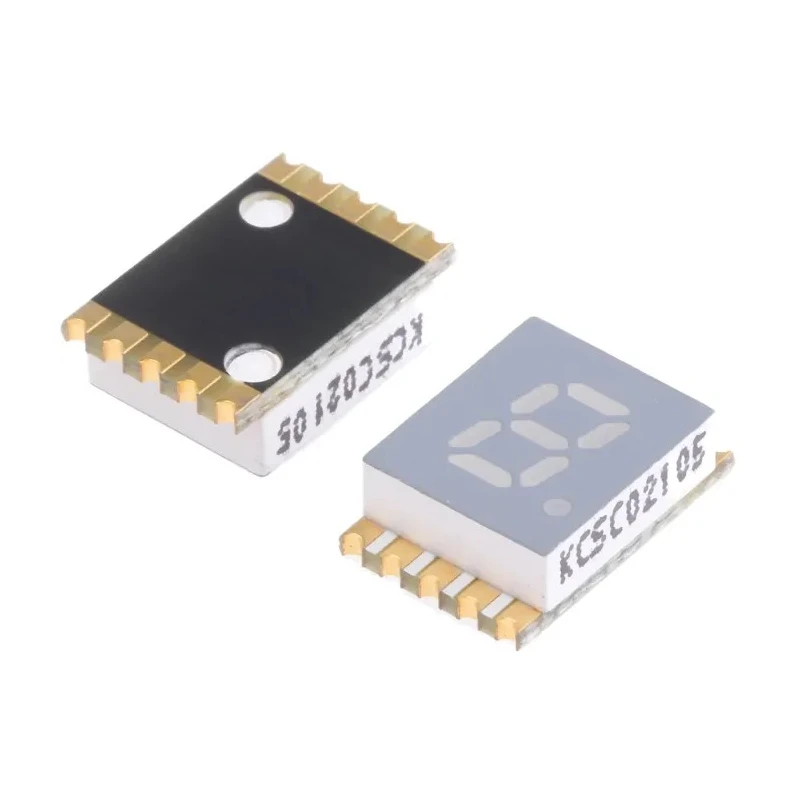

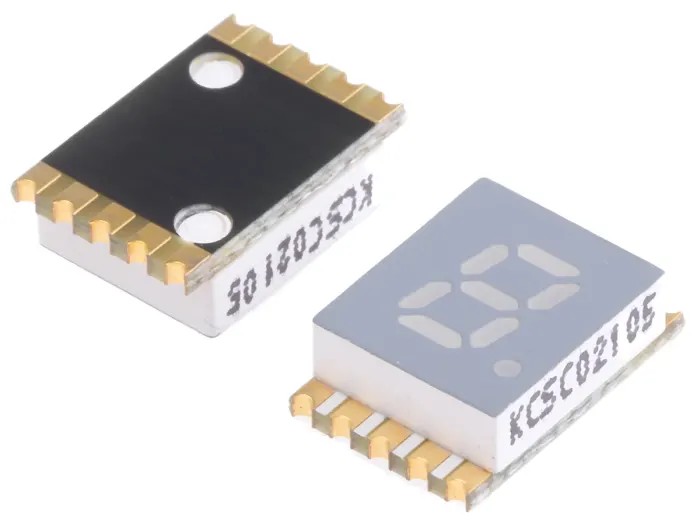

Kingbright 1 Digit 7 Segment Red LED Display Cathode 30mcd Luminous Intensity Right Side Decimal Orientation KCSC02-105

Kingbright KCSC02-105 is a high-performance 1-digit 7 segment LED display designed for reliable numeric display in electronic circuit applications. It features a red LED color with a luminous intensity of 30mcd, making the digits clear and easily readable under various ambient lighting.

The display uses a common cathode connection and is suitable for surface mounting on printed circuit boards, enabling efficient integration into electronic products. The character dimensions include a height of 5.1mm and width of 3.2mm, with the decimal point positioned on the right side for precise numeric formatting.

Designed for durability, the display includes a grey face with white segments for excellent contrast and character quality. Its rugged mechanical design supports use in industrial, laboratory, and commercial electronic displays where long-lasting, visually distinct numeric output is needed.

Operating at a forward voltage of 2V and maximum forward current of 30mA, the display maintains low power consumption with a maximum power dissipation of 75mW. It withstands operating temperatures ranging from -40°C to 85°C, suitable for open environments and harsh conditions.

This Kingbright LED display complies with RoHS environmental standards and is manufactured in China, reflecting quality control and safety adherence. It is ideal for use in electronic dashboards, instrumentation panels, HVAC controls, and other device status indicators.

The LED display features a single character with 7 segments for clear digit representation. Emits red light with a luminous intensity of 30 millicandela, ensuring visibility in diverse lighting conditions. Surface mount design with cathode common connection facilitates easy PCB installation.

Character height measures 5.1 mm with a right side decimal orientation for precise numeric displays. Operates efficiently with a forward voltage of 2 V and a current of 30 mA, with maximum power dissipation of 75 mW. Rugged grey face construction with white segments improves character appearance and durability.

Wide operating temperature range from -40°C to 85°C makes it suitable for commercial and industrial environments. Compliant with RoHS standards, ensuring environmental safety and regulatory adherence. Explore more in our Electronics Components category for other LED Displays and modules at EnvMart.
