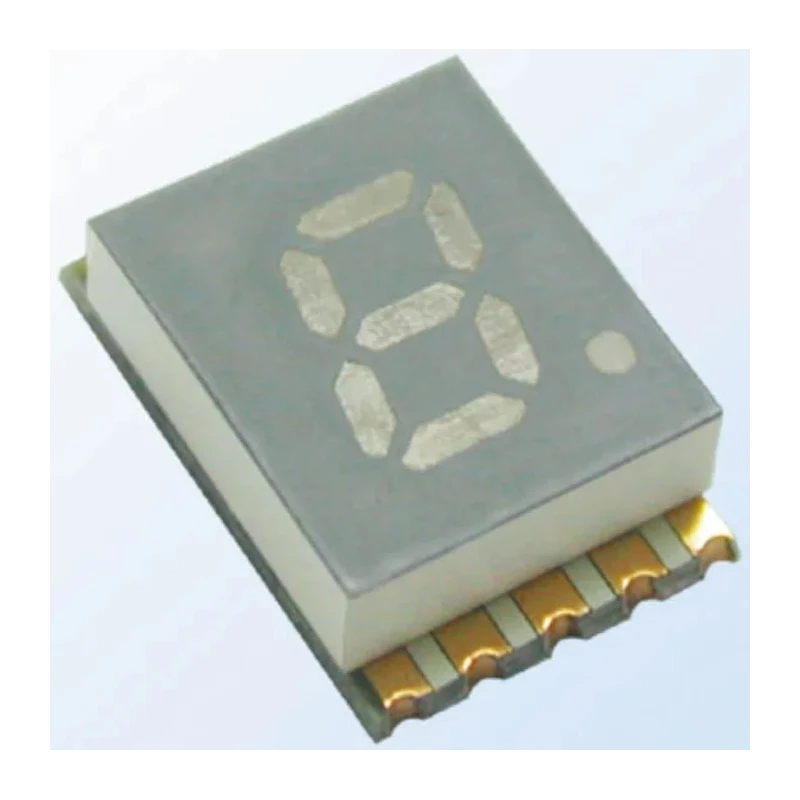

Kingbright 1 Digit 7 Segment LED Display Anode Yellow 36mcd Right Side 7.6mm KCSA03-107

Kingbright KCSA03-107 is a high-quality 1 Digit 7 Segment LED Display designed for electronic display applications requiring clear and visible numeric output. The yellow LED segments offer a luminous intensity of 36mcd, characterized by a dominant wavelength of 590nm, ideal for enhancing visibility in various electronic devices.

This single digit display consists of 7 segments mounted on a surface-type package with a common anode connection, simplifying integration into printed circuit boards. Its compact physical dimensions include a character height of 7.6mm, width of 4.2mm, and external dimensions of 7.3mm width, 12mm height, and 3.8mm depth. The grey face with white segments provides superior contrast, promoting readability even in ambient lighting conditions.

The component is engineered for durable performance with an operating temperature range from -40°C to 85°C and complies fully with RoHS environmental standards, ensuring low environmental impact and safety. Power dissipation is minimized at 75mW, balancing brightness and energy consumption efficiently.

Typical electrical characteristics include a forward voltage of 2V and a forward current rating of 30mA, supporting stable and bright illumination. Additionally, the display features a right-side decimal orientation for applications that require precise numeric representation.

This Kingbright 7 Segment LED Display is widely applicable in industrial electronics, instrumentation panels, electronic meters, digital clocks, and other commercial and laboratory display modules requiring reliable numeric indication and high visibility under various environmental conditions.

The display consists of 1 digit with 7 segments. Yellow LED color with a dominant wavelength of 590nm ensures clear visibility. Surface mount with a common anode connection simplifies PCB integration. Operates efficiently with low power dissipation of 75mW and forward voltage of 2V.

Durable operation within temperature range of -40°C to 85°C, suitable for harsh environments. Compliant with RoHS standards ensuring environmental safety. Compact physical dimensions allow installation in constrained spaces.
