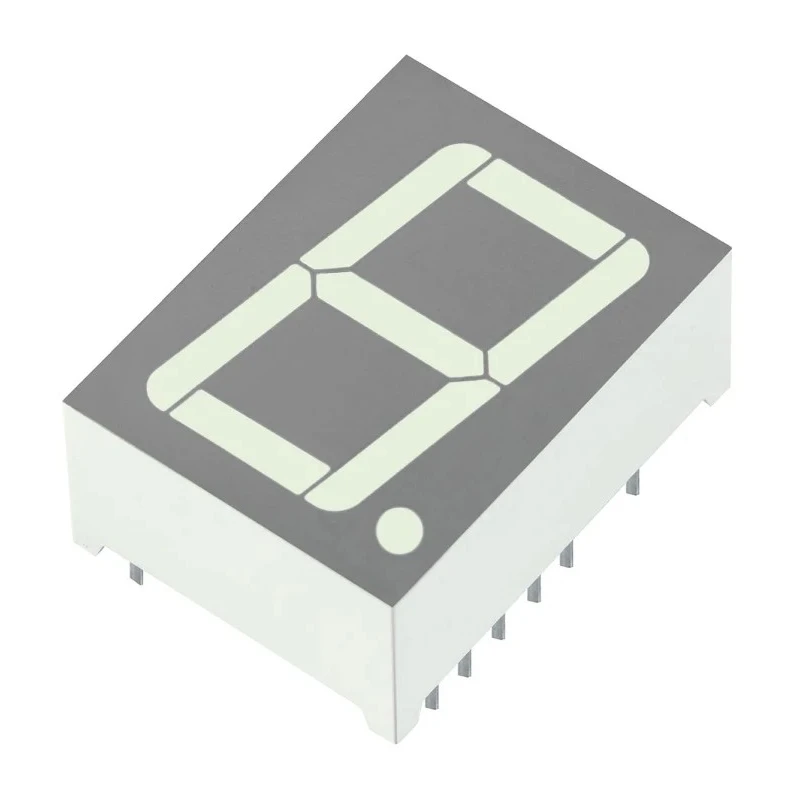

Kingbright 1 Digit 7 Segment LED Display Green Anode Right Side 20.3 mm SA08-21CGKWA
Specifications
| Country of Origin | China |
|---|---|
| Display Type | 7 Segment |
| Brand | Kingbright |
| Model | SA08-21CGKWA |
| Mount Type | Through Hole |
| Series | SA08 |
| Character height | 20.3mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 18.6mm |
| External Depth | 25mm |
| External Height | 10.6mm |
| Power Dissipation | 75mW |
| Luminous Intensity | 25mcd |
| Standards/Approvals | RoHS |
| LED Colour | Green |
| Dominant Wavelength | 570nm |
| Colour of Face | Grey |
| Forward Voltage | 2.1V |
| Forward Current | 30mA |
| Number of Characters | 1 |
| Character Width | 11.6mm |
| Common Connection | Anode |
| Decimal Orientation | Right Side |
Key Features
- The display has 7 segments with a luminous intensity of 25 mcd.
- Character height measures 20.3 mm and character width 11.6 mm for clear visibility.
- Designed for through hole mount with grey face offering excellent contrast.
- Operates at 2.1 V forward voltage and 30 mA forward current.
- Suitable for use in electronic display modules with a power dissipation of 75 mW.
- The display withstands temperatures from -40°C to 85°C.
- Dominant wavelength is 570 nm delivering a bright green output.
- RoHS compliant and mechanically rugged for reliability.
Product Description
Kingbright SA08-21CGKWA is a 1 digit 7 segment LED display designed for use in electronic components and display modules. It features a bright green LED colour with a luminous intensity of 25 mcd and a dominant wavelength of 570 nm. This display utilizes a common anode configuration and provides a right side decimal orientation, making it adaptable for a variety of numeric display applications.
The character height of 20.3 mm and width of 11.6 mm offers excellent visibility and clarity. The LED display has a grey face with white segments ensuring high contrast and readability. The device is designed for through hole mounting on PC boards or sockets, facilitating easy installation.
Operating within a temperature range of -40°C to 85°C, it supports a forward voltage of 2.1 V and a forward current of 30 mA, with a power dissipation of 75 mW. Its external dimensions are 18.6 mm width, 10.6 mm height, and 25 mm depth.
This display is mechanically robust and RoHS compliant, making it a reliable choice for industrial, laboratory, and electronic manufacturing applications requiring clear numeric displays. It is suitable for use in control panels, measurement instrumentation, and electronic devices where segmented LED numeric readouts are essential.
The display has 7 segments with a luminous intensity of 25 mcd. Character height measures 20.3 mm and character width 11.6 mm for clear visibility. Designed for through hole mount with grey face offering excellent contrast.
Operates at 2.1 V forward voltage and 30 mA forward current. Suitable for use in electronic display modules with a power dissipation of 75 mW. The display withstands temperatures from -40°C to 85°C. Dominant wavelength is 570 nm delivering a bright green output.
RoHS compliant and mechanically rugged for reliability. Browse our Electronics Components LED Display category for a wide range of reliable display modules and components at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The luminous intensity of this display is 25 mcd.
The character height is 20.3 mm and the character width is 11.6 mm.
It operates within a temperature range of -40°C to 85°C.
The forward voltage is 2.1 V and the forward current is 30 mA.
This display is designed for through hole mounting.
The external dimensions are 18.6 mm wide, 10.6 mm high, and 25 mm deep.
The dominant wavelength is 570 nm, which delivers a bright green output.
Yes, this display is RoHS compliant.
It is suitable for use in control panels, measurement instrumentation, and electronic devices requiring numeric displays.
The power dissipation of this display is 75 mW.
The face of the display is grey, providing excellent contrast with the white segments.
This display has 7 segments.
