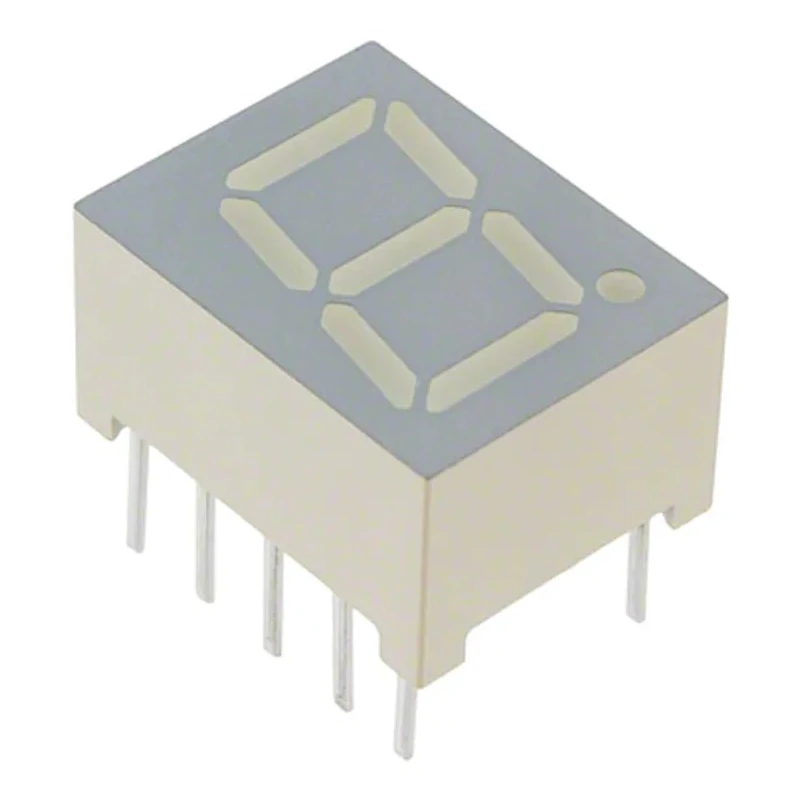

Kingbright 1 Digit 7 Segment LED Display Anode Red 46mcd Right Side 10 mm SA39-12SURKWA
Specifications
| Country of Origin | China |
|---|---|
| Display Type | 7 Segment |
| Brand | Kingbright |
| Model | SA39-12SURKWA |
| Mount Type | Through Hole |
| Character height | 10mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 10mm |
| External Depth | 7mm |
| External Height | 13mm |
| Power Dissipation | 75mW |
| Luminous Intensity | 46mcd |
| Standards/Approvals | RoHS |
| LED Colour | Red |
| Dominant Wavelength | 630nm |
| Colour of Face | Grey |
| Forward Voltage | 2V |
| Forward Current | 30mA |
| Number of Characters | 1 |
| Character Width | 6.2mm |
| Common Connection | Anode |
| Decimal Orientation | Right Side |
Key Features
- The display shows a single 7 segment character with 6.2 mm width and 10 mm height.
- It has a dominant wavelength of 630 nm for the red LED color.
- The display operates at a forward voltage of 2 V and forward current of 30 mA.
- The luminous intensity is rated at 46 mcd for clear indication.
- Constructed with a grey face and white segments for easy reading.
- This through-hole mounted LED display provides robust assembly on PCBs or sockets.
- Operating temperature ranges from -40°C to 85°C for varied environmental conditions.
- Power dissipation is 75 mW, ensuring low power operation.
Product Description
Kingbright SA39-12SURKWA is a high-quality single digit 7 segment LED display designed for clear numeric display in electronic applications. Featuring an anode common connection and red LED segments with 46 mcd luminous intensity, this display ensures excellent visibility even in varying lighting conditions.
The character width and height measure 6.2 mm and 10 mm respectively, with overall external dimensions of 10 mm width, 13 mm height, and 7 mm depth. Its grey face combined with white segments enhances readability and aesthetic appeal.
This display operates at a forward voltage of 2 volts and forward current of 30 milliamps, with a power dissipation rating of 75 milliwatts, ensuring efficient power usage. Suitable for through-hole mounting on printed circuit boards or sockets, it offers easy installation and mechanical ruggedness.
Operating temperature ranges from -40°C up to 85°C, making it ideal for diverse industrial, laboratory, or commercial electronic use cases. The decimal point is oriented to the right side, making it appropriate for standard numeric presentations.
The display exhibits low current operation for energy efficiency. Excellent character appearance with high on/off contrast. Easy mounting on PC boards or sockets. Categorized for luminous intensity for consistent brightness.
Mechanically rugged and RoHS compliant for environmental safety. Kingbright 7 segment LED displays are widely used in electronic measuring instruments, digital clocks, counters, and other numeric indicators in industrial automation systems.
Explore more LED Display solutions and components in the EnvMart Electronics & Electricals category to support your industrial, laboratory, and commercial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The luminous intensity is rated at 46 mcd, ensuring clear visibility in various lighting conditions.
The external dimensions are 10 mm in width, 13 mm in height, and 7 mm in depth.
It operates within a temperature range of -40°C to 85°C, suitable for diverse environments.
The display operates at a forward voltage of 2 V and a forward current of 30 mA.
This model is designed for through-hole mounting on printed circuit boards or sockets.
The character height is 10 mm, making it suitable for various applications requiring numeric display.
The LED color is red, with a dominant wavelength of 630 nm.
The power dissipation is rated at 75 mW, ensuring efficient power usage.
The decimal point is oriented to the right side, which is standard for numeric presentations.
Yes, it is RoHS compliant, ensuring it meets environmental safety standards.
This display is widely used in electronic measuring instruments, digital clocks, counters, and other numeric indicators.
The character width is 6.2 mm, allowing for clear numeric representation.
