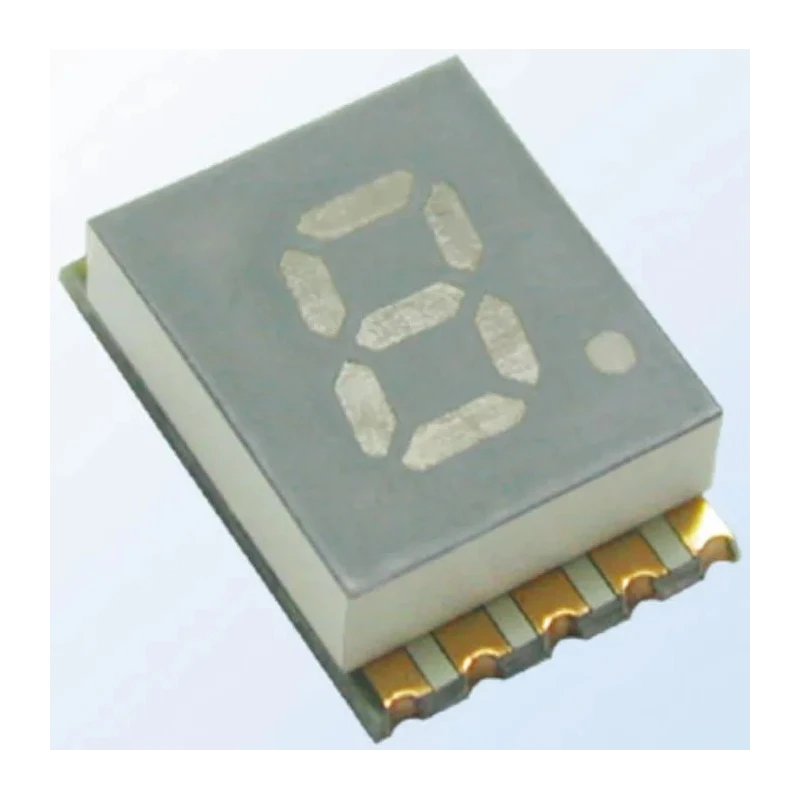

Kingbright 1 Digit 7 Segment LED Display Anode Orange 78mcd Right Side 14.2mm KCSA56-106

Kingbright KCSA56-106 is a high-quality single digit 7 segment LED display designed for surface mounting on PC boards. Featuring a bright orange LED color with a luminous intensity of 78mcd, it offers excellent visibility and contrast with a grey face and white segments.

This display supports a common anode connection and has a decimal point oriented on the right side, suitable for numeric displays in industrial, commercial, and electronic instrumentation applications.

The character height of 14.2mm and width of 8mm ensure clear readings. It has robust external dimensions of 12.4mm width, 19mm height, and a compact depth of 3.8mm, making it easy to integrate into tight electronic layouts.

Designed to operate reliably within a wide temperature range from -40°C to 85°C, this LED display is ideal for use in harsh environments. The forward voltage of 2.1V and a forward current rating of 30mA with only 75mW power dissipation enable energy-efficient performance.

The product is mechanically rugged and RoHS compliant, aligning with environmental regulations for safe electronics manufacturing and disposal. The display height is 14.2mm with a character width of 8mm. Luminous intensity is rated at 78mcd ensuring high visibility.

Surface mount type with external dimensions of 12.4mm width, 19mm height, and 3.8mm depth. Operating temperature range is -40°C to 85°C ensuring reliability in diverse environments. Forward voltage is 2.1V with a forward current of 30mA and power dissipation of 75mW.

Grey face with white segments provides clear character appearance. RoHS compliant and mechanically rugged for industrial and commercial use.

This LED display is widely used in industrial instrumentation, digital clocks, counters, and measuring equipment. Its high brightness and rugged design make it suitable for manufacturing, laboratory, electronics, and commercial applications.

Choose Kingbright KCSA56-106 for reliable numeric display modules in advanced electronic assemblies. Explore further LED Display solutions and components in the EnvMart catalog for industrial and electronics system designs.
