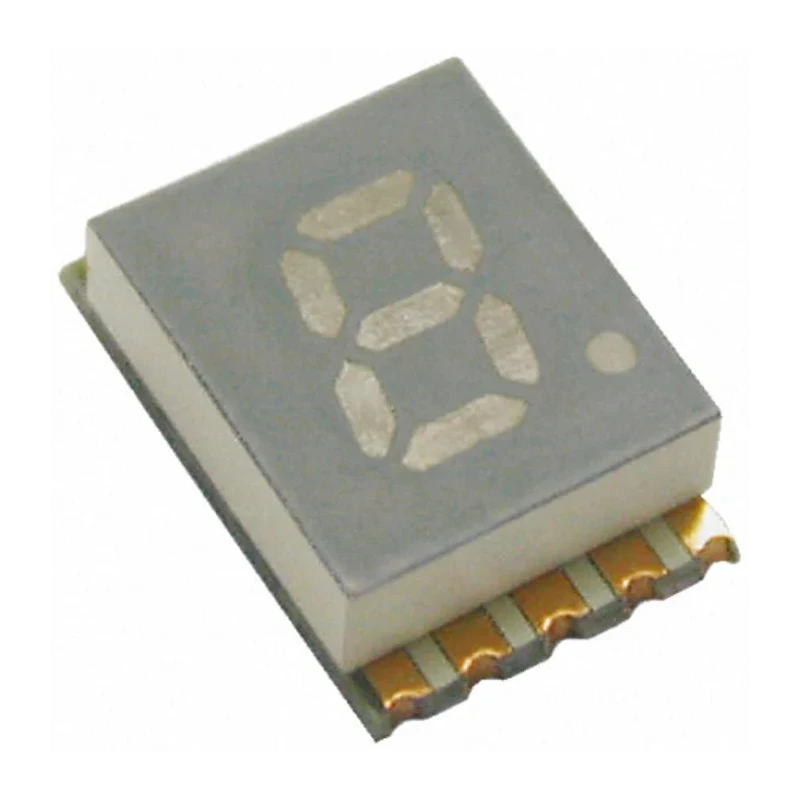

Kingbright 1 Digit 7 Segment LED Display Cathode Green 12mcd Right Side Orientation 5.1mm KCSC02-123
Specifications
| Country of Origin | China |
|---|---|
| Display Type | 7 Segment |
| Brand | Kingbright |
| Model | KCSC02-123 |
| Mount Type | Surface |
| Series | KCSC02 |
| Character height | 5.1mm |
| Maximum Operating Temperature | 85°C |
| Minimum Operating Temperature | -40°C |
| Number Of Segments | 7 |
| External Width | 10mm |
| External Depth | 6.9mm |
| External Height | 3mm |
| Power Dissipation | 75mW |
| Luminous Intensity | 12mcd |
| Standards/Approvals | RoHS |
| LED Colour | Green |
| Dominant Wavelength | 570nm |
| Colour of Face | Grey |
| Forward Voltage | 2.1V |
| Forward Current | 30mA |
| Number of Characters | 1 |
| Character Width | 3.2mm |
| Common Connection | Cathode |
| Decimal Orientation | Right Side |
Key Features
- Features a bright green LED colour suitable for clear visual indication.
- Designed with a right side decimal point orientation for precise readout.
- Surface mount type ensures easy PCB integration and assembly.
- Operates within a temperature range from -40°C to 85°C for versatile application.
- Compact dimensions with a character height of 5.1mm and width of 3.2mm.
- Power dissipation of 75mW with a forward voltage of 2.1V and current of 30mA.
- Complies with RoHS standards ensuring environmental and safety compliance.
- Mechanical grey face with white segments provides high contrast display.
Product Description
Kingbright KCSC02-123 is a 1 digit 7 Segment LED Display featuring a green LED with a luminous intensity of 12mcd. This display is designed for optimal visibility with a grey face and bright white segments, making it suitable for applications requiring clear numeric displays.
The display is surface mount type, facilitating easy and secure mounting on printed circuit boards in a variety of electronic devices and modules. It operates reliably over a wide temperature range of -40°C to 85°C, suitable for both industrial and commercial environments.
The character height is 5.1mm, with a width of 3.2mm, and the external dimensions provide compactness with 10mm width, 3mm height, and 6.9mm depth, making it ideal for space-constrained designs. It has a power dissipation of 75mW, a forward voltage of 2.1V, and forward current of 30mA, ensuring efficient low current operation.
The right side decimal orientation adds versatility in readout presentation, enhancing its usability in numeric display applications. Kingbright's KCSC02-123 display is categorized for luminous intensity to ensure consistent performance and readability.
This component complies with RoHS standards, assuring it meets environmental safety requirements for modern electronics manufacturing. Typical industrial applications include electronic indicator panels, measuring instruments, consumer electronics, and other devices requiring numeric visual displays.
Bright green LED colour with 12mcd luminous intensity. Right side decimal orientation for precise display. Surface mount technology for easy PCB integration. Robust operating temperature range (-40°C to 85°C). Compact form factor with precise character dimensions.
Low power consumption with 75mW power dissipation. RoHS compliant for environmental safety. Grey face with white segments for excellent contrast. Reliable and rugged mechanical construction. Ideal for electronic display modules in industrial applications.
Explore EnvMart's range of electronic components and LED Displays for high-quality solutions in your design and manufacturing projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The luminous intensity of the Kingbright KCSC02-123 is 12mcd, providing bright visibility for clear numeric displays.
It operates reliably within a temperature range of -40°C to 85°C, making it suitable for various environments.
The external dimensions of this display are 10mm in width, 3mm in height, and 6.9mm in depth, with a character height of 5.1mm and width of 3.2mm.
This model utilizes surface mount technology, facilitating easy integration onto printed circuit boards.
The forward voltage is 2.1V, and the forward current is 30mA, ensuring efficient operation.
Yes, it complies with RoHS standards, ensuring it meets environmental safety requirements.
The common connection type for this model is cathode, which is essential for its operation in circuits.
The decimal point orientation is on the right side, allowing for precise readout in numeric applications.
Typical applications include electronic indicator panels, measuring instruments, and consumer electronics requiring numeric displays.
The power dissipation for this model is 75mW, contributing to its low power consumption.
The LED color is green, and the face of the display is grey, providing high contrast with white segments.
This display features 7 segments, allowing for a variety of numeric representations.
