| Country of Origin | China |
|---|---|
| Diameter | 5.6mm |
| Brand | HY Electronic Corp |
| Height | 9.5mm |
| Model | 1N5822 |
| Mount Type | Through Hole |
| Construction | Epitaxial |
| Plastic Material | UL94V-0 |
| Series | FBI |
| Maximum Operating Temperature | 150°C |
| Package Type | DO-27 |
| Minimum Operating Temperature | -55°C |
| Polarity | Colour band denotes cathode |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 3A |
| Peak Reverse Repetitive Voltage Vrrm | 40V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 20mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 80A |
| Maximum Forward Voltage Vf | 600mV |
| Metal | Semiconductor junction with guard ring |

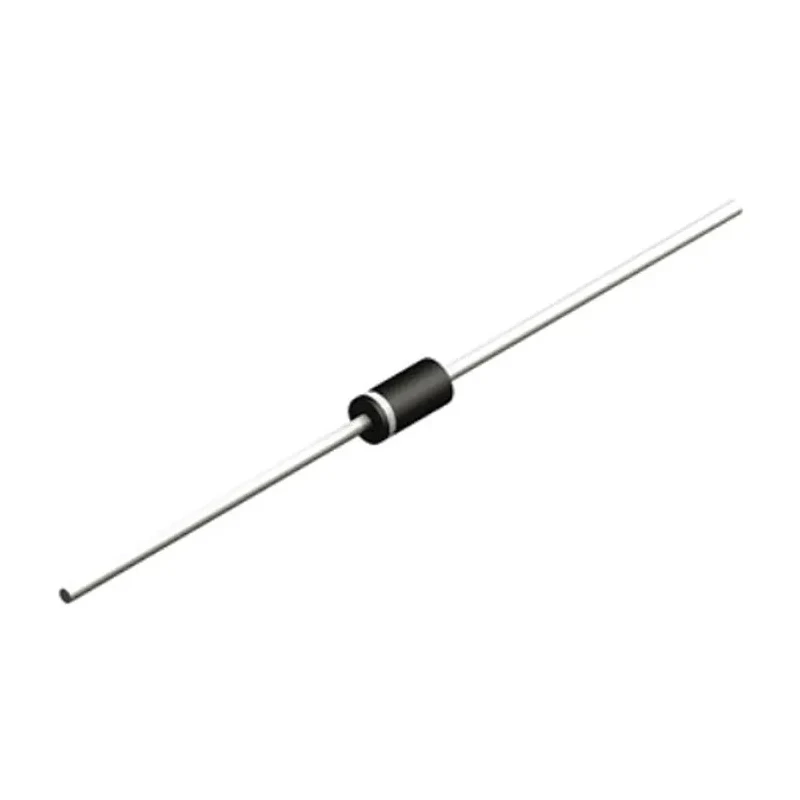

HY Electronic Corp 1N5822 is a Schottky diode with a 40 V peak reverse repetitive voltage and 3 A maximum continuous forward current, supplied in a 2-pin DO-27 through-hole package. It is designed for efficient high-frequency inverter circuits, polarity protection, and fast switching applications.
The diode has an epitaxial construction with a semiconductor junction and guard ring, ensuring robust electrical performance and stability. Its plastic body is made from UL94V-0 rated material, offering flame retardance for safety in various industrial electronic assemblies.
Featuring a low forward voltage drop of 600 mV, the 1N5822 reduces power losses and improves circuit efficiency. It exhibits a peak non-repetitive forward surge current capability of 80 A for handling transient electrical surges.
The operating temperature range from -55°C to 150°C makes it suitable for extreme environmental conditions commonly encountered in power electronics and automotive electronics, although it does not hold an automotive standard certification.
Key physical dimensions include a height of 9.5 mm and diameter of 5.6 mm, fitting standard through-hole mounting practices. Polarity is marked with a colored band indicating the cathode end for correct circuit placement.
Low forward voltage drop improves circuit efficiency. High surge current rating supports transient events. Wide operating temperature range for diverse applications. Plastic material is UL94V-0 rated for flame retardance.
Epitaxial construction ensures reliability and performance. Compact DO-27 package suitable for through-hole mounting. Polarity clearly marked by color band.
This Schottky diode is ideal for industrial, electronics manufacturing, power supply design, and laboratory applications requiring efficient rectification and fast switching characteristics. It provides reliable operation in electronic devices needing protection from reverse voltages and fast recovery diodes.
