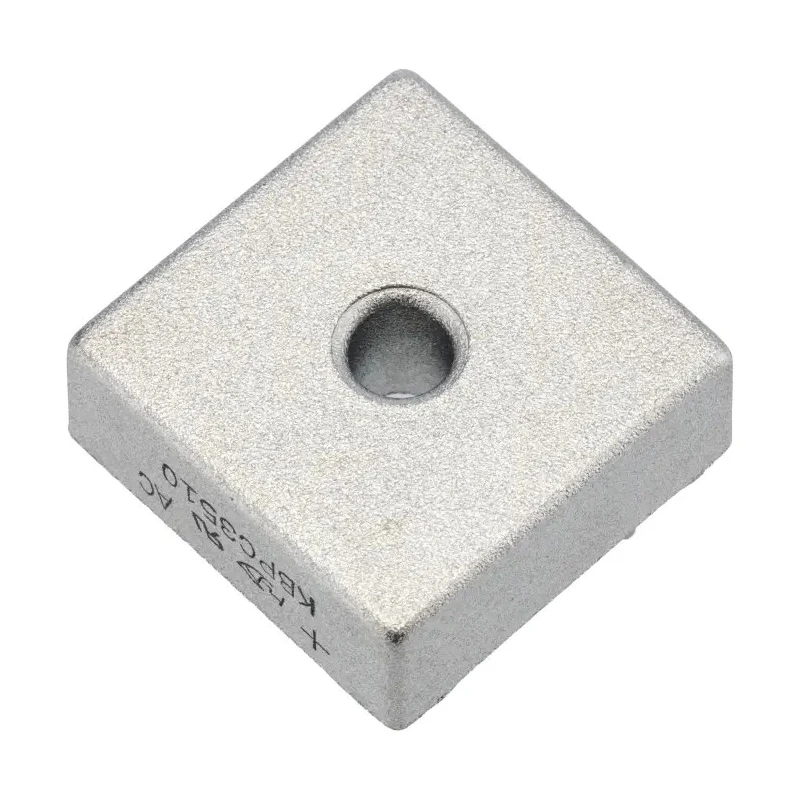

HY Electronic Corp Bridge Rectifier 1000 V 400 A 4-Pin Single KBPC3510

HY Electronic Corp KBPC3510 Bridge Rectifier is a silicon-based discrete semiconductor designed to convert AC to DC current efficiently at a peak reverse repetitive voltage of 1000 V and forward current of 35 A. This 4-pin single configuration device belongs to the KBPC3 series, optimized for printed circuit board applications with through-hole mounting type.

Engineered to operate within a broad temperature range from -55°C to 150°C, the rectifier features a peak non-repetitive forward surge current of 400 A and a low forward voltage drop of 1.1 V, which enhances energy efficiency and thermal performance. The robust electrically isolated base can tolerate up to 2000 V, protecting surrounding components from electrical stresses.

The material employed holds U/L recognition standards, confirming compliance with industrial safety and quality norms. With compact dimensions of 28.8 mm in length and width and 11.23 mm height, it suits various electronic and power conversion system designs.

This bridge rectifier is suited for industrial electronics, power & connectors, and semiconductor applications, serving roles in power supplies, HVAC systems, laboratory instruments, and manufacturing equipment requiring reliable and efficient rectification of AC input to DC output.

Supports peak reverse repetitive voltage of 1000 V. Forward current rating of 35 A with a peak surge current of 400 A. Through-hole 4-pin KBPC package for easy integration. Operating temperature range of -55°C to 150°C. Low forward voltage drop of 1.1 V and reverse current of 10 μA.

Electrically isolated base with 2000 V isolation capability. Certified material with U/L recognition. Compact size enabling versatile industrial use. Perfect for power rectification in industrial and laboratory electronic systems.
