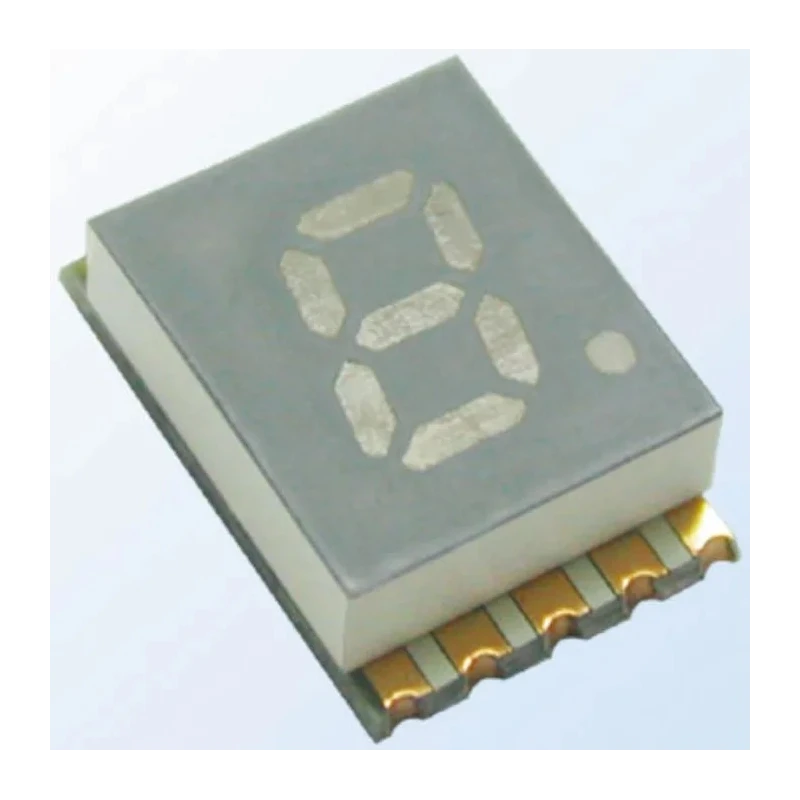

Kingbright 1 Digit 7 Segment LED Display Anode Yellow 35mcd Right Side 10.2mm KCSA04-107

Kingbright KCSA04-107 is a single digit 7 segment LED display designed for precise and clear numeric indication in electronic equipment. This LED display emits a bright yellow color with a luminous intensity of 35 millicandela, making it highly visible even in varied lighting conditions. Its right side decimal orientation facilitates easy decimal reading in digital circuits.

The device features an anode common connection and is surface mountable, ensuring easy integration into modern printed circuit boards. Character dimensions of 10.2mm in height and 5.6mm in width provide excellent digit clarity, suitable for instrumentation, control panels, and consumer electronic devices.

Crafted with a grey face and white segments, the display offers excellent contrast and character appearance. With operating temperature tolerance from -40°C to +85°C, it supports applications in industrial, laboratory, and commercial environments. The forward voltage rating is 2V with a forward current up to 30mA, dissipating just 75mW of power, making it appropriate for efficient electronic design.

Compact external dimensions (9.1mm width x 15mm height x 3.8mm depth) enable space-saving on PCBs. The product is RoHS compliant, reflecting its environmentally friendly manufacturing standards. Additionally, its mechanical robustness ensures a long-lasting performance under typical industrial use cases.

The LED features an anode common connection optimized for surface mounting applications. Character height measures 10.2mm and width 5.6mm, providing excellent digit visibility. Constructed with a grey face and white segment color for high contrast and easy readability.

Operates reliably across a temperature range from -40°C to 85°C for diverse environments. The display operates at a forward voltage of 2V with a 30mA forward current ensuring low power consumption. Power dissipation of 75mW makes it energy-efficient for embedded electronics.

The compact external dimensions are 9.1mm width, 15mm height, and 3.8mm depth. RoHS compliant, mechanically robust, and suitable for PCB socket mounting.

This LED display is well suited for industrial, laboratory, commercial, and electronics manufacturing applications requiring numeric visual indicators. For buyers seeking proven LED technology with clear visibility and durable performance, Kingbright KCSA04-107 is a reliable choice. Explore a wide range of advanced LED Display solutions in the Electronics & Electricals category at EnvMart.
