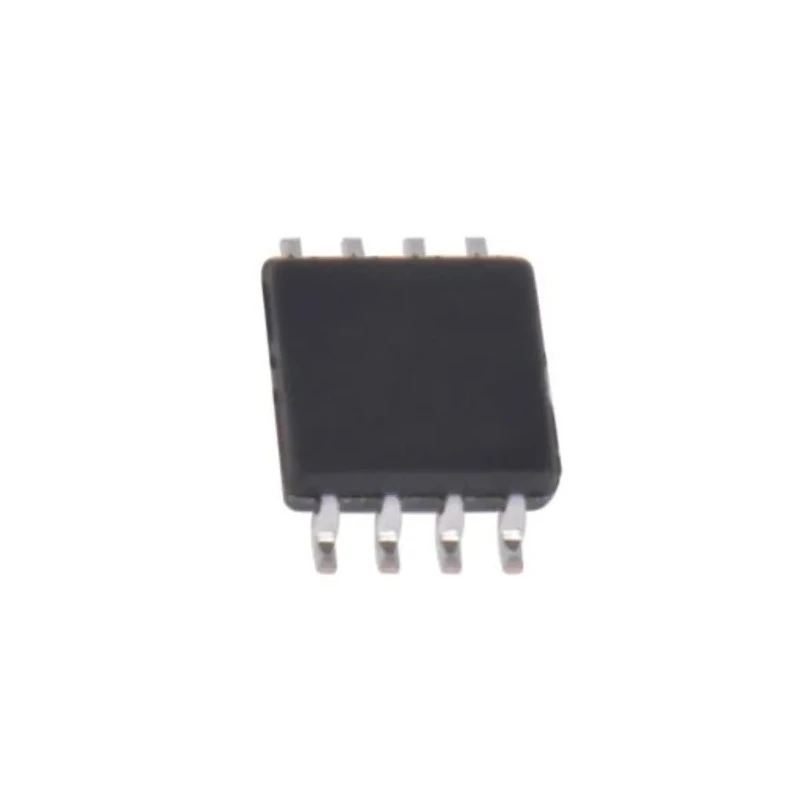

NXP 4 Output Display Driver LED Driver 25mA Driver Current 2.3-5.5V Input Voltage PCA9533DP/02,118
Specifications
| Country of Origin | Thailand |
|---|---|
| Brand | NXP |
| Model | PCA9533DP/02,118 |
| Mount Type | Surface |
| Series | PCA9533 |
| Sub Type | LED Driver |
| Operating Modes | OFF, ON |
| Number of outputs | 4 |
| Terminal type | Solder |
| Input Voltage | 2.3, 5.5V |
| Power Dissipation | 400mW |
| Standards/Approvals | Latch-up testing to JEDEC JESD78, ESD exceeds 2000 V HBM per JESD22-A114, 1000 V CDM per JESD22-C101, 150 V MM per JESD22-A115 |
| Dimming Operation | 256 Brightness Steps |
| Driver Current | 25mA |
Key Features
- Features 256 brightness steps for accurate dimming control.
- Surface mount type with solder terminal connections ensures easy PCB mounting.
- Supports operating modes OFF and ON for flexible usage.
- Complies with JEDEC JESD78 latch-up testing for reliability and robustness.
- Power dissipation rating of 400mW suitable for efficient thermal management.
- Includes 4 output channels for multi-LED control applications.
- Designed for LED lighting applications in industrial and electronic devices.
- Made in Thailand ensuring high manufacturing standards.
Product Description
The NXP PCA9533DP/02,118 is a 4 output display driver LED driver designed to efficiently control LED lighting components with a driver current of 25mA and an input voltage operating range from 2.3 to 5.5 volts.
This LED driver supports 256 brightness steps which enables precise dimming operation for optimized lighting control and enhanced display performance. Its surface mount type and solder terminal allow easy integration into printed circuit boards in electronic and industrial equipment.
Operating modes include OFF and ON states, providing flexibility for switching LED outputs in various applications, including displays and indicator lights. The device complies with rigorous industry standards such as JEDEC JESD78 for latch-up testing and withstands electrostatic discharge exceeding 2000 V HBM and 150 V MM for high reliability and durability.
Power dissipation is rated at 400mW, ensuring efficient thermal management in compact circuits with multiple LEDs. The 4 output channels are suitable for controlling multiple LED strings or segments in a display system.
256 brightness steps for high precision LED dimming control. Surface mount type enables compact PCB footprint. Supports OFF and ON operating modes for practical LED management. Compliant with JEDEC latch-up and ESD standards for durability.
400mW power dissipation supports efficient thermal performance. Four outputs allow multi-LED or multi-segment operation. Designed for industrial, electronic, and LED lighting applications. Manufactured in Thailand under high-quality standards.
This LED driver is broadly used in industrial electronics, display panels, lighting equipment, and other applications requiring reliable LED output control. For more reliable components and lighting solutions, explore further in the Electronics Components section at EnvMart.
Explore more products in our LED Drivers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The input voltage range for this model is from 2.3 to 5.5 volts.
It features 4 output channels for controlling multiple LED strings or segments.
The driver current for this model is 25mA.
This LED driver supports 256 brightness steps for precise dimming control.
It uses a surface mount type with solder terminal connections, allowing for easy PCB integration.
The PCA9533DP/02,118 supports OFF and ON operating modes for flexible LED management.
The power dissipation rating is 400mW, suitable for efficient thermal management.
It complies with JEDEC JESD78 for latch-up testing and has ESD protection exceeding 2000 V HBM and 150 V MM.
This model is manufactured in Thailand, ensuring high manufacturing standards.
It is designed for LED lighting applications in industrial and electronic devices, including display panels and indicator lights.
The terminal type is solder, facilitating secure connections on printed circuit boards.
The PCA9533DP/02,118 belongs to the PCA9533 series of LED drivers.
