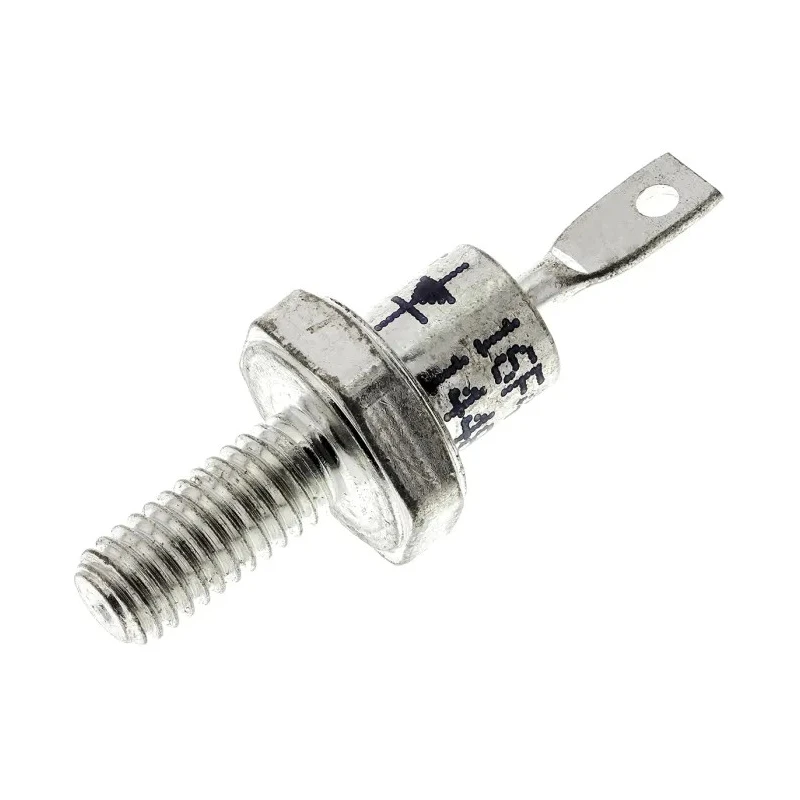

Vishay Standard Recovery Diode 400 V 16 A Screw Mount DO-203AA 2-Pin VS-16F40
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 11mm |
| Brand | Vishay |
| Height | 31.8mm |
| Length | 12.69mm |
| Model | VS-16F40 |
| Width | 11mm |
| Mount Type | Screw |
| Series | VS-16F |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-203AA |
| Minimum Operating Temperature | -65°C |
| Pin Count | 2 |
| Maximum Continuous Forward Current If | 16A |
| Peak Reverse Repetitive Voltage Vrrm | 400V |
| Diode Configuration | Stud Cathode |
| Rectifier Type | Standard Recovery Diode |
| Peak Reverse Current Ir | 12mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 370A |
| Maximum Forward Voltage Vf | 1.23V |
| Vishay Switching Diode, Stud Cathode, 2-Pin DO-4 16F40Brand | Vishay |
Key Features
- Standard recovery rectifier diode ideal for power management circuits.
- Screw mount type for secure and reliable attachments.
- Maximum forward voltage drop is 1.23 V ensuring efficient conduction.
- Peak reverse current of 12 mA for enhanced reliability.
- Temperature operating range from -65°C to 175°C for industrial applications.
- Compact dimensions with 11 mm diameter and 31.8 mm height.
- Stud cathode diode configuration supporting common mounting practices.
- Peak non-repetitive forward surge current of 370 A for transient robustness.
Product Description
Vishay VS-16F40 is a high-performance Standard Recovery Diode designed for semiconductor applications in power electronics. Rated for a peak reverse repetitive voltage of 400 V and capable of handling a maximum continuous forward current of 16 A, this diode comes in an industry-standard DO-203AA package with screw mount style. It supports a stud cathode configuration and features a maximum forward voltage drop of 1.23 V, contributing to efficient power conduction with minimal loss.
This diode is engineered to operate reliably over a wide temperature range from -65°C to 175°C, making it suitable for demanding industrial environments and electronic assemblies. The robust structure accommodates a peak non-repetitive forward surge current of 370 A, offering resilience to power surges and transient spikes.
With compact dimensions - 11 mm diameter, 11 mm width, 31.8 mm height, and 12.69 mm length - the diode offers easy integration into various electronic devices and systems. It is specifically designed to be mounted using screws, ensuring stable installation within power circuitry.
The Vishay VS-16F40 diode is widely used in power supply design, rectification tasks, industrial power control, and other applications requiring a reliable, standard recovery power diode. Its durable construction and well-defined electrical ratings make it a dependable choice for manufacturing, HVAC controls, and laboratory electronic setups.
Standard recovery rectifier diode ideal for power management circuits. Screw mount type for secure and reliable attachments. Maximum forward voltage drop is 1.23 V ensuring efficient conduction. Peak reverse current of 12 mA for enhanced reliability.
Temperature operating range from -65°C to 175°C for industrial applications. Compact dimensions with 11 mm diameter and 31.8 mm height. Stud cathode diode configuration supporting common mounting practices. Peak non-repetitive forward surge current of 370 A for transient robustness.
Browse Vishay semiconductor components and related power electronic devices on EnvMart for industrial, manufacturing, and laboratory usage.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Vishay VS-16F40 has a peak reverse repetitive voltage rating of 400 V.
This diode can handle a maximum continuous forward current of 16 A.
The operating temperature range for this diode is from -65°C to 175°C.
The maximum forward voltage drop for the Vishay VS-16F40 is 1.23 V.
This model has a peak non-repetitive forward surge current rating of 370 A.
The diode has a diameter of 11 mm, height of 31.8 mm, and length of 12.69 mm.
The VS-16F40 is designed for screw mounting, providing secure and reliable attachments.
This diode features a stud cathode configuration, which supports common mounting practices.
The peak reverse current for this diode is 12 mA.
This diode is suitable for power supply design, rectification tasks, and industrial power control applications.
The VS-16F40 comes in a DO-203AA package type.
The country of origin for this diode is India.
