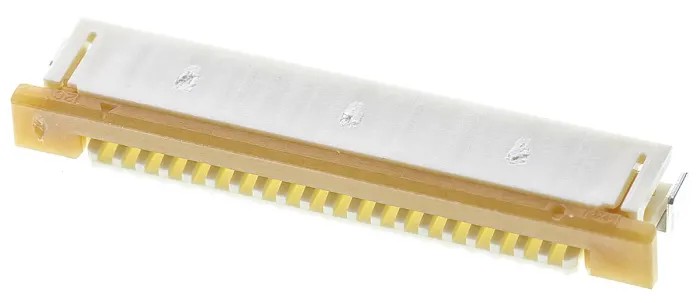

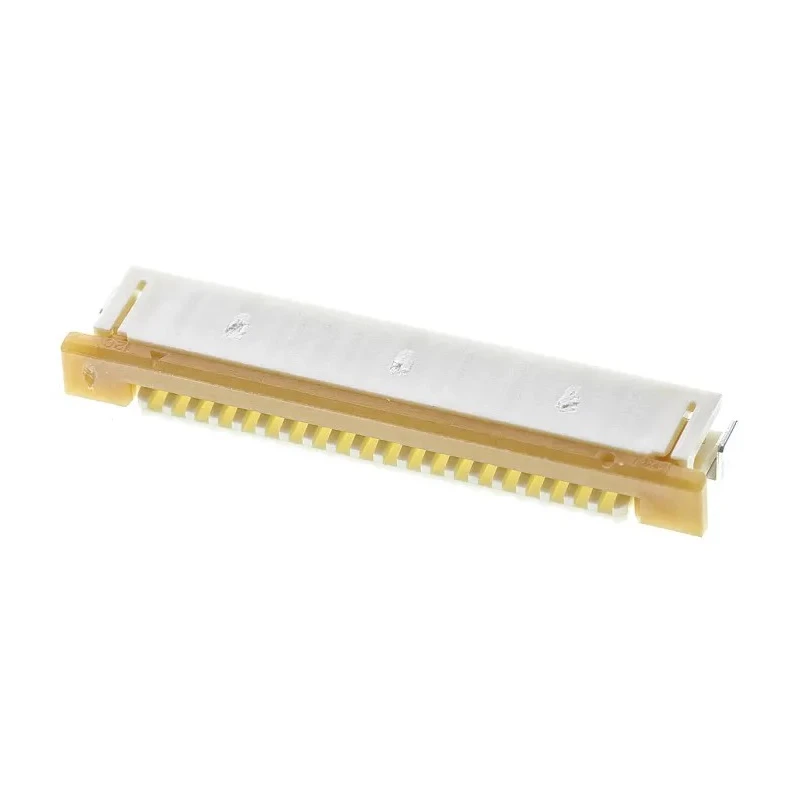

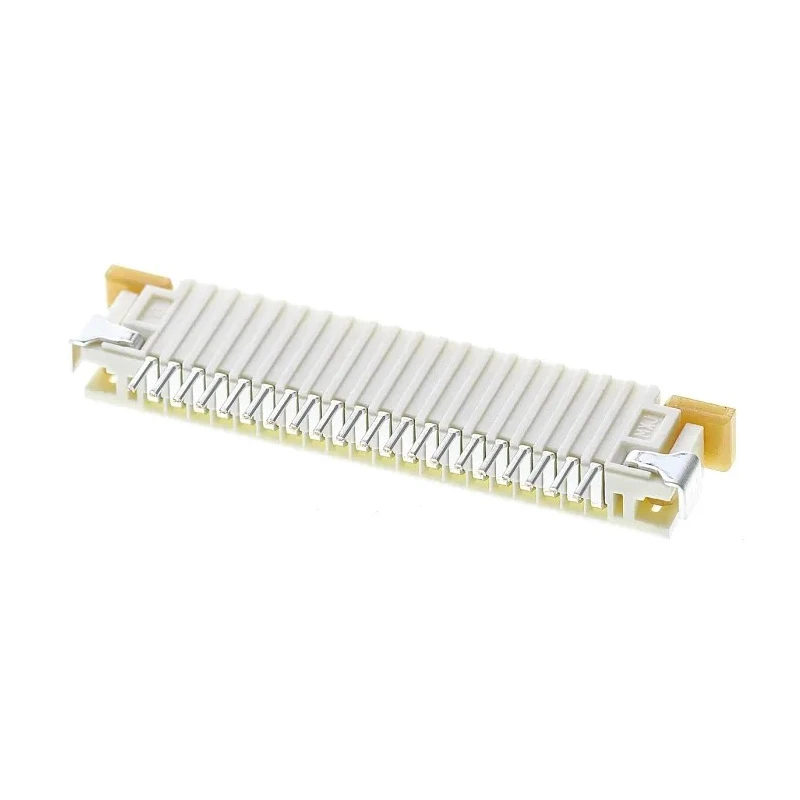

Molex 1 mm Pitch 20 Way Right Angle Female FPC Connector Solder 52271-2079

Molex 52271-2079 is a 1 mm pitch 20 way right angle female FPC Connector designed for secure and reliable electronic connections in compact spaces. Featuring ZIF bottom contacts and a slide type actuator, the connector enables easy cable insertion with minimal wear, making it ideal for repeated assembly cycles.

The connector uses phosphor bronze contacts plated with a tin bismuth alloy, mounted in a durable nylon housing that offers both mechanical protection and electrical insulation. Suitable for surface mount PCB applications, the connector provides robust solder termination with added strain relief through solder tabs on the right angle solder tail joints.

Operating safely within a voltage rating of 50 V AC and current rating of 500 mA, it also includes a locking mechanism to maintain a reliable connection under vibration or movement. Its operating temperature range from -40°C to 85°C supports use in various demanding environments.

This connector series is often used in automotive, consumer electronics, medical devices, data communications, and mobile device applications including automotive navigation/audio systems, digital cameras, security equipment, laptops, patient monitors, GPS devices, and smartphones. The compact, space-saving design helps optimize PCB real estate without compromising performance.

1.00 mm pitch suits high-density packaging requirements. Zero Insertion Force (ZIF) design extends product service life through minimal contact wear. Slide actuator guarantees secure and stable FPC engagement. Phosphor bronze contacts with tin bismuth alloy plating resist corrosion and ensure conductivity.

Right angle form factor with solder tabs provides strong PCB retention and strain relief. Nylon housing offers excellent electrical insulation and mechanical durability. Compatible with surface mount technology (SMT) processes for streamlined assembly.

Locking mechanism enhances connection reliability in vibration-prone applications. Wide operating temperature range broadens application scope in industrial and commercial uses.

This Molex connector is a trusted solution for reliable, repeatable FPC connections across automotive, industrial, communications, medical, and consumer electronics sectors. Explore our extensive catalog of electronic connectors at EnvMart for matched connectivity components.
