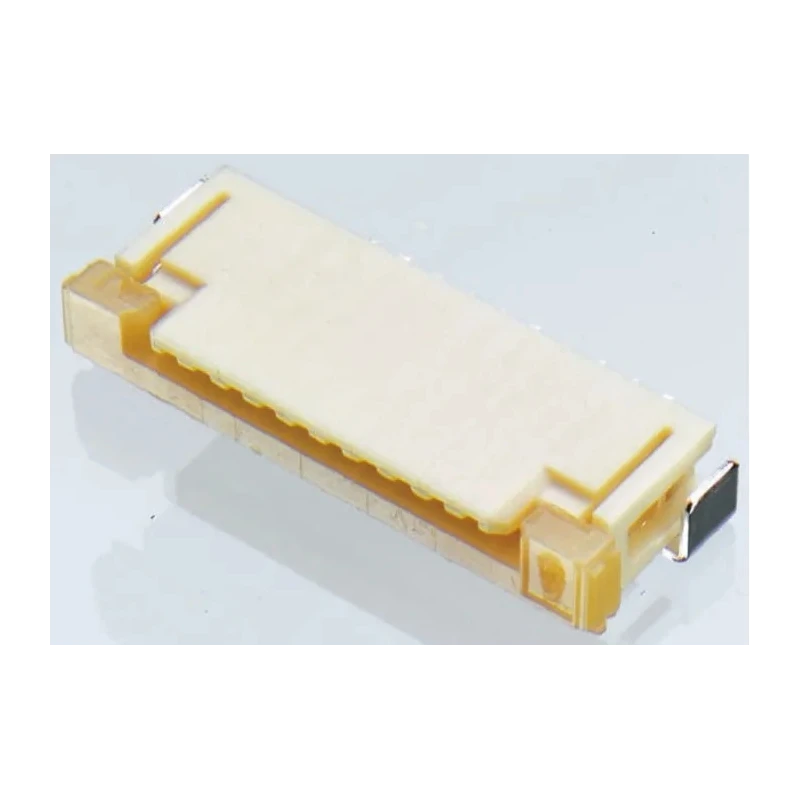

Molex 1 mm Pitch 14 Way Right Angle Female FPC Connector, Solder 52271-1479

Molex 52271-1479 is a 1 mm pitch 14 way right angle female FPC connector designed for surface mount installation with solder termination. This Easy-On ZIF (Zero Insertion Force) connector series is engineered to provide a reliable and space-saving solution, ideal for applications requiring compact packaging such as automotive, consumer electronics, datacommunications, medical devices, and mobile phones.

The connector features a slide type actuator that rotates 30 degrees to facilitate easier FPC insertion and a locking mechanism to ensure secure contact retention. Contacts are made of phosphor bronze and plated with tin bismuth alloy to enhance durability and electrical performance. The nylon housing provides robust insulation and mechanical support.

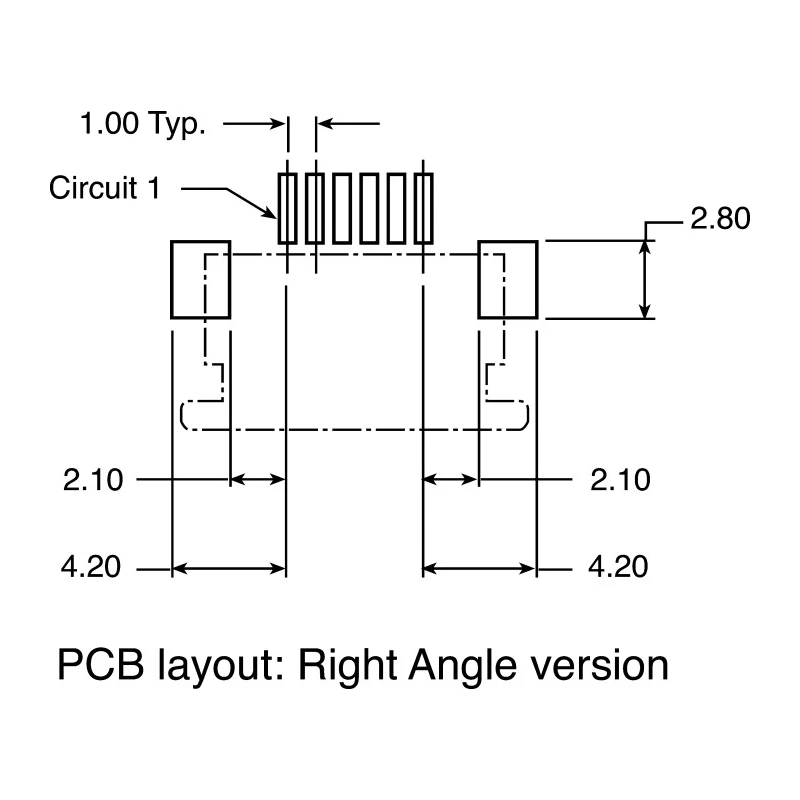

Operating voltage is rated at 50 V AC with a current capacity of up to 500 mA. It supports a broad operating temperature range from -40°C to 85°C. This model has a single row configuration with the contacts positioned at the bottom, providing a right angle orientation to optimize PCB layout and wiring management. The connector also includes solder tabs which enhance PCB retention and provide strain relief for solder tail joints.

This connector series, including models 52207, 52271, and 52610, is widely used in applications such as automotive navigation and audio systems, digital cameras, home security equipment, tablet and notebook PCs, patient monitors, GPS devices, and smartphones.

Features a right angle orientation and bottom contact position for space-saving PCB design. ZIF design with slide actuator minimizes wear and simplifies installation. Phosphor bronze contacts with tin bismuth alloy plating ensure reliable electrical performance.

Nylon housing offers mechanical stability and insulation. Supports 500mA current and 50V AC voltage ratings. Operates reliably between -40°C and 85°C. Locking mechanism provides secure connection and contact retention. Solder tabs enhance PCB retention and strain relief.

Ideal for automotive, consumer electronics, datacommunications, medical, and mobile device applications. Explore more Molex FPC Connectors and related components on EnvMart to find products suited to your industrial and electronic assembly needs.
