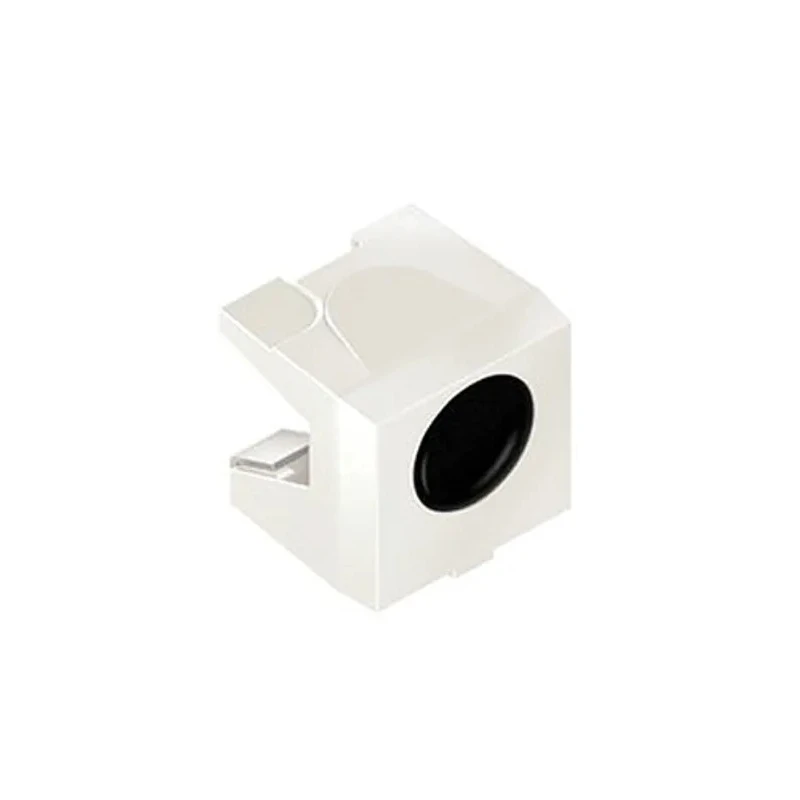

ams OSRAM Infrared Phototransistor SIDELED 120 ° Surface 2-Pin PLCC Package SFH 325 FA-3/4
Specifications
| Country of Origin | India |
|---|---|
| Brand | ams OSRAM |
| Dimensions | 4.2 x 4.2 x 3.8 mm |
| Height | 3.8mm |
| Length | 4.2mm |
| Model | SFH 325 FA-3/4 |
| Packaging | Tape & Reel |
| Width | 4.2mm |
| Mount Type | Surface |
| Series | SIDELED |
| Maximum Operating Temperature | 100°C |
| Package Type | PLCC |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 1 |
| Standards/Approvals | RoHS |
| Number of Pins | 2 |
| Typical Fall Time | 7μs |
| Peak Wavelength | 980nm |
| Spectrums Detected | Infrared |
| Angle of Half Sensitivity | 120 ° |
| Collector Current | 15mA |
| Maximum Light Current | 80μA |
| Maximum Dark Current | 50nA |
| Collector Emitter Voltage | 35V |
Key Features
- The phototransistor detects infrared spectra with a peak wavelength of 980 nm.
- It features a P-LCC-2 surface mount package with 2 pins suitable for reflow IR soldering.
- Typical rise and fall times are 7 microseconds, enabling fast response.
- Maximum collector current is 15 mA with maximum dark current 50 nanoamperes.
- Operating temperature range extends from -40°C to 100°C, ensuring durability.
- The device has a collector emitter voltage rating of 35 volts for robust operation.
- Physical dimensions are 4.2 mm length, 4.2 mm width, and 3.8 mm height.
- Packaging is supplied as tape and reel for automated assembly processes.
Product Description
ams OSRAM SFH 325 FA-3/4 is an infrared phototransistor with a SIDELED® 120° wide-angle detection in a compact surface mount PLCC package. It is optimized for efficient infrared light detection with high linearity characteristics. The device operates with a peak wavelength sensitivity at 980 nm, making it ideal for applications requiring precise infrared signal reception.
Packaged in a small 4.2 x 4.2 x 3.8 mm footprint with 2 pins, this phototransistor is designed exclusively for reflow infrared soldering processes and is supplied on tape and reel to facilitate high volume manufacturing and placement automation.
With a maximum collector current of 15 mA and maximum dark current of 50 nA, it offers excellent signal fidelity and low noise, suitable for electronic and optoelectronic components such as sensors, optical switches, and remote controls in industrial, consumer electronics, and automotive domains.
Operating temperature range from -40°C to 100°C allows for robust performance in various environmental conditions. The package follows RoHS compliance ensuring environmentally safe manufacturing standards.
The device detects infrared spectrum with a peak wavelength of 980 nm. Wide half-angle 120° for broad infrared light capturing. Fast response with typical rise and fall times of 7 microseconds. Compact 2-pin P-LCC-2 surface mount package.
Suitable for automated manufacturing with tape and reel packaging. Maximum collector emitter voltage of 35 volts for operational reliability. RoHS compliant to meet regulatory requirements.
This phototransistor is well suited for applications in industrial sensors, infrared communication, object detection, and automation technologies. The compact size and high sensitivity make it an ideal component for modern electronic design and development.
Explore the Electronics & Electricals category at EnvMart for comprehensive options in Phototransistors and infrared components for professional and industrial use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The phototransistor has a peak wavelength sensitivity at 980 nm, making it suitable for detecting infrared light.
The maximum collector current for this model is 15 mA, allowing it to handle significant signal levels.
The physical dimensions of this phototransistor are 4.2 mm in length, 4.2 mm in width, and 3.8 mm in height.
It operates within a temperature range of -40°C to 100°C, ensuring functionality in various environmental conditions.
This model is packaged in a P-LCC-2 surface mount package, designed for reflow IR soldering processes.
The typical rise and fall times are 7 microseconds, enabling fast response to infrared signals.
It is supplied on tape and reel, facilitating automated assembly processes in high volume manufacturing.
The collector emitter voltage rating is 35 volts, providing robust operational reliability.
This device is RoHS compliant, ensuring it meets environmental safety standards during manufacturing.
It is suitable for applications in industrial sensors, infrared communication, object detection, and automation technologies.
This model features 2 pins, making it compatible with various surface mount applications.
