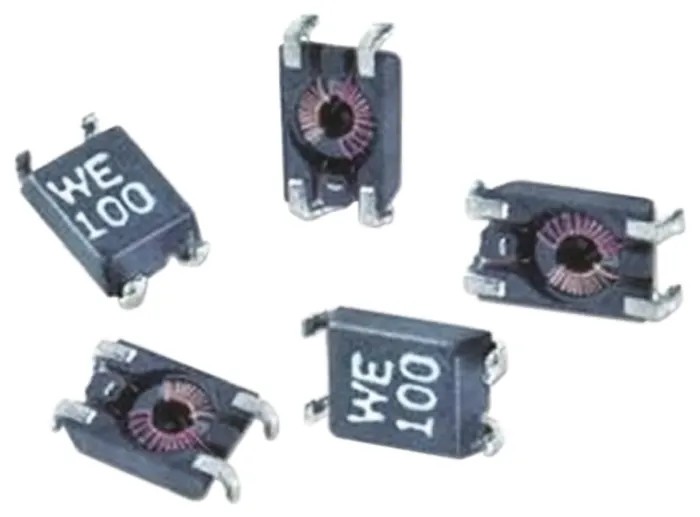

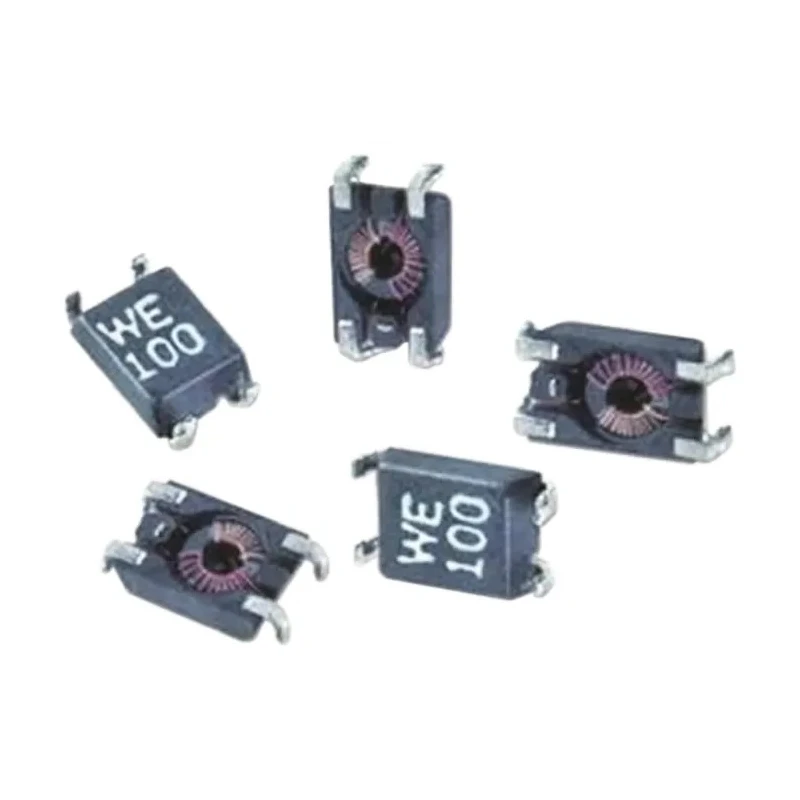

Wurth Elektronik WE-SL1 Shielded Surface Mount Common Mode Line Filter with Ferrite Core 10μH, 4 Pin, 300mA, ±50% 744212100

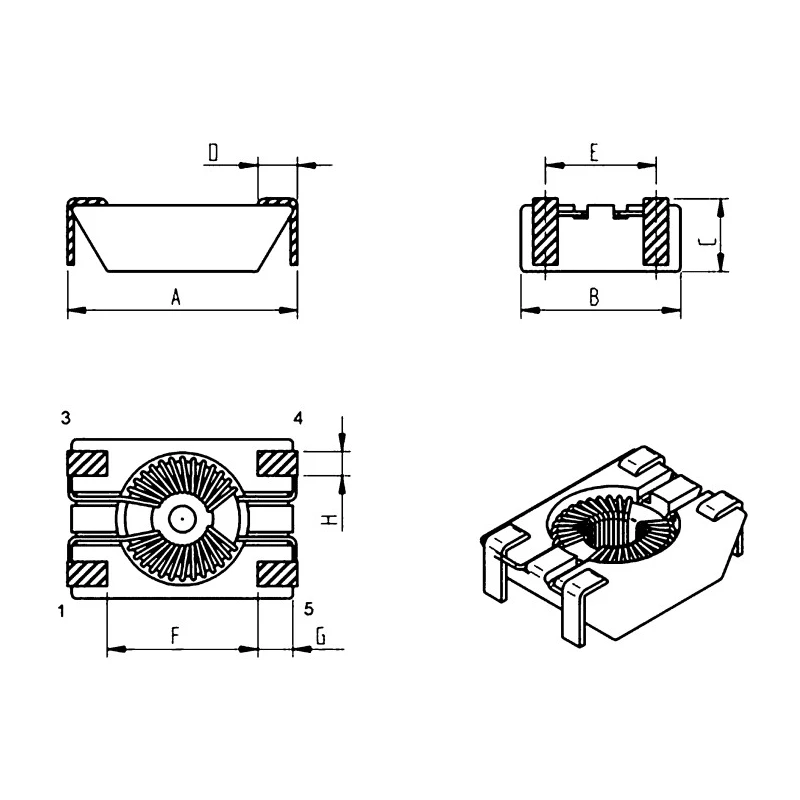

Wurth Elektronik 744212100 WE-SL1 series shielded surface mount common mode line filter features a ferrite core with 10μH inductance and ±50% tolerance. This 4-pin device is designed for low noise filtering in electronic circuits and supports a maximum DC current of 300mA. Compactly sized with a length of 6.5mm, height of 1.65mm, and depth of 3.6mm, it is optimized for surface mount applications.

The sectional winding construction enhances the stability and noise suppression capabilities, while the ferrite core provides excellent magnetic properties and shielding. Its maximum self-resonant frequency of 100kHz makes it ideal for filtering out unwanted signals in data communication lines such as CAN, USB, and firewire, as well as power lines.

This component complies with key industry standards including RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21, ensuring environmental and quality compliance. The filter is supplied in tape and reel packaging, facilitating automated PCB assembly and production efficiency. It operates within a temperature range of -40°C to 105°C to meet the demands of industrial and commercial electronics environments.

Wurth Elektronik's WE-SL1 series is widely used in industrial, automotive, electronic manufacturing, power management, and communication equipment applications. This product supports EMI noise reduction and improves signal integrity in various electronic designs.

Packaging includes tape and reel ready for insertion into automated machinery, enhancing production line efficiency. Explore more electronic components and inductors from Wurth Elektronik and related products in the Surface Mount Inductors category at EnvMart.

Features a compact 4-pin surface mount design with 6.5mm length and 1.65mm height. Constructed with a ferrite core offering effective shielding and low DC resistance of 240mΩ. Inductance tolerance is ±50% with sectional winding construction for stable performance.

Maximum self-resonant frequency is 100kHz suitable for low-frequency noise filtering. Suitable for CAN, USB, firewire, data, and power line filtering applications. Complies with RoHS, REACH, JEDEC JS709B, and IEC 61249-2-21 standards.

Product is non-moulded, with tape and reel packaging ready for automated PCB assembly. Designed to operate between -40°C and 105°C ensuring durability in harsh environments. Manufactured in China under Wurth Elektronik WE-SL1 series.
