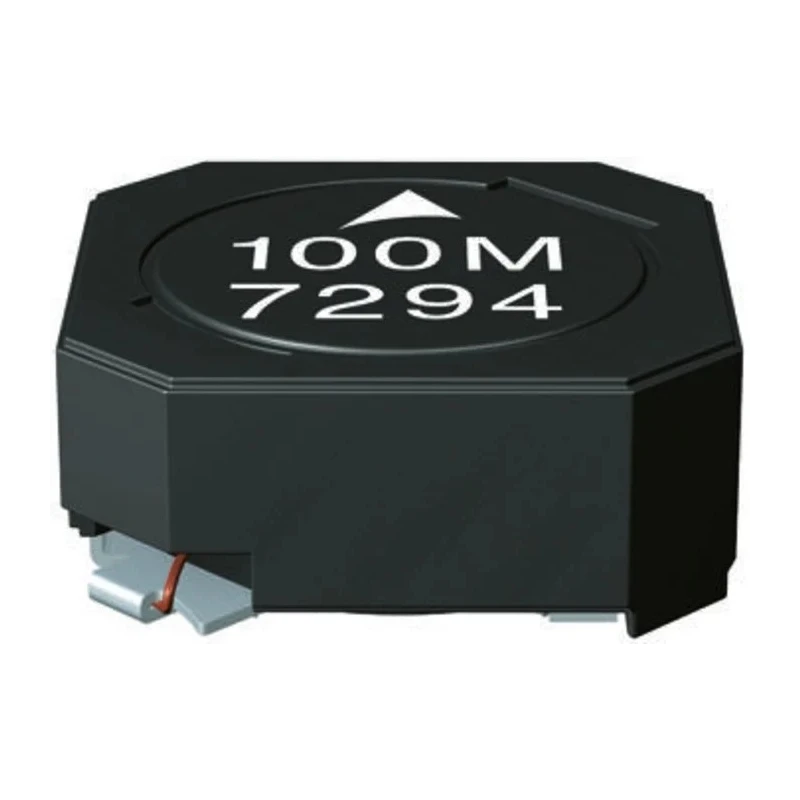

TDK Shielded Surface Mount Inductor with Ferrite Core 10μH ±20%, 1.5 A DC Current, Wirewound B82462G4103M000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 3mm |
| Length | 6.3mm |
| Model | B82462G4103M000 |
| Depth | 6.3mm |
| Packaging | Tape & Reel |
| Series | B82462-G4 |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 10μH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 1.5A |
| Pin Count | 2 |
| Maximum DC Resistance | 62mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Compact SMT size of 6.3 mm x 6.3 mm with 3 mm height for space-saving PCB layouts.
- Magnetically shielded wirewound construction reduces electromagnetic interference.
- Wide operating temperature range from -55°C to 150°C enhances reliability in harsh conditions.
- Fabricated with ferrite core material ensuring consistent inductance properties.
- Terminated with solder style compatible with reflow soldering processes.
- Complies with RoHS standards and automotive AEC-Q200 certification for quality assurance.
- Suitable for filtering power supplies and other electronics applications requiring stable inductors.
- Packaging on tape and reel supports efficient automated assembly.
Product Description
TDK B82462G4103M000 is a shielded surface mount inductor designed with a ferrite core and wirewound construction, providing 10μH inductance with ±20% tolerance and supporting a maximum DC current of 1.5 A. This component is built for high performance in electronic power and signal filtering applications.

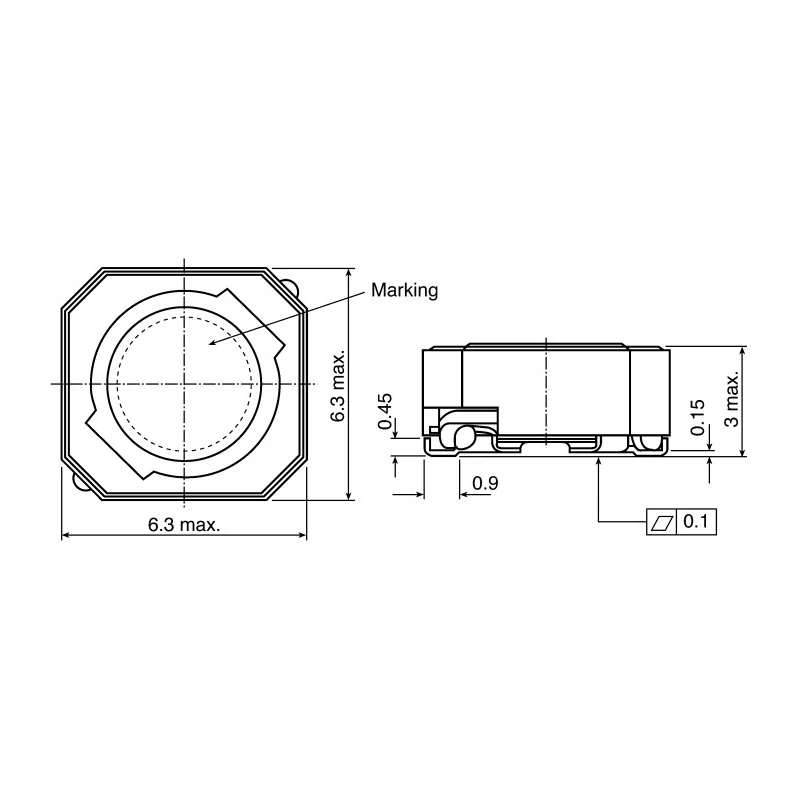

Its compact physical dimensions of 6.3 mm in length and depth, and 3 mm in height make it ideal for space-constrained PCB layouts. The device features magnetic shielding which helps reduce electromagnetic interference, thereby improving circuit reliability and minimizing noise.
Designed to operate reliably in extreme environments, the inductor has a wide operational temperature range from -55°C to 150°C. The ferrite core ensures stable inductance and helps maintain efficiency under various electrical loads.
Termination is by solder style, compatible with standard SMT reflow soldering processes, enabling streamlined manufacturing and assembly. The product complies with RoHS environmental standards and meets automotive-grade AEC-Q200 certification requirements, ensuring quality and robustness for automotive and industrial electronics.
This inductor is suitable for power supply filtering and other applications requiring stable inductance and current handling capacity. The device comes packaged in tape and reel format to facilitate automated pick-and-place assembly lines.
Compact SMT size of 6.3 mm x 6.3 mm with 3 mm height for space-saving PCB layouts. Magnetically shielded wirewound construction reduces electromagnetic interference. Wide operating temperature range from -55°C to 150°C enhances reliability in harsh conditions.
Fabricated with ferrite core material ensuring consistent inductance properties. Terminated with solder style compatible with reflow soldering processes. Complies with RoHS standards and automotive AEC-Q200 certification for quality assurance.
Suitable for filtering power supplies and other electronics applications requiring stable inductors. Packaging on tape and reel supports efficient automated assembly. Explore more Surface Mount Inductors and related electronic components in the Electronics & Electricals category on EnvMart for your industrial and commercial needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This inductor has an inductance value of 10μH with a tolerance of ±20%.
The maximum DC current rating for this unit is 1.5 A.
The dimensions of this inductor are 6.3 mm in length, 6.3 mm in depth, and 3 mm in height.
It is fabricated with a ferrite core material, which helps ensure consistent inductance properties.
The inductor operates within a temperature range of -55°C to 150°C.
This model features a solder termination style, compatible with SMT reflow soldering processes.
It complies with RoHS standards and meets automotive AEC-Q200 certification requirements.
The maximum DC resistance is 62 mΩ.
It is packaged on tape and reel, which supports efficient automated assembly.
This inductor is suitable for filtering power supplies and other electronics applications requiring stable inductance.
This inductor has a pin count of 2.
It features a wirewound construction, which contributes to its inductance properties.
