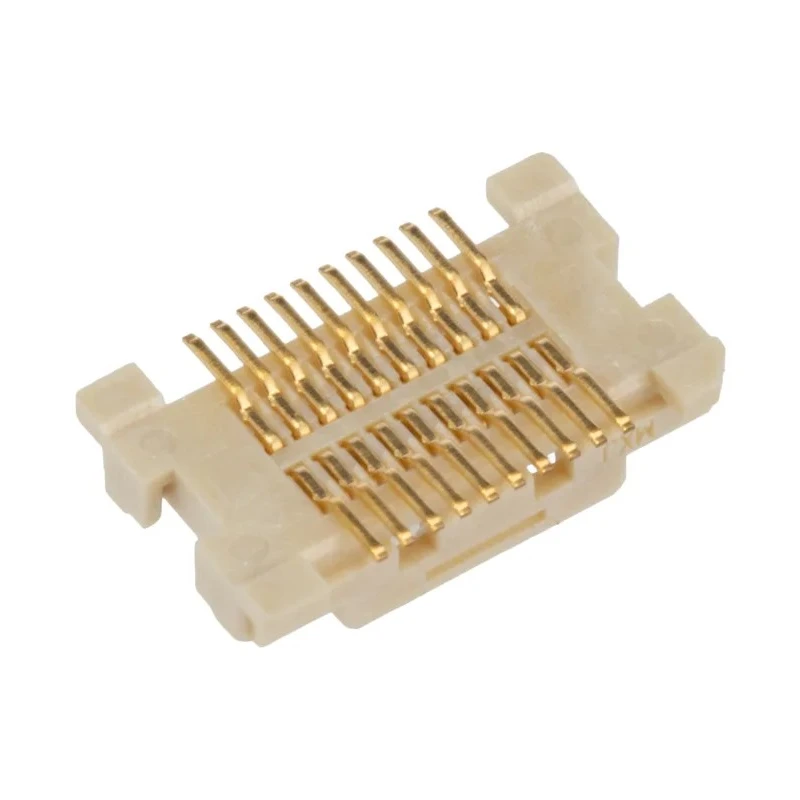

Molex SlimStack Series Straight Surface PCB Socket 20-Contact 2 Row 0.5 mm Pitch 50V 500mA 52991-0208
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 50V |
| Brand | Molex |
| Orientation | Straight |
| Current | 500mA |
| Mount Type | Surface |
| Contact Material | Bronze |
| Series | SlimStack |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Sub Type | Board-to-Board |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 0.5mm |
| Contact Plating | Gold |
| Number of Contacts | 20 |
| Contact Gender | Female |
| Connector System | Signal, Board-to-Board |
| Stacking Height | 4mm |
| Row Pitch | 2.2mm |
Key Features
- The compact 0.5 mm pitch design allows dense PCB layouts with reliable signal integrity.
- Features 20 gold-plated female contacts arranged in two rows for optimal connectivity.
- Supports a maximum current of 500 mA and voltage rating of 50 V.
- Surface mount termination enables easy and robust soldering on PCB.
- Designed for stacking heights of 3.00 mm and 4.00 mm compatible configurations.
- Operates within a temperature range of -40°C to 105°C for varied industrial environments.
- Constructed with bronze contact material and gold plating for superior conductivity and corrosion resistance.
- Complies with RoHS standards using low-halogen materials for environmentally responsible manufacturing.
Product Description
Molex 52991-0208 SlimStack Series Straight Surface PCB Socket is a high precision board-to-board connector featuring 20 female contacts arranged in two rows with a compact 0.5 mm pitch. It is specifically engineered for dense electronic assemblies requiring reliable signal connections with minimal PCB space usage.
This surface-mount receptacle utilizes solder termination providing strong mechanical and electrical stability suitable for industrial, laboratory, consumer electronics, telecommunications, and medical device manufacturing applications.
Its gold-plated bronze contacts enhance conductivity and ensure longevity under continuous electrical load up to 500 mA and voltage up to 50 V. The connector supports stacking heights of 3.00 mm and 4.00 mm, allowing flexible board mounting configurations while maintaining consistent performance.
Designed to operate effectively over a wide temperature range of -40°C to 105°C, it withstands harsh environmental conditions common in automation control systems and electronic devices.
The connector is RoHS compliant, made with low-halogen materials that reduce environmental impact and meet modern electronic safety standards.
Applications include use in automation control systems, consumer electronics connections, telecommunications equipment for signal reliability, and compact medical device connectors.
The compact 0.5 mm pitch SlimStack design optimizes PCB space. Gold-plated female contacts provide durability and conductivity. Surface mount solder termination supports robust PCB assembly. Wide operating temperatures from -40°C to 105°C extend usability.
Compatible with 3.00 mm and 4.00 mm stacking heights for versatility. Low-halogen materials ensure ecological compliance with RoHS. Conforms to industrial demands for signal integrity in dense layouts. Enables reliable connections for various industrial and scientific electronic applications.
Experience advanced PCB connectivity with Molex SlimStack Series PCB Socket for precise, durable, and compact electronic design solutions. Explore more in our Electronics & Electricals, Electronics Components categories at EnvMart.
Explore more products in our PCB Sockets category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum current rating for this model is 500 mA.
It has a voltage rating of 50 V.
The pitch size of the contacts is 0.5 mm.
This model features 20 female contacts arranged in two rows.
It supports stacking heights of 3.00 mm and 4.00 mm.
The operating temperature range is from -40°C to 105°C.
The contacts are made of bronze and are gold-plated for enhanced conductivity.
It utilizes a solder termination type for surface mounting.
Yes, it complies with RoHS standards and is made with low-halogen materials.
This socket is suitable for automation control systems, consumer electronics, telecommunications equipment, and medical devices.
The orientation of this model is straight.
The row pitch for the contacts is 2.2 mm.
